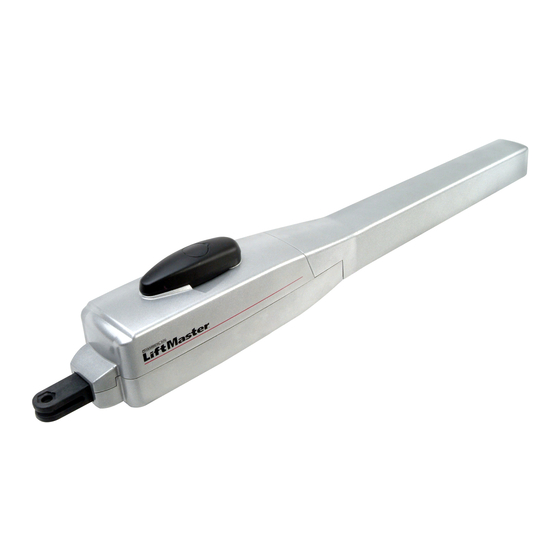

  • Page 1 Инструкция – Автоматические приводы ворот серии моделей LYN300, LYN400, SCS300 Int. Service (+49) 6838/907 172 pour service 03 87 95 39 28 für Service 06838/907 172 voor service 020 684 7978 for service (+44) 0845 602 4285 www.liftmaster.com Chamberlain GmbH Email: info@chamberlain.com Alfred-Nobel-Str. 4 66793 Saarwellingen...
  • Page 2 6,0 m LYN300 LYN300 LYN400 LYN400 5,0 m 4,0 m 3,0 m 2,0 m 1,0 m 250 kg 180 kg 160 kg 140 kg Wing Weight 4.0 m SCS300 3.5 m 3.0 m 2.5 m 2.0 m 1.5 m 1.0 m 0.5 m 250 kg 180 kg...

  • Page 3: Table Of Contents

    TOPIC PAGE SAFETY RULES ..................1 TECHNICAL DATA .

  • Page 4: Safety Rules

    WARNING / ATTENTION IMPORTANT FITTING AND OPERATING INSTRUCTIONS PLEASE START BY READING THESE IMPORTANT SAFETY RULES This safety alert symbol means „Caution“ - failure to comply with such an instruction involves risk of personal injury or damage to property. Please read these warnings carefully. This gate drive mechanism is designed and tested to offer appropriately safe service provided it is installed and operated in strict accordance with the following safety rules.

  • Page 5: Technical Data

    TECHNICAL DATA Voltage: 230V~ ±10% 50-60Hz Transformer: 230V/24V, 150VA Output Motor: 24V/DC Consumption max.: max. 400W (in operation) Consumption Standby: max. 4 Watt (without accessories) Supply accessories: 24VDc / 600mA max. Operating temperature: -25ºC ÷ 55ºC Modes: Standard, Automatic Measurements: 250x75mm (without box) Measurements Box: ca.

  • Page 6: Recommended Procedure

    RECOMMENDED PROCEDURE: Fasten exterior installation box to wall, after previously measuring required distances and establishing correct position of drill-holes (Hardware not included). Baseplate for transformer is already pre-assembled (A). Push fastening clips in designated holes (B) . Push controlboard on to fastening clips (C). Fasten transformer on to baseplate using the large screw and large washer (D).

  • Page 7: Wiring Of Control / Summary / Cables And Wiring

    WIRING OF CONTROL / SUMMARY a) start with 230Volts supply cable. Run cable through large cable bushing on the lefthand side. b) Attach cable eye to ground wire. Then connect ground wire to base plate with washer and nut (exactly as shown in picture detail). Connect all other cables to control.

  • Page 8: Wiring Diagramm

    WIRING DIAGRAM Model 203285 RADIO MODULE + + + 230VAC external Model battery CM475 Ω LYN/SCS Relay Closed position 5/16 en...

  • Page 9: Description / Function Of Terminals

    DESCRIPTION OF TERMINALS DESCRIPTION OF LED´S (LIGHT EMITTING DIODE) DESCRIPTION FUNCTION DESCRIPTION COLOUR STATUS connector L 230V supply Stop green Stop Switch connector N 230V supply ON: Stop Active OFF: OK (Requires wire bridge if 30VDC connector for an external battery no switch is connected) Motor MASTER motor 1 (master opens fi...

  • Page 10: Optional Accessories

    OPTIONAL ACCESSORIES (also refer to wiring diagram) RADIO TRANSMITTERS MODELS (OPTIONAL): TX2EV, TX4EV, TX4UNI (remote controls), 747EV (wireless keypad), 128EV (2-channel wall control) FLASHING LAMP (OPTIONAL) MODEL: FLA24-2, FLA1-LED A fl ashing lamp can be connected to the control board (Terminals: 24 V / 150 mA). It indicates gate movement. The fl ashing light should be mounted as high as possible and in good clear view.

  • Page 11: Photocells

    The photocell is mounted on the wall using small screws and wall plugs. To enable the “Automatic Closing” function, the Chamberlain failsafe photocell must be installed. The Chamberlain failsafe system + + + (2-cable system) has small LEDs (light) that can be seen from the outside on both sides to indicate the status of the photocell.

  • Page 12: Program Internet Gateway My Q / Door Monitor

    PROGRAM INTERNET GATEWAY myQ Using the RESET -Button on the control board 1. Connect the ethernet cable to the LiftMaster Internet Gateway and the router. 2. Connect power to the LiftMaster Internet Gateway. 3. Create an online account on the latest Liftmaster MyQ smartphone RADIO MODULE application or on www.liftmaster.eu.

  • Page 13: Loop Detector Usage

    LOOP DETECTOR Switch on DIP LOOP / EDGE Loop detectors react to metal and the most common use is for cars or trucks but not for bikes or pedestrians. Exit loop / Gate Opening Loop A An exit loop is behind the gate and opens the gate when closed, keeps it open or re-opens the gate.

  • Page 14: Dip Switch Settings

    DIP SETTINGS 1 / 2 Motor Select if 1 or 2 motors are connected to the control board OFF: 2 Motors connected 1 Motor connected OPEN/STEP Changes the programming and reaction of the gate on commands. For the use with loop detectors please refer to the loop detector instruction fi...

  • Page 15: Initial Operation Basic Setting

    INITIAL OPERATION BASIC SETTING Proceed step by step. If you are not sure, start again at the beginning. Take suffi cient time to make these settings. 1. Are all components required for operation connected? Motors, photocells, safety contact strip, stop switch. 2.
  • Page 16 PROGRAMMING TRAVEL DISTANCES “SIMPLE I” NOTE: End stops must be available in CLOSED and OPEN modes. 1. Wings must be closed 2. Press P1 until wing / motor 1 starts opening (learn-LED fl ashes) Automatic programming starts (slow travel) Wing 1 moves to the stop in OPEN position Wing 2 moves to the stop in OPEN position Then wing 2 moves to the stop in CLOSE position.

  • Page 17: Timer To Close (Auto-Close)

    COMPLETION OF INSTALLATION / PROGRAMMING Once the travel distances are programmed, the remote controls can be programmed as well. (Refer to RADIO AND RADIO PROGRAMMING ). 1. You can now let the door run 2 complete cycles by pressing a key on the remote or a connected switch and observe the process. Close the door again, WITHOUT making another setting.

  • Page 18: Indication Of The Diagnosis Led

    INDICATION OF THE DIAGNOSIS LED The LED diagnostics show the fi rst upcoming issue. If several issues are existing the LED diagnostics may not show them. Indication Description Remedy 1x blinking Motor 1 has insuffi cient connection to control board Cables not wired or badly connected.

  • Page 19: Faqs

    FAQs Pressing P1, P2 and P3 does not show any reaction DIP “RADIO” must be off The gate opener doesn’t respond at all; no LED is Possibly power failure. 1. Check conductor and zero conductor. 2. Check house fusing. Immediately after the gate has started moving, it Obstacle in area of gate.
