Summary of Contents for Chamberlain LA500UL

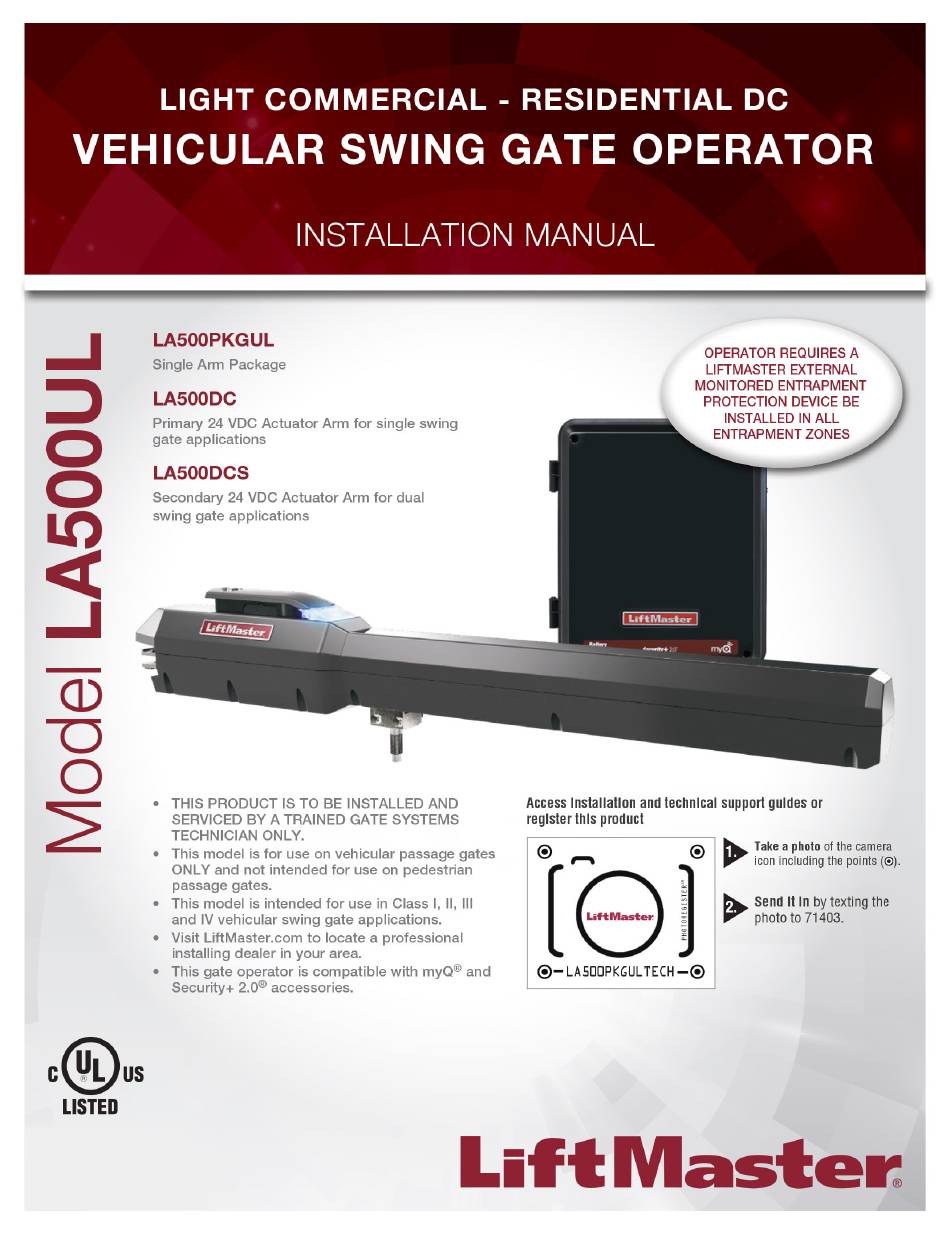

- Page 1 For more information: www.devancocanada.com or call toll free at 855-931-3334...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY ACCESSORY WIRING Safety Symbol and Signal Word Review ...........2 External Control Devices .................31 Usage Class ....................3 Maglock ....................32 UL325 Entrapment Protection Requirements ...........3 Miscellaneous Wiring ................32 Safety Installation Information ..............4 EXPANSION BOARD Gate Construction Information ..............5 Expansion Board Overview ..............33 INTRODUCTION Auxiliary Relays 1 and 2 .................34... -
Page 3: Usage Class
SAFETY Usage Class Class I - Residential Vehicular Gate Operator A vehicular gate operator (or system) intended for use in garages or parking areas associated with a residence of one-to four single families. Class II - Commercial/General Access Vehicular Gate A vehicular gate operator (or system) intended for use in a commercial location or building such as a multi-family housing unit (five or more single family units), hotel, garages, retail store, or other buildings... -
Page 4: Safety Installation Information
SAFETY Safety Installation Information 1. Vehicular gate systems provide convenience and security. Gate systems 9. The Stop and/or Reset (if provided separately) must be located in the are comprised of many component parts. The gate operator is only one line-of-sight of the gate. Activation of the reset control shall not cause component. -
Page 5: Gate Construction Information
SAFETY Gate Construction Information Vehicular gates should be installed in accordance with ASTM F2200: Standard Specification for Automated Vehicular Gate Construction. For a copy, contact ASTM directly at 610-832-9585 or www.astm.org. General Requirements Vehicular Horizontal Swing Gate Gates shall be constructed in accordance with the provisions The following provisions shall apply to Class I, Class II and Class III given for the appropriate gate type listed, refer to ASTM F2200 vehicular horizontal swing gates:... -
Page 6: Introduction
INTRODUCTION Carton Inventory NOT SHOWN: Documentation packet and hardware bag Optional Accessories (not provided) Large Metal Control Box (Model LA500CONTXLMUL) Ideal for installations that require additional room in the control box (batteries not included). Large Metal Control Box for Solar Applications (Model XLSOLARCONTUL) Required for solar installations (batteries not included). -
Page 7: Operator Specifications
INTRODUCTION Operator Specifications Usage Classification Class I, II, III, & IV Main AC Supply 120 Vac, 2 Amps (8 Amps including Accessory Outlets) 240 Vac, 1 Amp System Operating Voltage 24 Vdc Transformer Run / Battery Backup Accessory Power 24 Vdc, 500mA max. for ON + SW (switched) Solar Power Max 24 Vdc at 60 watts max. -
Page 8: Site Preparation
INTRODUCTION Site Preparation Check the national and local building codes BEFORE installation. Trench Additional Accessories Trench and install conduit. Before trenching, contact underground utility The vehicle loops allow the gate to stay open when vehicles are locating companies. Conduit must be UL approved for low and high obstructing the gate path. -
Page 9: Installation
INSTALLATION To AVOID damaging gas, power or other underground utility lines, ALWAYS wear protective gloves and eye protection when changing contact underground utility locating companies BEFORE digging more the battery or working around the battery compartment. than 18 inches (46 cm) deep. Installation Tips Do's Weld a horizontal bar across entire gate on any installation for... -
Page 10: Step 1 Position The Brackets
INSTALLATION Step 1 Position the Brackets NOTE: The ideal installation measurements are A = 7-3/4" (19.7 cm) and B = 8- 1/2" (21.6 cm). If different measurements are used, the sum of A and B cannot If this operator is a replacement for a Miracle-One™ operator, use the be greater than 18"... -
Page 11: Step 2 Attach The Brackets
INSTALLATION Step 2 Attach the Brackets 1. Insert the key into the lock and turn it 180 degrees counterclockwise. 5. Attach the operator to the post bracket with the bolt, mounting plate, Turn the release lever 180 degrees counterclockwise. The operator is and nut as shown. -
Page 12: Step 3 Install The Control Box
INSTALLATION Step 3 Install the Control Box Standard Control Box The control box MUST be mounted within 5 feet (1.52 m) of the gate operator. Mount the control box as high as possible for best radio reception. Make sure the control box is level. NOTE: The expansion board DOES NOT need to be removed for a wall or column mount installation. - Page 13 INSTALLATION Large Metal Control Box Wall or Column Mount The control box MUST be mounted within 5 feet (1.52 m) of the gate operator. Mount the control box as high as possible for best radio reception. Make sure the control box is level. NOTE: The Large Metal Solar Control Box (Model XLSOLARCONTUL) does not have the electrical outlets or the expansion board shown in the images.
-
Page 14: Step 4 Earth Ground Rod
INSTALLATION To reduce the risk of SEVERE INJURY or DEATH: ANY maintenance to the operator or in the area near the operator ALL electrical connections MUST be made by a qualified individual. MUST NOT be performed until disconnecting the electrical power (AC DO NOT install ANY wiring or attempt to run the operator without or solar and battery) and locking-out the power via the operator power consulting the wiring diagram. -
Page 15: Step 6 Dual Gate Setup
INSTALLATION Step 6 Dual Gate Setup There are two options for dual gate communication: wired or wireless. Follow the directions according to your application. Do not use wired and wireless communication simultaneously. Wired dual gate applications will have a longer battery standby time than wireless applications. Wireless dual gates will require the installation of two control boxes, one for each operator arm. - Page 16 INSTALLATION Wired Setup Install a second operator arm: Install a second operator arm by following installation steps 1-2. Install the extension cable and junction box: Before digging, contact local underground utility locating companies. 1. Trench across driveway to bury the extension cable. Use PVC conduit to prevent damage to cables.
- Page 17 INSTALLATION Wire the secondary operator arm to the control board: 1. Choose a knockout in the bottom of the control box. 2. Insert the extension cable through the watertight connector. 3. Insert the extension cable and watertight connector into the knockout.
-
Page 18: Step 7 Install Entrapment Protection
INSTALLATION To prevent SERIOUS INJURY or DEATH from a moving gate: ALL gate operator systems REQUIRE two independent entrapment Locate entrapment protection devices to protect in BOTH the open and protection systems for each entrapment zone. close gate cycles. Entrapment protection devices MUST be installed to protect anyone Locate entrapment protection devices to protect between moving gate who may come near a moving gate. -
Page 19: Wire Entrapment Protection Devices
INSTALLATION Wire Entrapment Protection Devices There are three options for wiring the entrapment protection devices depending on the specific device and how the device will function. Refer to the specific entrapment protection device manual for more information. These entrapment protection device inputs are for monitored devices, which include pulsed photoelectric sensors, resistive edge sensors, and pulsed edge sensors. -
Page 20: Step 8 Power Wiring
INSTALLATION Step 8 Power Wiring OPERATOR POWER SOURCE The standard control box can be wired for either 120 Vac or 240 Vac. 120 VAC Factory default is 120 Vac. The Large Metal Control Box (XLM) can be Wire Gauge 14 350 feet (107 m) wired for 120 Vac (default). - Page 21 INSTALLATION Large Metal Control Box To use solar panels with the Large Metal Control Box (Model XLSOLARCONTUL) skip the steps below and refer to the Solar Panels section in the Appendix. 1. Unplug the J15 plug labeled BATT(-)(+) DC(-)(+) on the control board by squeezing the plug and pulling it from the control board. 2.
-
Page 22: Step 9 Finish Installation
INSTALLATION Step 9 Finish Installation 1. Turn the release lever clockwise 180° back to the engaged position. This engages the motor. The illustration shows the release lever in the engaged position. 2. Turn the key clockwise 180°. This locks the release lever. The operator is now engaged. - Page 23 ADJUSTMENT Initial Limits and Force Adjustments For dual gate applications the limits will have to be set for each operator. The gate MUST be attached to the operator before setting the limits and force. If a mistake is made while programming the limits press the reset button to start over.
-
Page 24: Obstruction Test
ADJUSTMENT Fine Tune the Force Once the initial limits have been set, the REVERSAL FORCE DIAL on the control board is used for fine tuning the force where wind or environmental changes may affect the gate travel. The REVERSAL FORCE DIAL is set to minimum at the factory. -
Page 25: Programming
PROGRAMMING Remote Controls (Not Provided) ® A total of 50 Security+ 2.0 remote controls or KPW250 keypads and 2 keyless entries (1 PIN for each keyless entry) can be programmed to the operator. When programming a third keyless entry to the operator, the first keyless entry will be erased to allow the third keyless entry to be programmed. -
Page 26: Liftmaster Internet Gateway (Not Provided)
PROGRAMMING LiftMaster Internet Gateway (not Erase All Codes provided) 1. Press and release the LEARN button (operator will beep and green XMITTER LED will light). To program the operator to the LiftMaster Internet Gateway: 2. Press and hold the LEARN button again until the green XMITTER LED Using the learn button on the opertaor's control flashes and then release the button (approximately 6 seconds). -
Page 27: Operation
OPERATION Gate operator setup examples The following are example setups for the gate operator. Your specific site requirements may be different. Always setup the operator system to the site requirements, including all necessary entrapment protection devices. RESIDENTIAL: One to four residential homes sharing a gated entrance/exit, allowing vehicle access trumps security concerns COMMERCIAL/GENERAL ACCESS: A residential community (more than four homes) having one or more gated entrances/exits, allowing vehicle access trumps security concerns COMMERCIAL: Business site where security (gate closed) is important... -
Page 28: Control Board Overview
DIAGNOSTICS Display: The diagnostics display will show the operator type, firmware version, and codes. The operator type will display as "LA" followed by a "50" which indicates the operator type as LA500UL. The firmware version will show after the operator type, example "1.2". -
Page 29: Manual Release
OPERATION Manual Release In case of a power failure, the operator can be disengaged from the gate. With an operator, the release action may sometimes feel stiff/jerky, which is normal and has no effect on function. NOTE: It is normal for the operator to run slow right after a disconnect or complete loss of AC/ battery power (the operator will need to run a complete open and close cycle). -
Page 30: Operator Alarm
OPERATION Operator Alarm If a contact sensor detects an obstruction twice consecutively the alarm will sound (up to 5 minutes) and the operator will need to be reset. When the inherent force of the operator (RPM/current sensor) detects the following (twice consecutively) the alarm will sound (up to 5 minutes) and the operator will need to be reset. -
Page 31: Accessory Wiring
ACCESSORY WIRING All control wiring used to connect external devices to Class 2 circuits of the operator must be (QPTZ) Power-Limited Circuit Cables, Type CL2, CL2P, CL2R, or CL2X or other cable with equivalent or better electrical, mechanical, and flammability ratings. External control devices EXIT (2 Terminals) This input is a soft open command (maintained switch does not override... -
Page 32: Maglock
ACCESSORY WIRING Maglock LOCK (2 Terminals, N.C. and COM) Relay contact output, Normally - closed (N.C.) output for maglocks. Relay activates prior to motor activation and during motor run. Relay is off when motor is off. Miscellaneous wiring Single button control (SBC) (2 Terminals) Gate command sequence - Open, Stop, Close, Stop,... -
Page 33: Expansion Board
EXPANSION BOARD To AVOID damaging the circuit board, relays or accessories, DO NOT connect more than 42 Vdc (32 Vac) to the AUX relay contact terminal blocks. Expansion board overview QUICK CLOSE switch: EYE/EDGE switches: OFF: No change to the gate's normal operation. Set the EYE/EDGE switches as needed to obtain the desired OPEN or CLOSE functionality. -
Page 34: Auxiliary Relays 1 And 2
EXPANSION BOARD Auxiliary Relays 1 and 2 Normally Open (N.O.) and Normally Closed (N.C.) relay contacts to control external devices, for connection of Class 2, low voltage (42 Vdc [34 Vac] max 5 Amps) power sources only. Function of relay contact activation determined by switch settings. SWITCH SETTINGS AUX RELAY AUX RELAY 1... -
Page 35: Wiring Accessories To The Expansion Board
EXPANSION BOARD Wiring accessories to the expansion board Refer to the chart below and the corresponding image for a description of the expansion board inputs. Wireless edge Connection for wireless edge receiver Entrapment Protection Device EYES ONLY Input: Open or Close Direction Photoelectric Sensors, Close: reverses fully, Open: reverses 4 Inputs (4 terminals total), Open or seconds Close Direction based on switch... -
Page 36: Maintenance
MAINTENANCE IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of SEVERE INJURY or DEATH: READ AND FOLLOW ALL INSTRUCTIONS. Test the gate operator monthly. The gate MUST reverse on contact with an object or reverse when an object activates the noncontact ANY maintenance to the operator or in the area near the operator sensors. -
Page 37: Troubleshooting
TROUBLESHOOTING To protect against fire and electrocution: For continued protection against fire: DISCONNECT power (AC or solar and battery) BEFORE installing or Replace ONLY with fuse of same type and rating. servicing operator. Diagnostic Codes NOTE: When cycling or disconnecting power (ac/dc) to the control board, it is recommended that you unplug the J15 plug. To View the Codes The codes will show on the diagnostic display. -
Page 38: Diagnostic Codes Table
TROUBLESHOOTING Diagnostic Codes Table Some codes are saved in the code history and some are not. If a code is not saved it will briefly appear on the display as it occurs, then disappear. External Entrapment Inherent Entrapment LiftMaster System Installed System Informational Protection... - Page 39 TROUBLESHOOTING Code Meaning Solution Saved IF an obstruction occurred, no action required. If an obstruction did NOT Wireless edge triggered occur, check inputs and wiring. CLOSE EYE/INTERRUPT triggered, causing reversal, preventing close, or resetting TTC CLOSE EDGE triggered, causing reversal, NO IF an obstruction occurred, no action required.
-
Page 40: Control Board Leds
TROUBLESHOOTING Control Board LEDs STATUS LEDS INPUT LEDS INPUT OFF state SBC INPUT Input inactive POWER AC charger or Solar power Input active available BLINK Input active on other operator BATT Not charging FIRE DEPT INPUT Input inactive CHARGING Three stage battery charging Input active TIMER The timer is disabled... -
Page 41: Troubleshooting Chart
TROUBLESHOOTING Troubleshooting Chart SYMPTOM POSSIBLE CAUSES SOLUTIONS Operator does not a. No power to control board a. Check AC and battery power run and diagnostic b. Open fuse b. Check fuses display not on. c. If on battery power only, low or dead c. - Page 42 TROUBLESHOOTING SYMPTOM POSSIBLE CAUSES SOLUTIONS Gate opens, but a. Open control active a. Check all Open inputs for an active input will not close with b. Vehicle loop detector active b. Check all vehicle detector inputs for an active detector transmitter or c.
- Page 43 TROUBLESHOOTING SYMPTOM POSSIBLE CAUSES SOLUTIONS Expansion board a. Defective main board to expansionboard a. Check main board to expansion board wiring. If required, replace wire function not wiring cable. controlling gate. b. Incorrect input wiring to expansion board b. Check wiring to all inputs on expansion board. c.
-
Page 44: Appendix
APPENDIX Installation Types Step 1 Position the Brackets If your application is Push-to-Open, refer to the illustrations for the correct dimensions for step 1. -
Page 45: Step 8 Solar Panels
APPENDIX Step 8 Solar Panels SOLAR PANELS ARE NOT PROVIDED. SEE ACCESSORIES. Solar Application Requirements 33AH Battery Requirements: 7AH Battery Requirements: Large Metal Control Box for Solar Applications (Model Standard Control Box for Solar Applications (Model LA500CONTUL) XLSOLARCONTUL) A minimum of two 10W solar panels in series (Model SP10W12V) A minimum of two 10W solar panels in series (Model SP10W12V) A maximum of six 10W solar panels (Model SP10W12V). - Page 46 APPENDIX Solar usage guide Typical System Standby Battery Current Consumption (mA) System voltage Main board with no radios programmed 2.7 mA ® One or more LiftMaster remote controls programmed +1 mA ® device or wireless dual gate programmed +2.4 mA Expansion board +11.1 mA Per loop detector LOOPDETLM (up to 3 loop detectors can be plugged in to the expansion board)
- Page 47 APPENDIX Position The location of the panel(s) is critical to the success of the installation. In general, the panel(s) should be mounted using the provided angle bracket facing due south. The solar panel(s) should be mounted in an area clear of all obstructions and shade from buildings and trees. If the panel(s) is not casting a shadow, the battery is not being charged.
- Page 48 APPENDIX Wire the Batteries Solar panel applications require the Solar Harness Kit model K94-37236 (see Accessories). Wire the solar panels...
-
Page 49: Limit Setup With A Remote Control
APPENDIX Limit Setup with a Remote Control To set the limits using a remote control, first you will need a 3-button remote control that has been programmed for OPEN, CLOSE, and STOP. Refer to the Programming section. Initial Limits and Force Adjustment Adjust the limits For dual gate applications the limits will have to be set for each If the limits have already been set the operator will exit the limit setting... -
Page 50: Sams Wiring With The Relays Not Energized
APPENDIX SAMS Wiring with the Relays Not Energized The Sequenced Access Management System (SAMS) are programmable relays used to determine the order in which more than one control device operates across an opening. For example, where a swing gate and a barrier gate are both used, the swing gate may be set to open all the way before the barrier gate activates. -
Page 51: Repair Parts
REPAIR PARTS STANDARD CONTROL BOX GATE OPERATOR ARM ITEM PART NUMBER DESCRIPTION ITEM PART NUMBER DESCRIPTION K74-39307-1 Standard Plastic Control Box Only LA500DC Primary Arm K76-36296-1 Outlet KSWG-0623 Rear Connector with Pin K75-36635 Control Board Bracket 41ASWG-0119 Release Keys K1D8388-1CC Control Board Q230 Steel Bracket Mounting Plates... -
Page 52: Wiring Diagram
WIRING DIAGRAM Standard Control Box To protect against fire and electrocution: DISCONNECT power (AC or solar and battery) BEFORE installing or servicing operator. For continued protection against fire: Replace ONLY with fuse of same type and rating. -
Page 53: Large Metal Control Box
WIRING DIAGRAM Large Metal Control Box To protect against fire and electrocution: DISCONNECT power (AC or solar and battery) BEFORE installing or servicing operator. For continued protection against fire: Replace ONLY with fuse of same type and rating. -
Page 54: Accessories
ACCESSORIES Entrapment Protection Remote controls LiftMaster monitored through beam LiftMaster offers a variety of LiftMaster remote controls to satisfy your photoelectric sensor application needs. Single-button to 4-button, visor or key chain. The following Models LMTBUL and LMTBU remote controls are compatible with operators manufactured by LiftMaster after 1993. - Page 55 ACCESSORIES Miscellaneous Wireless commercial keypad Remote antenna extension kit Durable wireless keypad with blue LED backlight metal keypad, zinc-alloy metal front cover and 5 year 9V The remote antenna extension kit allows the ® lithium battery. Security+ 2.0 compatible. antenna to be remotely installed. Model KPW250 Model 86LM LiftMaster Cloud™...
-
Page 56: Warranty
LiftMaster (“Seller”) warrants to the first purchaser of this product, for the structure in which this product is originally installed, that it is free from defect in materials and/or workmanship for a period of 2 Year from the date of purchase [and that the LA500UL is free from defect in materials and/or workmanship for a period of 2 Year from the date of purchase].
