Summary of Contents for Zodiac TRi-XO CROSSOVER

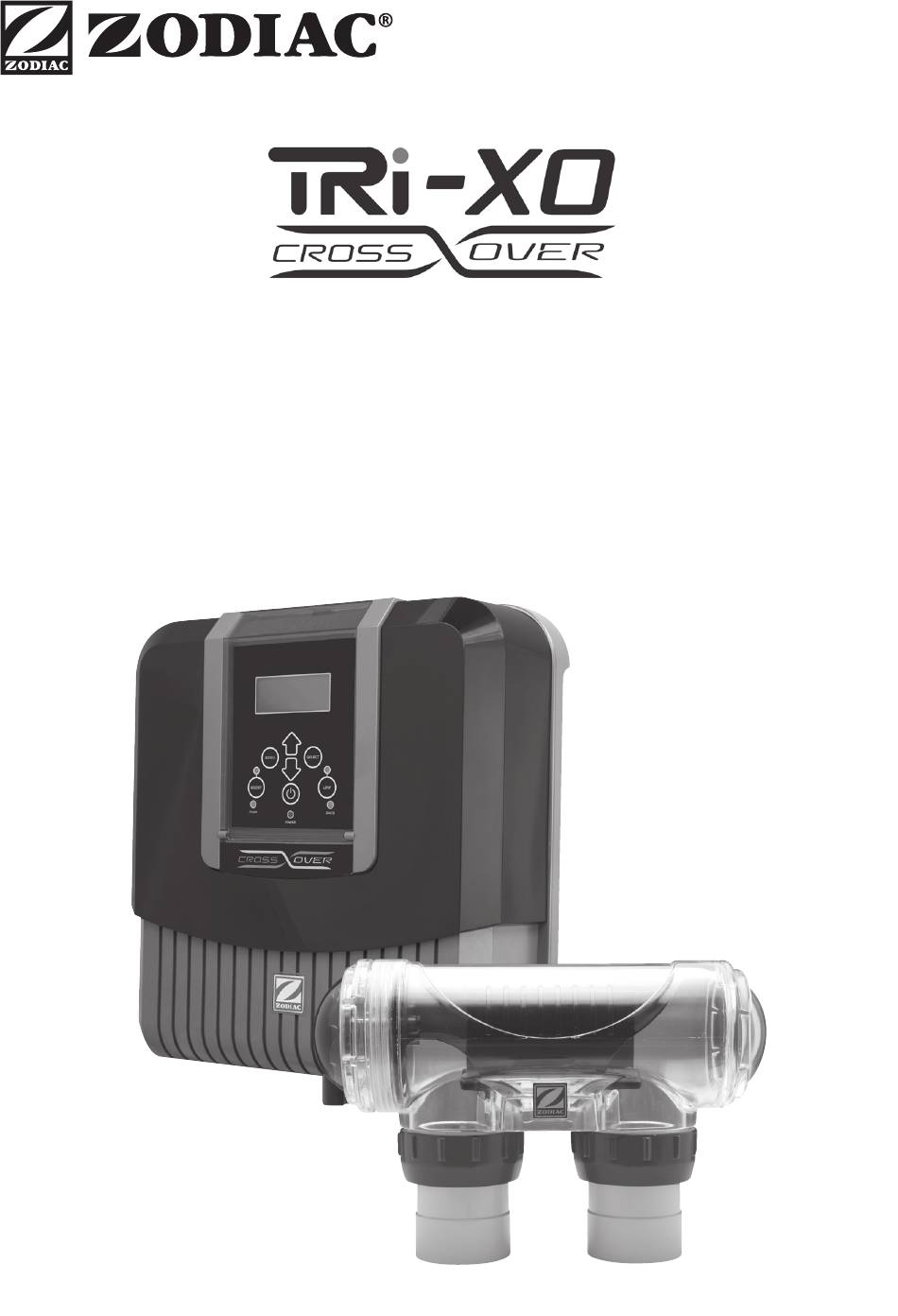

- Page 1 CHLORINATOR USE WITH SALT AND MINERAL SALTS...
-
Page 2: Read And Follow All Instructions
Important Safety Instructions READ AND FOLLOW ALL INSTRUCTIONS All electrical work must be performed in accordance with AS/NZ 3000. When installing and using this electrical equipment, basic safety precautions should always be followed, including the following: DANGER To reduce the risk of severe injury or death, do not remove the suction fittings of your spa or hot tub. - Page 3 WARNING To Reduce the Risk of Injury - a) The water in a spa should never exceed 40°C. Water temperatures between 38°C and 40°C are considered safe for a healthy adult. Lower water temperatures are recommended for young children and when spa use exceeds 10 minutes.
- Page 4 WELCOME TO ZODIAC Congratulations on your purchase of the Zodiac TRi-XO CrossOver Chlorinator. TRi-XO allows users to select between using normal pool salt or mineral salt blends. Simply select the type of salt you are using from the start up screen to program it into the software.
- Page 5 INSTALLATION GUIDE POSITIONING THE POWER PACK 1. Locate a suitable space for the power pack bracket. It should be installed no further than 1.8 metres away from the cell - ideally in a filtration shed or close to the filtration equipment. PLEASE NOTE: If fixing to a post it must have a waterproof panel fitted (behind the unit), at least 450mm wide and 470 mm high.
-
Page 6: Navigation Buttons
NAVIGATION BUTTONS corresponding colours and pins, then fit the end cap. (Note: Either RED wire can be connected to either RED pin on the electrode.) 8. Plug your pool pump into the outlet socket in the bottom of the TRi-XO (this will allow the TRi-XO timer to control the filtration times) 9. - Page 7 SELECTING THE RIGHT SALT TYPE At start up it is necessary to select the correct salt type being used in the pool. If using salt or using a mineral blended salt simply select the correct type as shown on the screen once the unit is powered up. 1.Use to scroll to the right selection 2.
-
Page 8: Setting The Clock
USING THE BUILD-IN CLOCK AND TIMERS When it comes to chlorination, every pool is different. To get what’s right for you, you will need to set the unit’s clock and timers. SETTING THE CLOCK 1. Press the button to enter the MAIN MENU. 2. -
Page 9: Programming The Timers
After this time the TRi-XO will switch to ‘OFF’. THE TIMERS • The Zodiac TRi-XO chlorine generator comes with two inbuilt timers that switch the filtration and chlorination system on and off as required. •... - Page 10 USING THE BUILD-IN CLOCK AND TIMERS To program the timer: 1. Press the button. 2. Press button to move arrow to ‘SET TIMERS’. 3. Press to enter the ‘SET TIMERS’ menu. 4. Press to select the timer you wish to set. (Timer 1 or Timer 2) 5.
-
Page 11: External Time Clock
At times, it may be desirable to control chlorine generation using an external time switch. If the chlorine generator is turned ON, and the external timer fails to switch the mains power off within 30 hours, the Zodiac TRi-XO will automatically stop chlorinating in order to prevent over chlorination. - Page 12 CHLORINE OUTPUT LEVELS SETTING THE CHLORINE OUTPUT • The amount of chlorine required by your pool is dependent on a number of factors including the size of the pool, the number of users and the climate. • Output will appear as a percentage on the screen readout.
- Page 13 CORRECT SETTINGS FOR YOUR POOL...
-
Page 14: Connecting To A Controller
CONNECTING TO A CONTROLLER You must set the controller type on the TRi-XO before making the wiring connection. SETTING THE CONTROLLER (To be done before making a wiring connection) Switch power to the TRi-XO unit on. Wait for the start-up sequence to complete. Press the button. -
Page 15: Important Warning
CONNECTING TO A CONTROLLER ATTENTION JANDY ‘REV L’ OR LATER USERS It is critical that the controller setting be set to the correct Zodiac or Jandy controller designation. There are a number of different revisions locked into the TRi-XO software. Please see the controller user manual to determine the model and/or revision you are using. - Page 16 6. Attach a cable tie to the controller cable as shown in the diagram. The wiring colour codes are outlined below: Depending on the make of the Controller, make the following wiring connections: Polaris EOS / Jandy / Zodiac Aqualink / Aqualink TRi • Green wire (0V) to ‘0V’ terminal on the TRi-XO •...
- Page 17 CONNECTION TO CONTROLLER FOR POOL/SPA COMBINATIONS • To connect a Zodiac TRi-XO unit to Pool or Spa Valves, you will need to make a “splice” into the control lines from the Controller, located inside the controller itself.
-
Page 18: Manual Setting
TRi is being controlled by an external controller. AUTOMATIC SETTING • The Zodiac TRi-XO can be connected to the valves of an automatic pool/spa system. • When the input from the valves is set to ‘Low’ the TRi-XO will automatically revert to ‘Low’... - Page 19 THE BOOST SETTING • At times your pool may require a larger than normal application of chlorine. The Boost function is used to rapidly add chlorine. • In ‘BOOST’ or “Superchlorinate” mode, output settings are temporarily overridden and the chlorine generator runs for 24 hours at 100% Chlorine Production.
-
Page 20: Help And Troubleshooting
HELP AND TROUBLESHOOTING The Zodiac TRi-XO chlorine generator automatically provides a number of inbuilt warnings that can help identify problems and offer solutions. To access the HELP menu: 1. Press the button. 2. Using the buttons, scroll to the ‘HELP/DIAG’ menu. -
Page 21: Maintenance
3. We recommend using Zodiac Salt Chlorinator Cell Cleaner to clean the electrode. However you can mix your own by carefully adding one (1) part of Hydrochloric (Muriatic) acid to ten (10) parts water. - Page 22 MESSAGES AND WARNINGS. WHAT THEY MEAN. Messages Meaning Solution Check Salt Your salinity level Take a water sample to the pool shop to see if your Check Minerals may be low salt or mineral levels need topping up. Please note that this can be affected by low water temperatures.
- Page 23 NOTES _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________...
- Page 24 Record your Equipment details here for quick reference: Model No.: _______________________________ Serial No.: _______________________________ Zodiac is a registered trademark of Fluidra Group Australia Pty Ltd ABN 87 002 641 965 ZODIAC CUSTOMER SERVICE CENTRE Fluidra Group Australia: 219 Woodpark Rd, Smithfield,...
