Summary of Contents for SHOWTEC 50426

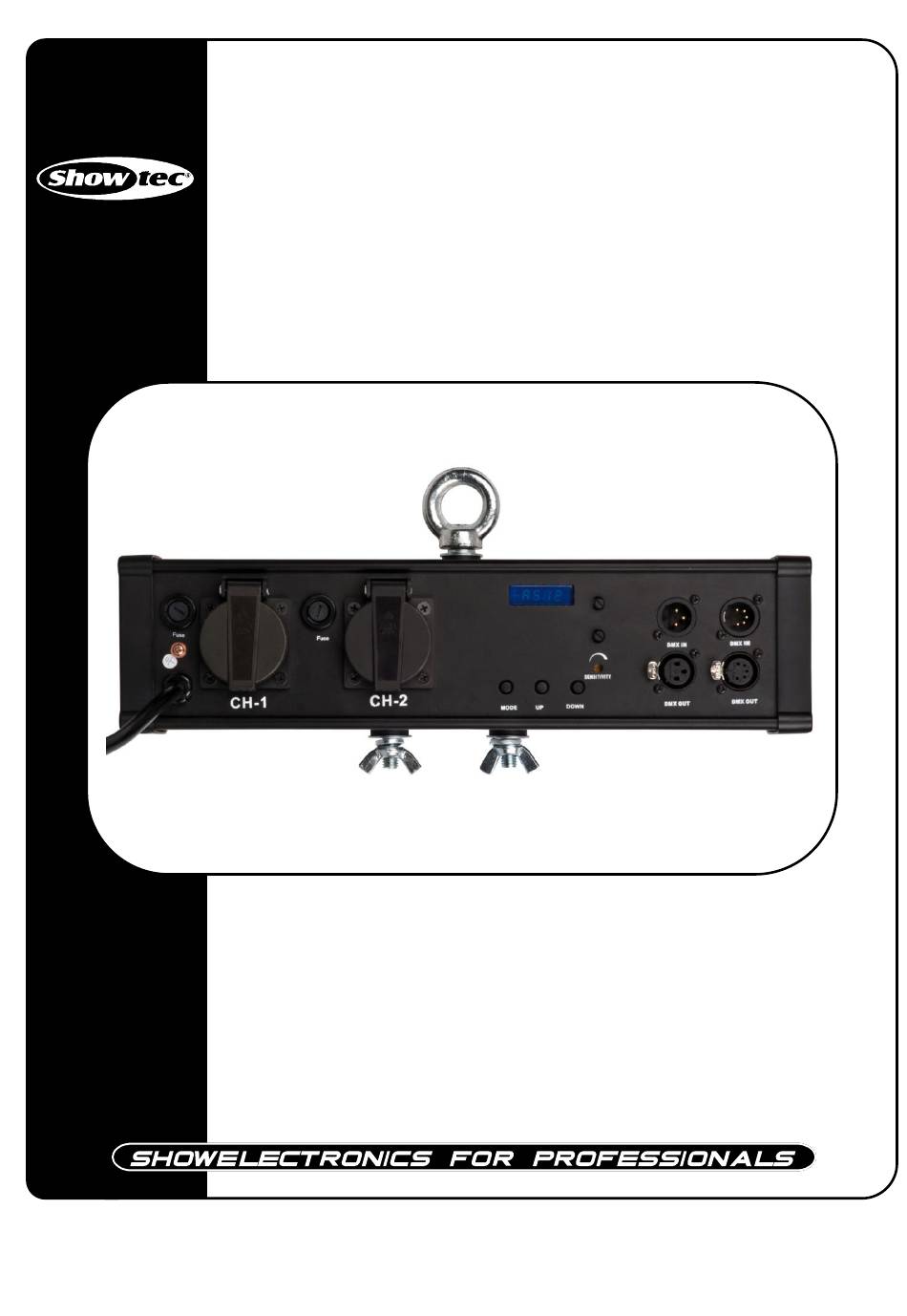

- Page 1 2 Channel Sliding Profile Dimmer ORDERCODE 50426...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec Sliding Profile Dimmer Product Guide ™ Warning.................…...……………..…………………………….………..…. Safety-instructions………………………………………………………………………………………………………… Operating Determinations.…………………………………………………………………………………………….. Description................…...………………………………………….………..… Features and Overview ………………………………...….……………….………….……….……….…………….. Installation................…...…………………………………………..……..…… Set Up and Operation..............……..……………………………………………… One Sliding Profile Dimmer..........…………………………………………………..………. Multiple Sliding Profile Dimmers..........…………….…………………………………….…. DMX-Protocol…...........…………………………………………………………………….…… Control Panel….....……........………………………………………………….……………… Menu Overview.....……........………………………………………………….……………… Menu Functions…..……........………………………………………………….……………… Channels........………………………………………………………………………………… Maintenance...................………..………….…….……………………….… Replacing the Fuse................…………………….……………………………... -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Description
Description of the device Features The Showtec Sliding Profile Dimmer is a versatile dimmer from Showtec. • 2 Channel dimmer with 6,3A output • Dimmer or switch mode • Standalone and DMX-512 • Sliding profile housing • LCD display for all menu settings •... -
Page 7: Installation
Installation Remove all packing materials from the Sliding Profile Dimmer. Check that all foam and plastic padding is removed. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. -
Page 8: Set Up And Operation
Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. One Sliding Profile Dimmer 1. -
Page 9: Dmx-Protocol
Control Panel When the indicator light flashes, means the Sliding Profile Dimmer is working. Fig. 3 Control Mode The Sliding Profile Dimmers are individually addressed on a data-link and connected to the controller. The Sliding Profile Dimmers respond to the DMX signal from the controller. (When you select the DMX address and save it, the controller will display the saved DMX address the next time.) DMX Addressing The control panel on the front side allows you to assign the DMX address, which is the first channel from... -
Page 10: Menu Overview
Menu Overview Menu Functions 1. DMX Address You can set the DMX address from , by using the Up/Down buttons. Press the Mode button to save your settings. 2. Sound-control / Flash Menu If the display shows , the device is in Sound Switch Mode. If the display shows , the device is in Sound Fade Mode. -
Page 11: Dmx Channels
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec Sliding Profile Dimmer requires almost no maintenance. However, you should keep the unit clean. -
Page 12: Troubleshooting
4. If you are unable to determine the cause of the problem, do not open the device, as this may damage the unit and the warranty will become void. 5. Return the device to your Showtec dealer. No Power This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. -
Page 13: Product Specifications
Product Specification Model: Showtec Sliding Profile Dimmer Voltage: AC 230V-50Hz (CE) Fuse: 2X 6,3A 250V Dimensions: 385 x 80 x 128 mm (LxWxH) Weight: 2,16 kg Operation and Programming DMX-control via standard DMX-controller Signal pin OUT : pin 1 earth, pin 2 (-), pin 3 (+)
