2.3 Slave Mode (Preferred method in Canada)
In Slave Mode, the NMC is wired into a spare FACP signal circuit. When an alarm condition occurs, the reversal
of the bell output polarity will cause the NMC to alarm as well. When the FACP Signal Circuits are silenced, the
NMC Bell Output Relay will reset to 'normal state' causing the NMC to silence the ISDs and return from alarm
state to normal state. If the FACP re-alarms, this will cause the NMC to re-alarm as well. Connect the Signal
Circuit wiring of the FACP to the NMC Bell Output Relay IN+ and IN- terminals, observing polarity. Wire the FACP
signal circuit end of line resister to the NMC OUT+ and OUT- terminals.
schematic.
2.4 Alarm Zones
Figure 3
See
below for wiring schematic. NOTE: The resettable power terminal has an output voltage range
of 10.70VDC to 20.27VDC.
Mircom Technologies Inc

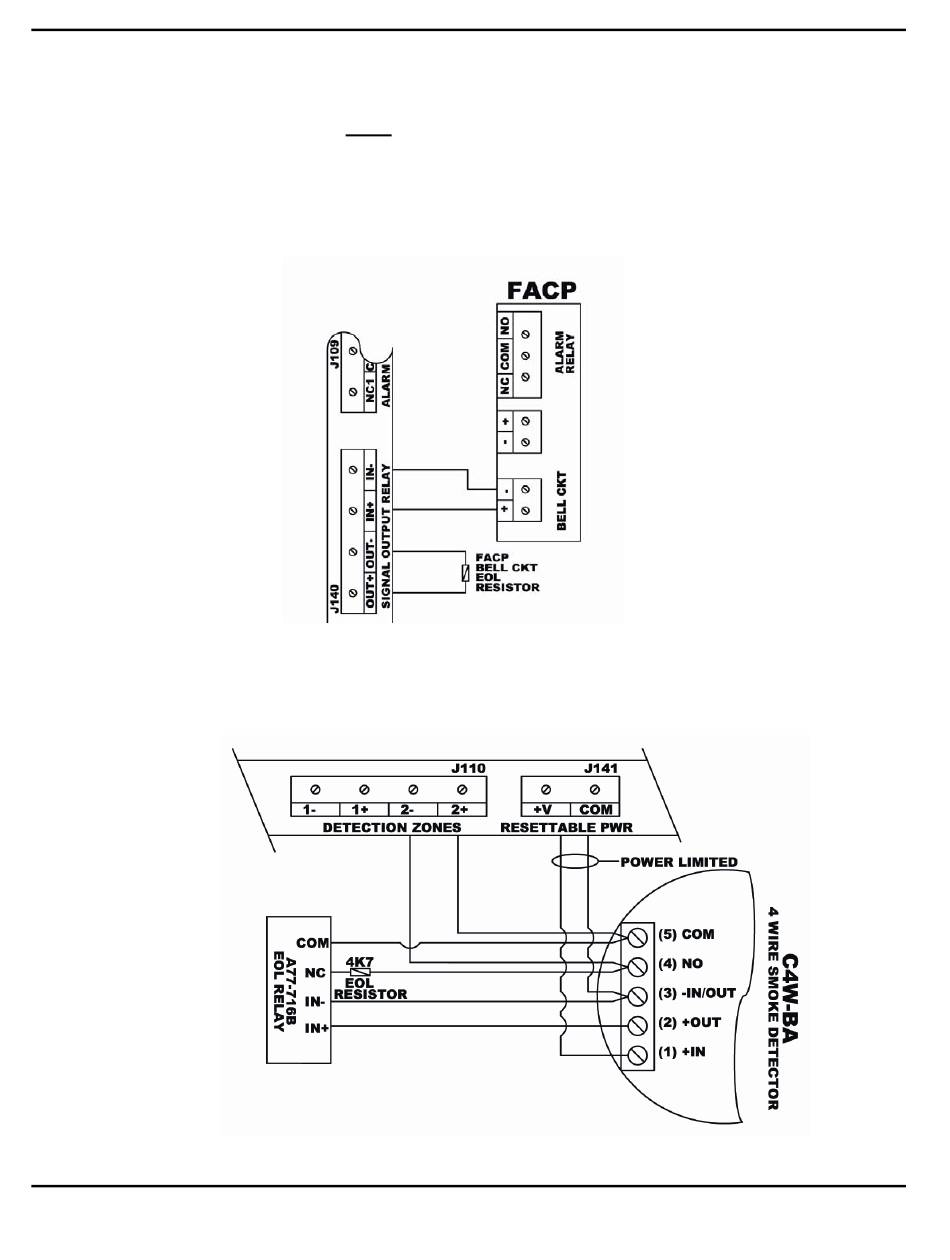

Figure 2- NMC- Slave Unit Wiring
Figure 3- 4 Wire Smoke Detector
All Rights Reserved
Page 12 of 54
Installation and Programming Manual
Figure 2
below shows the wiring
LT-1034 Rev.1
