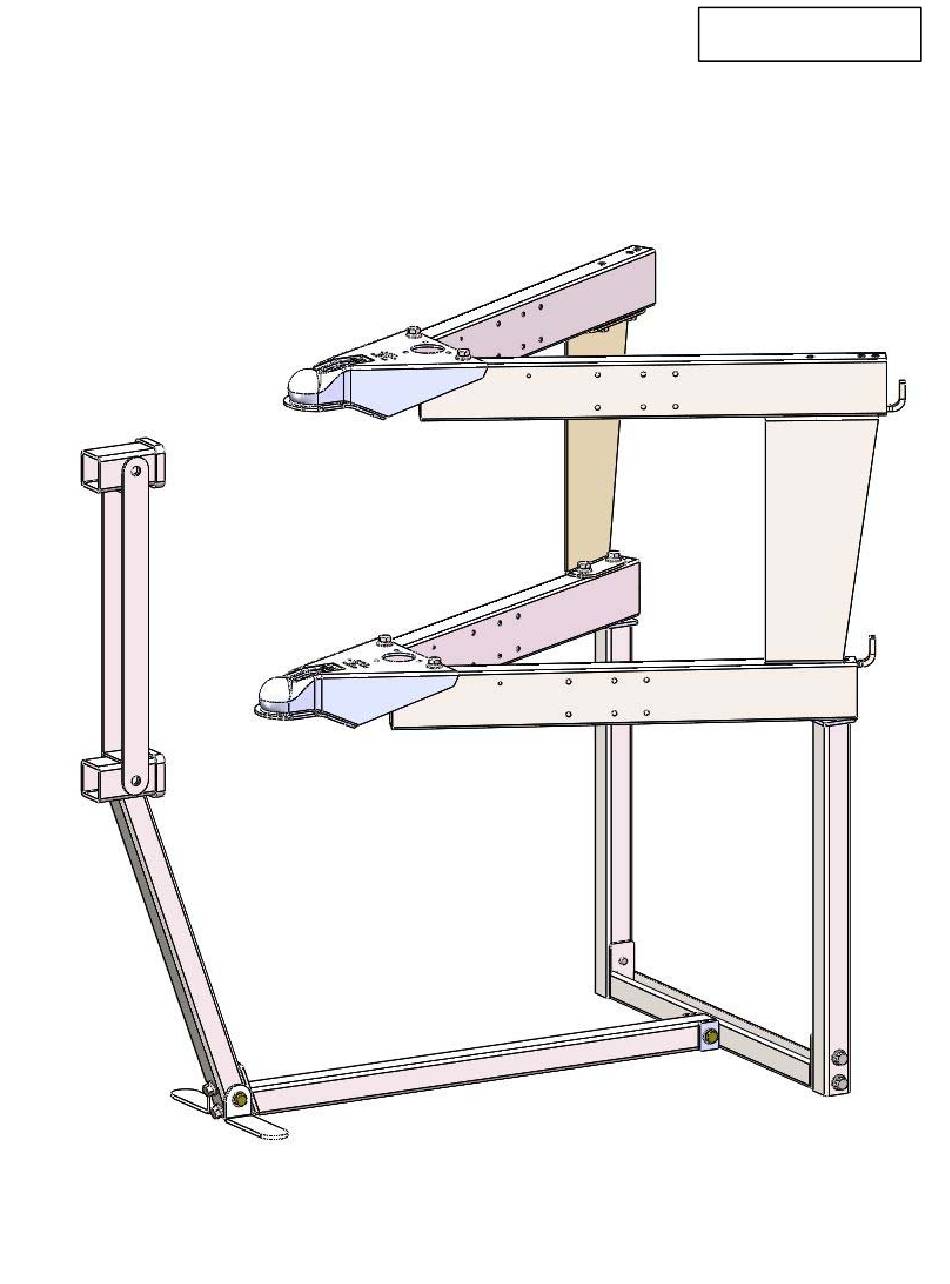

- Page 1 PART # 33144 2 TIER WD HITCH DISPLAY STAND 01/15/18 _ REV2...
- Page 2 Parts List Tools required: Ratchet wrench ¾” Socket ¾” Box end wrench Torque Wrench All hardware will be final torqued to 75 ft. lbs. 01/15/18 _ REV2...
-
Page 3: Base Assembly
Base Assembly 1. Position the Base Center Tube and Base Rear Tube as shown. Connect the tubes using the proper hardware and lightly tighten. 2. Attach the Lower Hitch Box Weldment to the Base Center Tube using the proper hardware and lightly tighten. 3. Attach (2) Feet using the proper hardware and lightly tighten. 4. Ensure both feet and the rear base tube lie flat on the floor. Torque all hardware to 75 ft. lbs. 01/15/18 _ REV2... -
Page 4: Upright Assembly
Upright Assembly 5. Attach a Base Vertical Leg to each side of the Base Rear Tube. Torque all hardware to 75 ft. lbs. 01/15/18 _ REV2... - Page 5 Lower A Frame Assembly 6. Assemble the Coupler Body to each Rectangular Tube while on a work bench or floor before attaching to the stand base. Note: The end of the tube with the single hole is attached to the coupler. Lightly tighten hardware. 01/15/18 _ REV2...
- Page 6 7. Install the Shank and Head Assembly with Hitch Ball that will be displayed on the stand (Not included). This will allow you to align the display stand properly. 8. Using 2 people, carefully place the assembled A Frame on the stand and attach the Coupler to the Hitch Ball. 9. Install the hardware to attach the Rectangular Tubing to the Base Vertical Legs. Lightly tighten hardware. 01/15/18 _ REV2...
- Page 7 Be sure the hitch ball is at the proper height to allow the A frame to sit level. Adjust the ball height if necessary. Align the A Frame so both sides are at the same angle. Torque all hardware to 75 ft. lbs. 01/15/18 _ REV2...
-
Page 8: Plate Assembly
Plate Assembly 10. The plates can be attached 2 ways. For longer length hitch displays, assemble with the straight side towards the front of the stand. For shorter length hitch displays, assemble with the angled side of the plates towards the front of the stand. Install all hardware and lightly tighten. Note: The hook plate can be installed on either side. Straight Side Angled Side Front of stand 01/15/18 _ REV2... - Page 9 Upper A Frame Assembly 11. Temporarily remove the hitch pin from the Lower Hitch Box, install the Upper Hitch Box Weldment, then replace the hitch pin. 12. Install the Shank and Head Assembly with Hitch Ball that will be displayed on the stand (Not included) in the Upper Hitch Box. This will allow you to align the display stand properly. Hitch Pin 01/15/18 _ REV2...
- Page 10 Repeat step 6 to assemble the upper A Frame Assembly. 13. Using 2 people, carefully place the assembled A Frame on the stand and attach the Coupler to the Hitch Ball. 14. Install the hardware to attach the Rectangular Tubing to Plates A & B. Lightly tighten hardware. Note: The hook plate can be installed on either side. Be sure the hitch ball is at the proper height to allow the A frame to sit level. Adjust the ball height if necessary. Align the A Frame as described on Page 7, then tighten all hardware to 75 ft. lbs. The Stand assembly is now complete. Install spring bars, brackets, or sway controls on your display as desired. 01/15/18 _ REV2...
