Roadmaster 88336 Installation Instructions

1-800-669-9690
SEAT ADAPTER KIT #88336
INSTALLATION INSTRUCTIONS
5805-01
ROADMASTER, Inc. 6110 NE 127th Ave.
Mounting
Post
1
2
3
1-1/8"
pipe spacer
1-5/8"
pipe spacer
ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
Vancouver, WA 98682
1.
BrakeMaster. If needed, order part number 450596. Now,
secure the post to the center of the seat adapter using the
included 3/8" x ¾" bolt and 3/8" lock washer. If the hole is
countersunk, use the Allen head bolt and lock washer includ-
ed with this kit.
2.
move the two front seat track covers (Fig.2). They will not be
replaced.
3.
the front seat track to the floor pan. Place the shorter pipe
spacer over the inside mount, and the longer one over the
outside mount (Fig.3).
4.
stalled in the previous step. Note: make certain to position
the adapter so that the mounting post is directly in line to the
brake pedal. The BrakeMaster air cylinder may jam or func-
tion incorrectly if the mounting post is not directly in line with
the brake pedal.
Failure to follow these instructions can result in
WARNING
property damage, personal injury or even death.
360-896-0407 fax 360-735-9300

Before Installation

Instructions
Locate the mounting post (Fig.1) that came with your
Push the driver's seat back as far as it will go, and re-
Remove the two 13mm (head) seat track bolts attaching
Place the seat adapter over the pipe spacers you in-

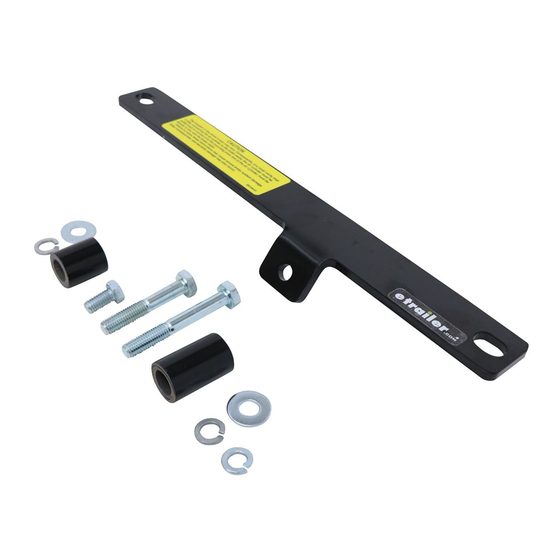

Parts List

(1) 3/8" lock washer
(1) 3/8" x ¾" bolt
(1) 10mm x 1.5 x 60mm bolt
(1) 10mm x 1.5 x 75mm bolt
www.roadmasterinc.com
Installation Complete
continued on next page
(1) 1-1/8" pipe spacer
(1) 1-5/8" pipe spacer
(2) 10mm lock washers
(2) 3/8" flat washers
