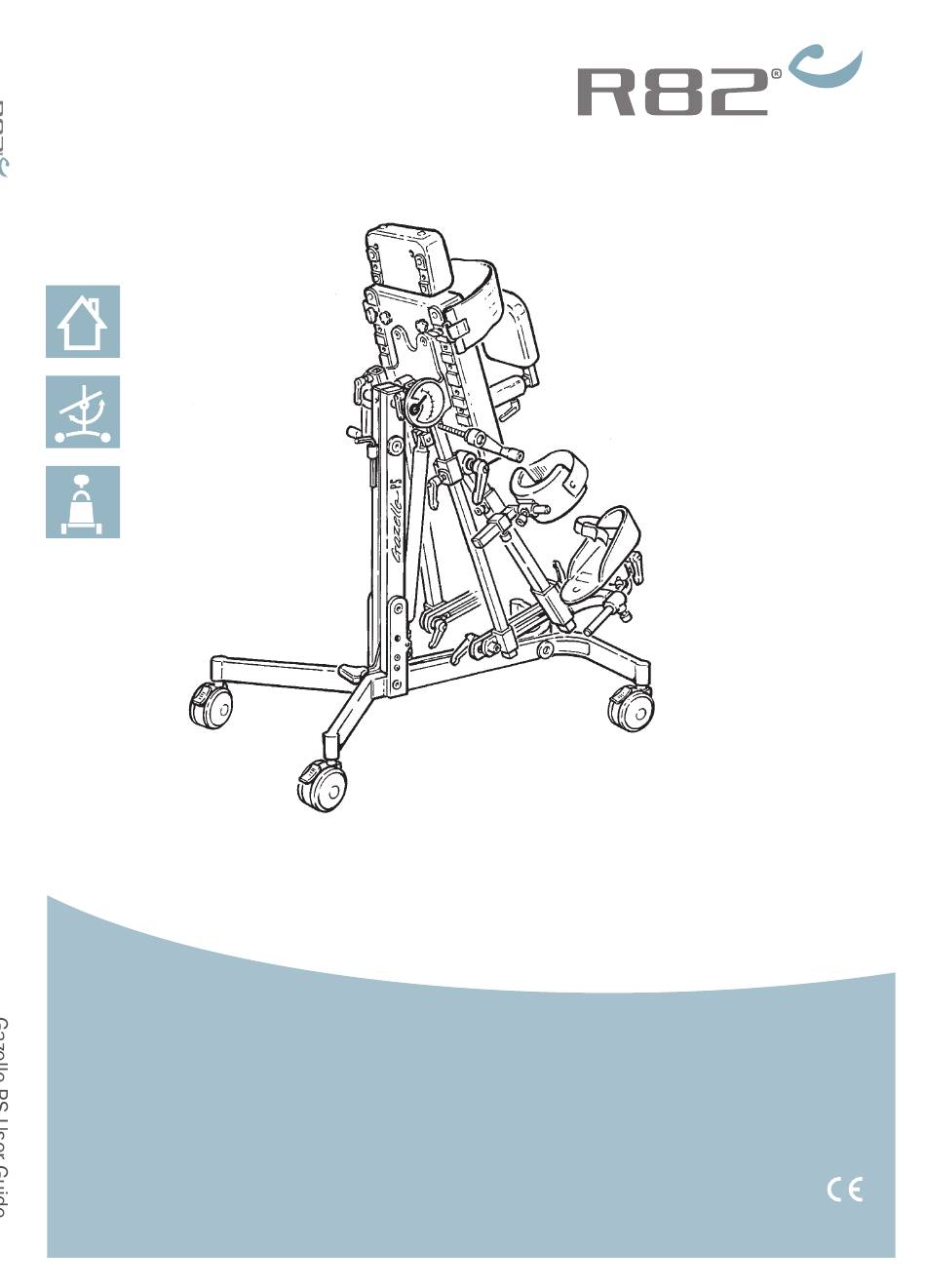

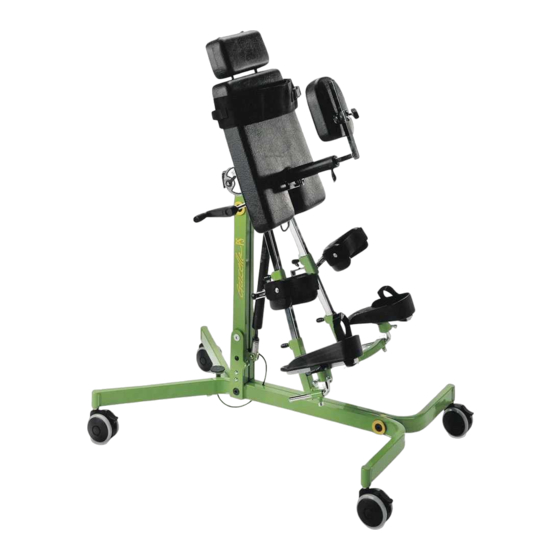

- Page 1 90 - -15° <80 kg 176.4 lb) Gazelle PS User Guide EN 12182 support.R82.org 2019-11 - rev.11...
- Page 2 10–19 ENGLISH 20–29 DEUTSCH NEDERLANDS 30–39 DANSK 40–49 NORSK 50–59 SVENSKA 60–69 SUOMI 70–79 mm (inch) ESPAÑOL 80–89 XXXXXXX/01 XXXXXXX/01 FRANÇAIS 90–99 ITALIANO 100–109 999609xxxx - 2013.03 www.support.R82.com 999609xxxx - 2013.03 www.support.R82.com PORTUGUÊS 110–119 7 - 9 ČESKY 120–129 support.R82.org...
- Page 3 Gazelle PS 1 <40 kg <88.2 lb Gazelle PS 2 Gazelle PS 3 <60 kg <80 kg <132.3 lb <176.4 lb XXXXXXX Max load: xxx kg DMR ver.:XXXX Art. no.:XXXXXXX Product:XXXX - Size X (XX)XXXXXXXXXXXXXX(XX)XXXXXX(XX)XXXXXX support.R82.org...
- Page 4 support.R82.org...
- Page 5 90 - -15º 90 - -15º 90 - -15º Angle board 40 kg 60 kg 80 kg (88.2 lb) (132.3 lb) (176.4 lb) Max load 20 kg 22 kg 24 kg (44 lb) (48 lb) (53 lb) Total mass support.R82.org...
- Page 6 XXXXXXX/01 XXXXXXX/01 999609xxxx - 2013.03 www.support.R82.com 999609xxxx - 2013.03 www.support.R82.com XXXXXXX/01 9996097100 999609xxxx - 2013.03 www.support.R82.com XXXXXXX/01 9996097119 999609xxxx - 2013.03 www.support.R82.com XXXXXXX/01 9996097120 999609xxxx - 2013.03 www.support.R82.com support.R82.org...
- Page 7 être imprimée dans possono essere stampate in R82 na internet e podem no site da R82 e podem ser un grand format à partir du dimensioni maggiori ser impressas em tamanhos impressas em tamanhos...
- Page 8 03 = Trasporto nei veicoli a motorizados motorizados véhicules motorisés motore 05 = Riscos de compressão 05 = Riscos de compressão 05 = Risques de pincement 05 = Pericolo di schiaccia- mento 03 = Transport w pojazdach silnikowych vozidlech support.R82.org...
- Page 9 PT: Uso correto BR: Uso correto EN: Incorrect use DE: Falsch NL: Onjuist gebruik DK: Forkert brug NO: Feil bruk SV: Felaktig användning FIN: Virheellinen käyttö ES: Uso incorrecto FR: Utilisation incorrecte IT: Uso errato PT: Uso incorreto BR: Uso incorreto support.R82.org...
- Page 10 Gazelle PS: 1. Make sure that the four wheels are locked. foot, as the Gazelle PS is raised to vertical 3. With the Gazelle PS a in vertical position, use the enclosed 6 mm Allen key to fasten the screw (A).
- Page 11 Angling Degree indicator (A) Adjust the angel of the Gazelle PS from vertical to 15° under horizontal by pressing the foot pedal (B). As security, the foot pedal can be locked at the wanted angle position. Turn the button at the lower end of the gasspring and the Gazelle PS locks (C).
- Page 12 (C). To adjust the foot support see page 16. Knee support As standard, the Gazelle PS is delivered with knee supports mounted to be used by front-standing children. Turn around the knee supports, to be able to use it for backstanding children: 1.
- Page 13 The foot plate mounting is mounted on the joint. By means of this, the footplate can be adjusted in different angles by loosening the screws (C) . The plate can be adjusted in the depth by loosening the handle (D), or the unbracho screw (B). support.R82.org...
- Page 14 1. Remove the back support (C) pulling the release chain (D). Fasten with the handles. The child may not sit on the mounting for the back support. There must always be a couple of centimetres between the child and the mounting. 05 Sqeezing hazard! support.R82.org...
- Page 15 Mount the side supports on the trunk support to give the rightsupport to the upper part of the body or on the basic plate to support the body and hips.The side supports are adjustable in height and in width (A). support.R82.org...
- Page 16 Adjusting the gas spring Gazelle PS is equipped with a gas spring for angle adjustment. After a while it might need adjustment. The adjustment is necessary when: The gas spring is releasing itself The gas spring can not be released If the gas spring releases itself, loosen the nut (B) with and 17 mm wrench.
- Page 17 Accessories and spare parts We appreciate your choice of a new product from R82 - a worldwide supplier of technical aids The products from R82 can be supplied with a and appliances for children and teenagers with variety of accessories which comply with the needs of the individual user.
- Page 18 • If there is any doubt as to the continued high temperatures. DO NOT puncture safe use of your R82 product or if any • Do not expose the piston rod to scratches parts should fail, stop using the product etc.
- Page 19 • Oil the swing-away parts. We recommend you use a professional lubricant system Annually • Inspect the frame for cracks or signs for worn-out parts and carry out annual service. Never use a product which appears to be substandard or faulty support.R82.org...
