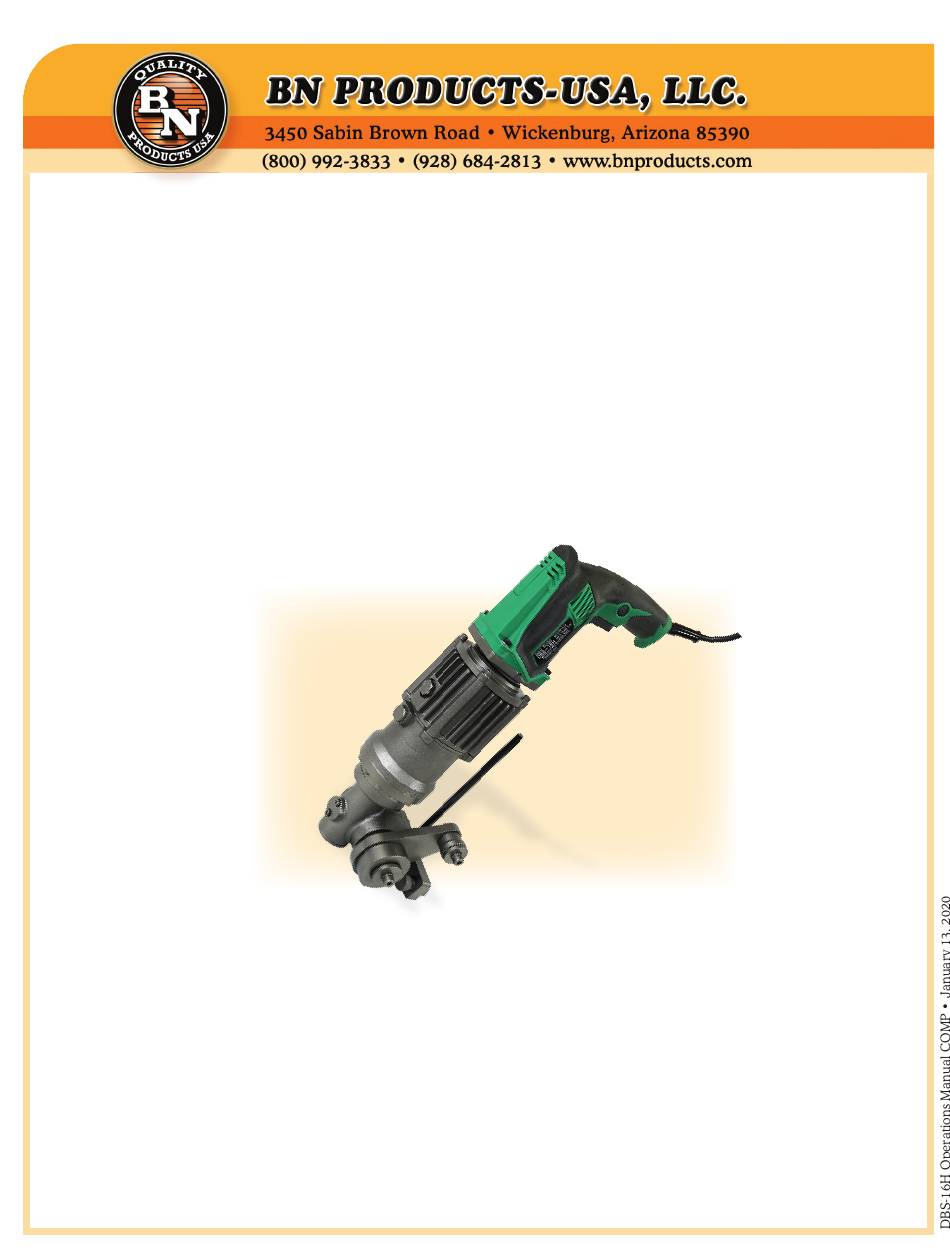

OPERATING/SAFETY
INSTRUCTIONS
DBS-16H
IN-PLACE REBAR BENDER
TO REDUCE THE RISK OF INJURY, YOU MUST READ
AND UNDERSTAND THESE INSTRUCTIONS
Products that make money, save money and add value to your bottom line

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DBS-16H and is the answer not in the manual?

Questions and answers

Related Manuals for BN Products DBS-16H

Summary of Contents for BN Products DBS-16H

  • Page 1 OPERATING/SAFETY INSTRUCTIONS DBS-16H IN-PLACE REBAR BENDER TO REDUCE THE RISK OF INJURY, YOU MUST READ AND UNDERSTAND THESE INSTRUCTIONS Products that make money, save money and add value to your bottom line...

  • Page 2: Work Area Safety

    GENERAL SAFETY RULES Do not use AC only rated tools with a DC power sup- WARNING: PLEASE READ AND UNDERSTAND ply. ALL INSTRUCTIONS. PERSONAL SAFETY Failure to follow all instructions listed below may result Stay alert, watch what you are doing and use com- in electric shock, fire and/or serious injury.

  • Page 3: Specific Safety Rules

    If damaged, have it repaired by likely to bind and are easier to control. a BN Products-USA service facility before use. If the plug will not fit the outlet, have a proper outlet in- Use the power tool, accessories and tool bits etc., in stalled by a qualified electrician.

  • Page 4: Extension Cords

    be connected to a properly grounded outlet. If the EXTENSION CORDS tool should electrically malfunction or break down, Grounded tools require a three wire extension cord. grounding provides a low resistance path to carry elec- Double insulation tools can use either a two or three tricity away from the user, reducing the risk of electric wire extension cord.
  • Page 5 Make sure the unit is plugged into the proper outlet tool. 110V, 115V or 230V 50/60Hz. (Check the voltage of CARE: If voltage is too high, the motor will burn your DBS-16H.) out. If voltage is too low, insufficient power will be WARM UP generated. Never use DC current.

  • Page 6: Points Of Attention

    Pull the trigger-switch and keep depressed while the POINTS OF ATTENTION bending arm (roller) moves and bends the rebar. When 1. 1. Switch “OFF”. Disconnect tool from outlet when 90° bend is completed, release the trigger-switch. The not in use and before cleaning, adjusting or servic- bending arm (roller) returns automatically.

  • Page 7: Carbon Brushes

    OIL-LEVEL CHECK (ADD OIL) BOLT TIGHTNESS As the tool is hydraulically operated, the oil-level must Once a week, or after every 30 times use, check the be checked at frequent intervals, preferably once a year. tightness of all bolts. Especially those securing housing Failure to maintain the oil at the proper level results in to the cylinder, bending roller and center roller.
  • Page 8 DBS-16H IN-PLACE #5 REBAR BENDER PARTS GUIDE Products that make money, save money and add value to your bottom line...
  • Page 9 Part Number Description Part Number Description 1BS1027800 Housing 1C1604 SEAL PACKING (ODI60- 70-6) 7BM3030FB Bush BM3030FB 3AP4224002 Return Valve 1C16021 SKY Packing (SKY 30) 7BW008 Belleville Spring Washer 8 1BS4259300 Cylinder packing 1CB4104002 GUIDE CLAMP 7CB06022 CAP BOLT (M6X22) (DCC-1618/2018HL) (DBC-16H) 7SPNC8 SPNC PACKING...

  • Page 10: Specification

    7JASO20371ATF O-ring JASO 2037 1A 7COD0752C050J Electrical cord 0.75 x 2 C x 5.0 1C4257900 Joint Adapter M 110v SPECIFICATION: MODEL DBS-16H Power Supply 110V / 115 /230V AC only Wattage 1020W Motor Double insulated motor Max. rebar dia. 16mm (5/8”) Bending speed 4 - 5 sec.
  • Page 11 Notes: ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ ___________________________________________________________________________________ Products that make money, save money and add value to your bottom line...
