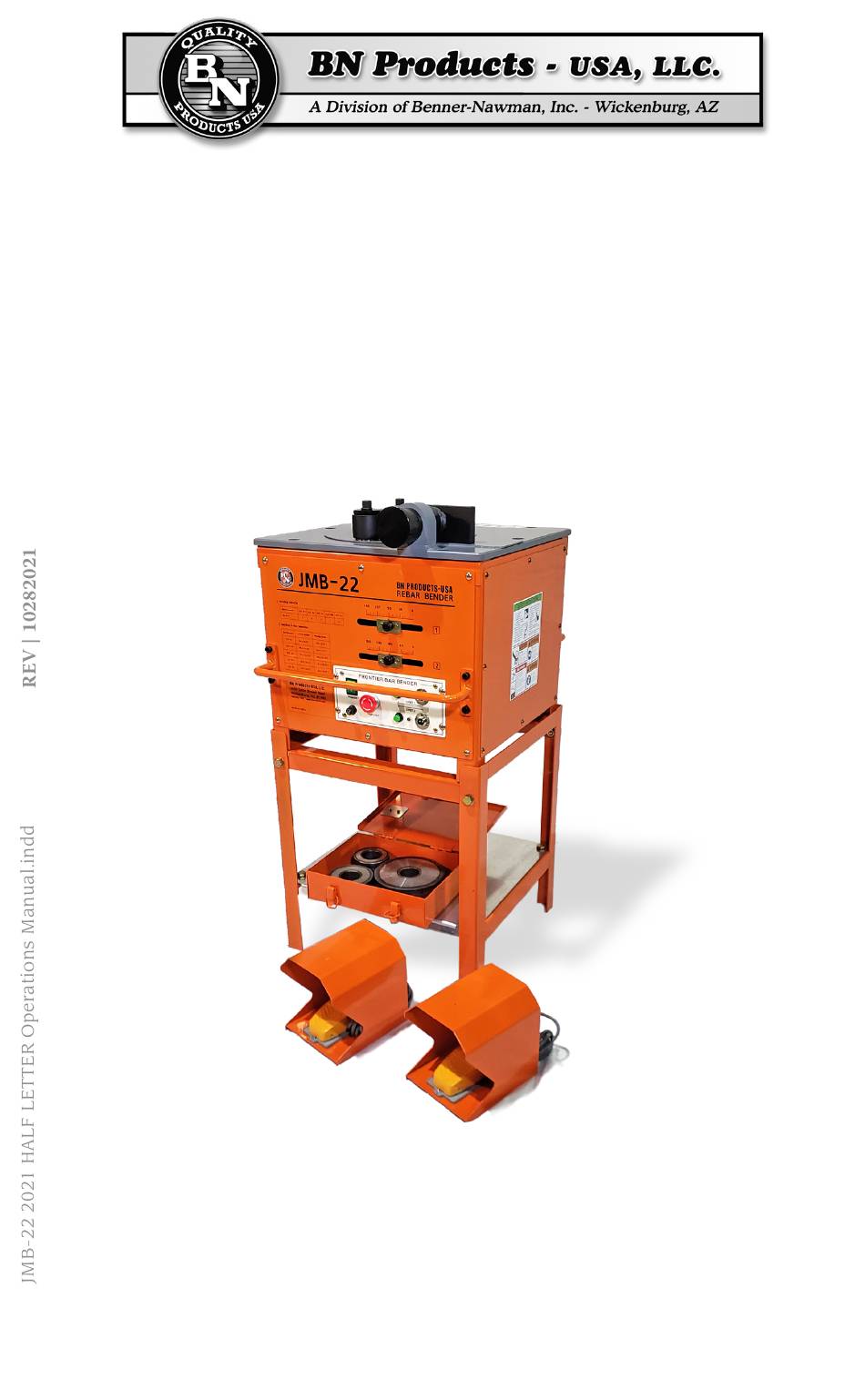

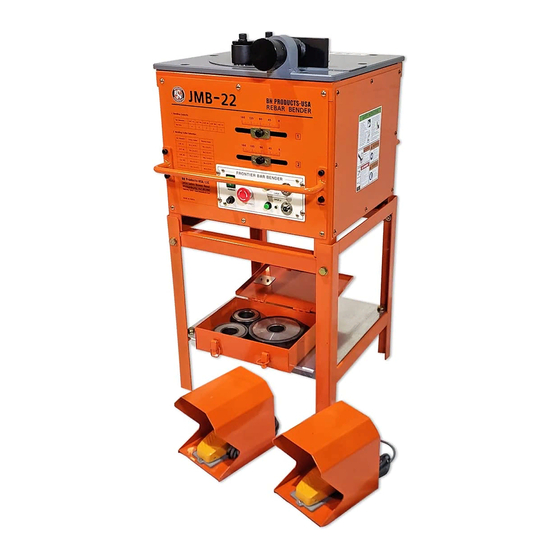

- Page 1 PRODUCT: JMB-22 REBAR BENDER OPERATIONS MANUAL 3450 Sabin Brown Road • Wickenburg, AZ 85390 (800) 992-3833 • mail@bnproducts.com | 1 | www.bnproducts.com BN Products-USA...
- Page 2 Thank you for choosing our JMB-22 Rebar Bender This manual covers the proper operation and maintenance. Before operating, please read this manual carefully for im- portant procedures and safety. All technical data and drawings in this manual are consistent with the information on this product. As a result of revisions and other on going updates, the contents of this manual may be slightly different from the actual product.
-
Page 3: Feature Identification
Basic Specifications and Performance Specifications Classification JMB-22 Power Supply Single Phase 115V / 60HZ Current 12 Amp Motor 2.2 kW... -
Page 4: Power Connection
Repair or replace as appropriate. Does not rotate Check Foot Switch connection. Check if Emergency Switch is pressed. Check gear connection. Take measures as necessary. If motor output power is reduced, re- place carbon brush of motor. | 4 | www.bnproducts.com BN Products-USA... - Page 5 If the carbon brush in the motor, which is subject to wear and tear, is worn, the motor will lose power or even stop until the power is next turned on. In such cases, the carbon brush(es) must be replaced. | 5 | www.bnproducts.com BN Products-USA...
- Page 6 If the machine does not start up when the power lamp is lit, check the fuse or check the carbon brush in the motor for wear. • In the event of other troubles, please call (800) 992-3833 | 6 | www.bnproducts.com BN Products-USA...
- Page 7 JMB-22 #7 REBAR BENDER: PARTS LIST DESCRIPTION DESCRIPTION Oil seal 6211DD bearing Moving roller shaft 6211ZZ bearing 6002ZZ bearing 6305ZZ bearing 6003ZZ bearing 6804ZZ bearing 6005ZZ bearing 6912ZZ bearing 6008ZZ bearing Amature 6200DD bearing AN08 lock nut 6204ZZ bearing Frame body | 7 | www.bnproducts.com...
- Page 8 Snap ring 9th gear (69phi gear) Tension spring 8th gear (28phi gear) Stator 5th gear (98phi gear) Foot switch 4th gear (34phi gear) BN PRODUCTS-USA, LLC. 3450 Sabin Brown Road Wickenburg, AZ 85390 (800) 992-3833 | 8 | www.bnproducts.com BN Products-USA...
