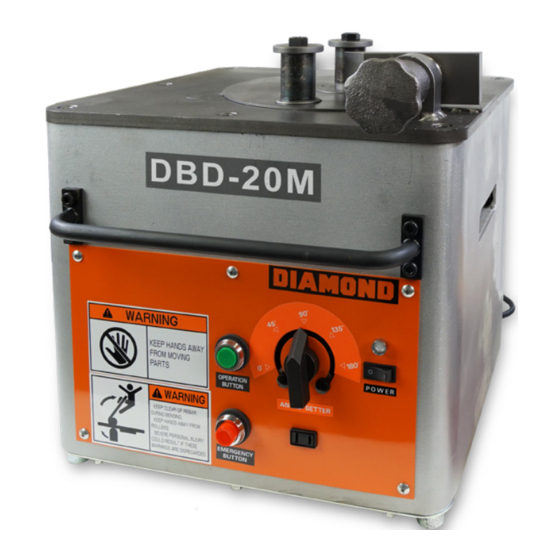

BN Products DIAMOND DBD-20M Handling Instructions Manual

Portable rebar benders

Bender Handling Instructions

DBD-20M 0-180 degree

Portable Rebar Benders

BN Products-USA, LLC.

3450 Sabin Brown Road

Wickenburg, AZ 85390

(800) 992-3833 • (928) 684-2813

FAX: (928) 684-7041

mail@bnproducts.com

www.bnproducts.com

Products that make money, save money and add value to your bottom line

Page • 1

Table of Contents

Need help?

Do you have a question about the DIAMOND DBD-20M and is the answer not in the manual?

Page 1 Bender Handling Instructions DBD-20M 0-180 degree Portable Rebar Benders BN Products-USA, LLC. 3450 Sabin Brown Road Wickenburg, AZ 85390 (800) 992-3833 • (928) 684-2813 FAX: (928) 684-7041 mail@bnproducts.com www.bnproducts.com Products that make money, save money and add value to your bottom line...
Page 2 Bender Handling Instructions DBD-20M Rebar Benders (0-180 degree) Important: When using electric tools, basic safety precautions should always be followed to reduce the risk of electric shock and personal injury, please note the followings items: READ ALL INSTRUCTIONS AND SAVE 9.
Page 3 SPECIFICATIONS Model DBD-20M Max. Bending 3/4” (# 6) (19 mm) Capacity Grade 60 Rebar Bending Angle 0-180° Bending Speed 7 seconds for a 180° bend Electric Power 115 Volts, 50/60 Hz, 15 Supply amps, 1725 watts Dimensions 16.4” x 18” x 16.2” L x W x H (mm) (420) x (462) x (415) Weight (Kg)
Page 4 DO NOT USE PARTS OR ACCESSORIES THAT BENDING ANGLES CAN BE PRESET ARE NOT GENUINE DIAMOND BRAND FROM: BN PRODUCTS-USA, LLC. 1. Set the angle setter to 135° then tighten the right angle stopper to lock the 135° position. At least once a month remove the bottom plate and 2.
Page 5 Products that make money, save money and add value to your bottom line Page • 5...
Page 6 Page • 6...
Page 7 Page • 7...
Page 8 Page • 8...
