BN Products AIRMATIC DBD Series Manual

Mini rebar bender
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

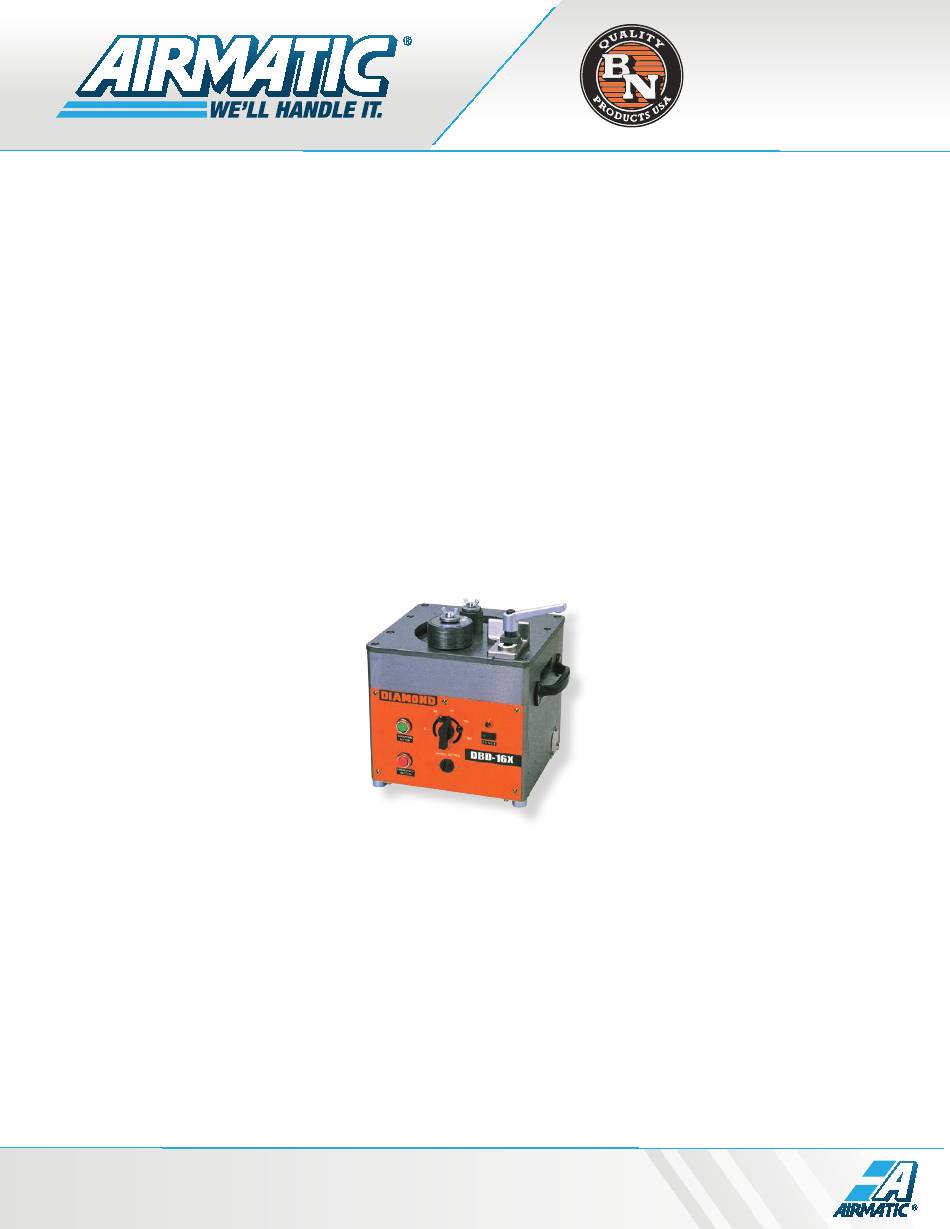

BN PRODUCTS
DBD-16X
MINI REBAR BENDER
Tool Manual
DBD-Series 0-180 degree Rebar Benders
BN Products-USA, LLC.
3450 Sabin Brown Road
Wickenburg, AZ 85390
(800) 992-3833 • (928) 684-2813
FAX: (928) 684-7041
mail@bnproducts.com • www.bnrebartools.com
AIRMATIC
airmatic.com |
215.333.5600
| infocenter@airmatic.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AIRMATIC DBD Series and is the answer not in the manual?

Questions and answers

Related Manuals for BN Products AIRMATIC DBD Series

Summary of Contents for BN Products AIRMATIC DBD Series

  • Page 1 BN PRODUCTS DBD-16X MINI REBAR BENDER Tool Manual DBD-Series 0-180 degree Rebar Benders BN Products-USA, LLC. 3450 Sabin Brown Road Wickenburg, AZ 85390 (800) 992-3833 • (928) 684-2813 FAX: (928) 684-7041 mail@bnproducts.com • www.bnrebartools.com AIRMATIC airmatic.com | 215.333.5600 | infocenter@airmatic.com...
  • Page 2 NOTE: When using electric tools, basic safety precautions should always be followed to reduce the risk of electric shock and personal injury, including the followings items: READ ALL INSTRUCTIONS AND SAVE THEM FOR FURTURE REFERENCE 1. Keep hands away. From all moving parts and rollers while operating. 2.
  • Page 3 DBD-16X Mini Rebar Bender 1. Moving bending roller 2. Center roller 3. Adjustable stopper 4. Main switch 5. Pilot lamp 6. Operation button On/Off 7. Angle setter (dial type) 8. Angle stopper (two) 9. Emergency stop button 10. Plug-in for foot switch 11.
  • Page 4 WARNING: ALWAYS UNPLUG THIS TOOL BEFORE ATTACHING OR REMOVING ROLLERS OR ACCESSORIES. 1. Select and set the correct rollers for the bars to be bent. See the table. 2. Plug the electrical power cord into an appropriate outlet. 3. Lay the bar on the machine surface between the center roller and bending roller. Adjust the stop- per so that the bar is parallel to the front edge of the machine.
  • Page 5 WARNING: ALWAYS UNPLUG TOOL BEFORE PERFORMING MAINTENANCE. DO NOT USE PARTS OR ACCESSORIES THAT ARE NOT GENUINE DIAMOND BRAND from BN Products-USA 1. At least once a month remove the bottom plate and grease all the visible gears and pinions. At the same time, check the carbon brushes for wear or damage.
  • Page 6 DBD-16X Bender Manual | Page 6...
  • Page 7 Part No. Part Name Part No. Part Name 1BL9402301 SWIVEL SHAFT 760/32ZZ BALL BEARING 60/322ZZ 1BL9302100 MAIN SHAFT 1BL9402200 BEARING COLLAR 1BL9100105 FRAME 7SRH58 SNAP RING H58 1BL9404400 ANGLE GEAR (B) 1BL9403000 ARM STOPPER 7PB2.3025 TAPPING SCREW M2.3X25 7FB06020 SCREW M6X20 7SRS30 SNAP RING S30 1BL9102700...
  • Page 8 Part No. Part Name Part No. Part Name 76900ZZ BALL BEARING 6900ZZ 7UB2W05012 SET BOLT WITH WASHER M5X12 76004ZZ BALL BEARING 6004ZZ 7P204010 SCREW WITH WASHER 7SRS25 SNAP RING S25 M4X10 1BL9401702 GEAR NO. 3 7UB2W06012 SET BOLT WITH WASHER 1BL9401901 KEY NO.

This manual is also suitable for:

Airmatec dbd-16x
