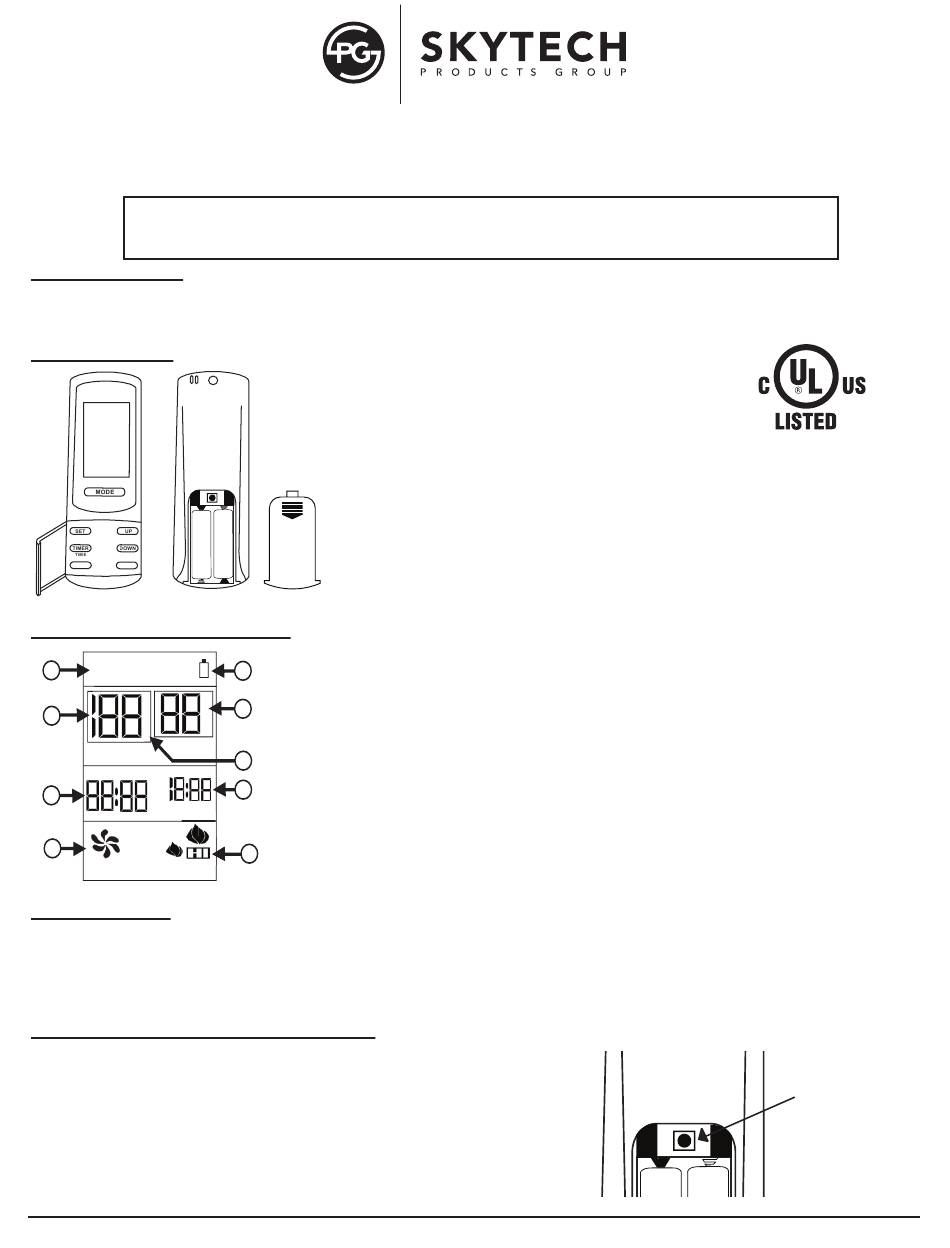

INSTALLATION AND OPERATION INSTRUCTIONS
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO
INTRODUCTION
This remote control system was developed to provide safe, reliable, user-friendly remote control system for gas appliances. It is a dry
contact thermostat system that can manually operate fan speed and flame height from the transmitter.

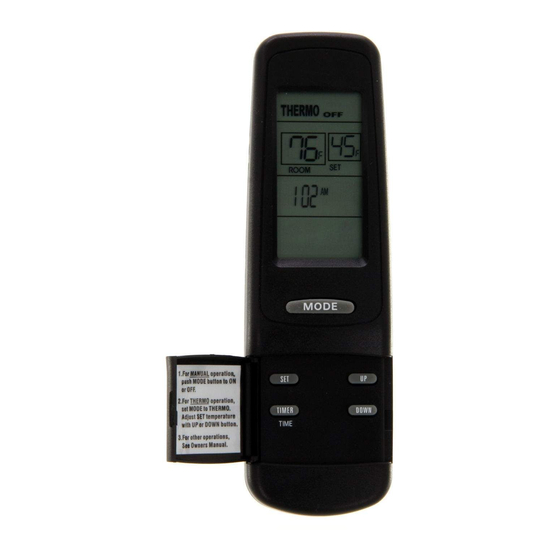

TRANSMITTER
+
FAN
FLAME
-
LIQUID CRYSTAL DISPLAY - LCD
ON
THERMO
3 X
OFF
7
E
E
SET
ROOM
AM
6
PM
TIMER TIMER
HI
9
MED
LOW
FAN FLAME LA AME
OFF
MODE FUNCTION
To select an operational mode, press the MODE button on the transmitter.
ON - Turns the appliance ON, the flame icon will appear on the LCD screen.
THERMO - Remote is in THERMO mode.
OFF - Turns the appliance OFF, the flame will disappear from the LCD screen.
SETTING ºFAHRENHEIT / ºCELSIUS SCALE
The factory setting for temperature is degrees fahrenheit (ºF). To change this
setting to degrees Centigrade (ºC):
• Remove battery cover on the back of the transmitter and locate the setting
button in the top center of the battery compartment.
• Push the button once to enter temperature scale setting mode.
• Use the up and down buttons to switch between the ºF and ºC.
• Push the setting button again once again to set the displayed temperature
scale.
• Repeat this procedure to switch back to ºF.
Skytech: RCT-MLT-IV
MODEL: RCT-MLT IV
NOT ATTEMPT TO INSTALL OR OPERATE
The transmitter operates on (2) AAA 1.5V batteries that are included. Install the AAA
batteries supplied with the unit into the battery compartment. It is recommended
that ALKALINE batteries always be used for this product. Be sure the batteries are
-
installed with the (+) and (-) ends facing the correct direction.
If the transmitter does not illuminate when you press any buttons, or you see nothing
+
on the LCD screen, check the position of the batteries.
1
1. Low Battery Indicator - Battery power is low, replace batteries within two weeks.
4
2. Timer - Time remaining before the system shuts off, must be programmed.
3. Mode - Indicates whether the system is ON, OFF, or in THERMO mode.
4. Set - Indicates the desired SET temperature when in THERMO mode.
8
5. Flame - Indicates burner/valve operational.
6. Clock - Indicates current time.
2
7. Room - Indicates current ROOM temperature.
8. ºF - Indicates degrees Fahrenheit (ºC indicates degrees Celsius).
9. Fan - Indicates the fan is ON, or is programmed to come ON.
5
E474962
SETTING
BUTTON
-
+
REV. 3-26-19 Page 1
