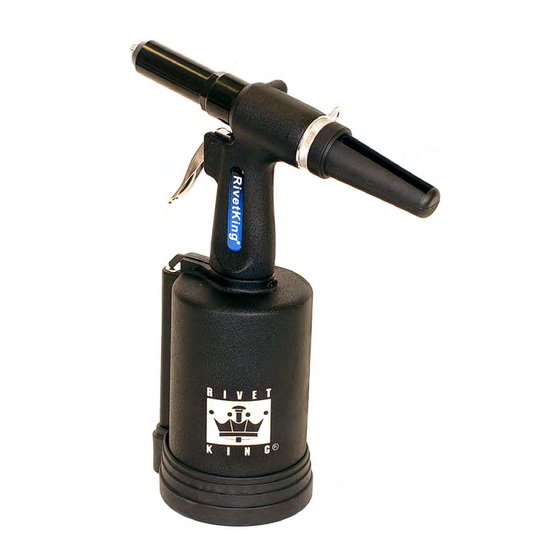

- Page 1 Instruction Manual Model# RK-250 FOR SALES, SERVICE OR TECH SUPPORT CALL: 1800-BUY-RIVET 1-800-289-7483...
-
Page 2: Table Of Contents
ONTENTS Features Page 3 Safety Page 3 Specifications Page 3 Air supply Page 4 Operation Page 4 Jaw Cleaning Procedure / Jam Remedy Page 5 Maintenance / Service Page 6 Oil Change/Replacement Procedure Valve Spool Assembly Trigger Preventive Maintenance Page 7 Daily Weekly Monthly... -
Page 3: Features
The specifications and information contained in this manual are applicable only to the tool with which it was supplied. Industrial Rivet & Fastener Co reserve the right to make any changes without notice as part of Industrial Rivet & Fastener Co policy of continuous improvement. RK-250 R PECIFICATIONS FOR IVET... -
Page 4: Air Supply
AIR SUPPLY The rivet tool is powered by compressed air at an optimum pressure of 5.5 bar (80 psi) The use of a pressure regulator filter/lubricator unit within 3 meters of the tool is highly recommended to extend the life of the tool. Dirt and/or water in the air supply can seriously impact the performance and durability of the tool;... -
Page 5: Jaw Cleaning Procedure / Jam Remedy
AW CLEANING PROCEDURE JAMMED GUN REMEDY 1. Disconnect tool from air supply 2. Leaving the nose piece attached, remove the nose case 2 using the wrench provided by loosening at the wrench point. 3. Fit two wrenches, one on Jaw Case 03 and the other on 08 keeping the nut 09 stationary while unscrewing the jaw casing 03. -
Page 6: Maintenance / Service
AINTENANCE Oil Priming Procedure After 100,000 cycles, or when the tool loses enough stroke and/or power to place rivets in one actuation, a priming procedure may be required. Please use the oil provided with the tool. Replacements are available at 1-800-BUY-RIVET. ... -
Page 7: Preventive Maintenance
REVENTIVE AINTENANCE In order to maintain the tool in a safe working order it is important to carry out regular maintenance as prescribed by the manufacturer. A thorough inspection replacement of all seals within the tool should be carried out after 500,000 placings or annually, whichever is the sooner. Item numbers in parentheses refer to assembly drawing part numbers Daily ... -
Page 8: Schematic
SCHEMATIC... -
Page 9: Part List
Part List... -
Page 10: Oil Msds
Wear eye protection, impervious gloves (e.g. of PVC) and a plastic apron. Use in well ventilated area. Storage No special precautions. Priming Kit To enable you to follow the priming procedure opposite, you will need to obtain a priming kit: PRIMING KIT: RK-250 PART NO DESCRIPTION Mobil DTE 24 HO-B Refill Bottle... -
Page 11: Troubleshooting
ROUBLESHOOTING Item numbers in parentheses refer to assembly drawing part numbers on page 9. Problem Possible Cause Remedy More than one Air leak Tighten joints or replace components operation of the trigger Insufficient air pressure Adjust air pressure to within ... -
Page 12: Warranty
Warranty Statement: Industrial Rivet & Fastener Co. Inc. (hereinafter “IRF”), hereby warrants to the initial retail customer and original distributor (“Warrantee”) only that its products will be free from defects in material and workmanship for a period of 1 year from the purchase date, provided that the products are used in accordance with “IRF’s”...
