User Instruction Manual

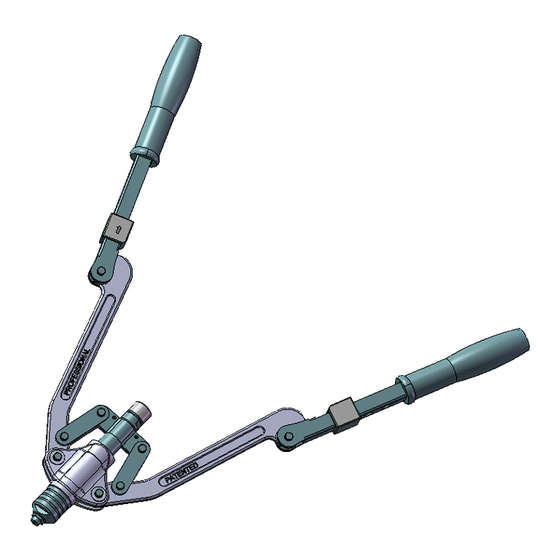

Model# RK21
RK21-M
FOR SALES, SERVICE OR TECH SUPPORT CALL:
1800-BUY-RIVET
or
1-800-289-7483
WWW.RIVET.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RK21 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rivet King RK21

  • Page 1 User Instruction Manual Model# RK21 RK21-M FOR SALES, SERVICE OR TECH SUPPORT CALL: 1800-BUY-RIVET 1-800-289-7483 WWW.RIVET.COM...
  • Page 2: Table Of Contents

    ONTENTS Safety Page 3 Specifications Page 3 Jaw Maintenance and Replacement Page 4 Conversion to Blind Rivets Page 5 Conversion to Rivet Nuts Page 6 To Install Rivet Nuts Page 7 To Install Rivet Blind Rivets Page 8 Schematic Page 9-10 Troubleshooting Page 11 Warranty...
  • Page 3: Safety

    Industrial Rivet & Fastener Co policy of continuous improvement. RK-21 R PECIFICATIONS FOR IVET Model# Description Rivet Nuts Rivets RK21 Inch Tool #8-32, #10-32, ¼-20”, 1/8”, 5/32”, 3/16”, ¼” 5/16”-18, 3/8-16” RK21-M Metric Tool M4,M5, M6, M8, M10 3.2, 4.0 , 4.8, 6.4 #8-24, #10-24, 1/4-28”,...
  • Page 4: Jaw Maintenance And Replacement

    AINTENANCE AND EPLACEMENT 1) Remove Nose Piece barrel using wrench provided. 2) Remove Jaw Case using 2 wrenches provided by securing the mandrel lead and removing the jaw case. 3) Remove the threaded male plug with a slotted screw driver. This will expose the Jaws.
  • Page 5: Conversion To Blind Rivets

    ONVERSION TO IVET 1) Remove Nose Piece barrel using wrench provided. Store the nose piece barrel and nose piece in the blow mold case for future use. 2) Remove Jaw Case using 2 wrenches provided by securing the mandrel lead and removing the jaw case.
  • Page 6 ONVSION TO LIND IVETS 1) Loosen hex nut and remove nose piece with the wrenches provided. Store in the blow molded case for future use. Remove the rivet nut nose adapter and mandrel with wrench provided and store in the blow molded case for future use. 2) Install Jaw Case Assembly using 2 wrenches provided by securing the mandrel lead and removing the jaw...
  • Page 7: To Install Rivet Nuts

    NSTALL IVET 1) Insure mandrel size is fit for the rivetnut size you wish to install. 2) Adjust the nose piece so that the rivet nut (when threaded on to the mandrel), is flush with the mandrel while the handles are in the open position.
  • Page 8: To Install Rivet Blind Rivets

    NSTALL LIND IVETS 1) Then select the nose piece according to the desired rivet to install and tighten using the wrench provided. The sizes are stamped on the side of the nose pieces. 3.2 = 1/8” 4.0 = 5/32” 4.8 = 3/16” 6.4 = ¼”...
  • Page 9: Schematic

    SCHEMATIC...
  • Page 11: Troubleshooting

    ROUBLESHOOTING Item numbers in parentheses refer to assembly drawing part numbers on page 9. Problem Possible Cause Remedy Blind Rivet - Wrong Nose Piece Replace with a snug fitting nose   Jaws will not release Tool Handles not opened completely piece or according to the rivet ...
  • Page 12: Warranty

    Warranty Statement: Industrial Rivet & Fastener Co. Inc. (hereinafter “IRF”), hereby warrants to the initial retail customer and original distributor (“Warrantee”) only that its products will be free from defects in material and workmanship for a period of 1 year from the purchase date, provided that the products are used in accordance with “IRF’s”...
