STEP 3 – CHANGING THE SIGNAL IN
THE CAMERA
1. The camera supports HD-Analog, HD-CVI and HD-TVI signals. To
switch between the signals:

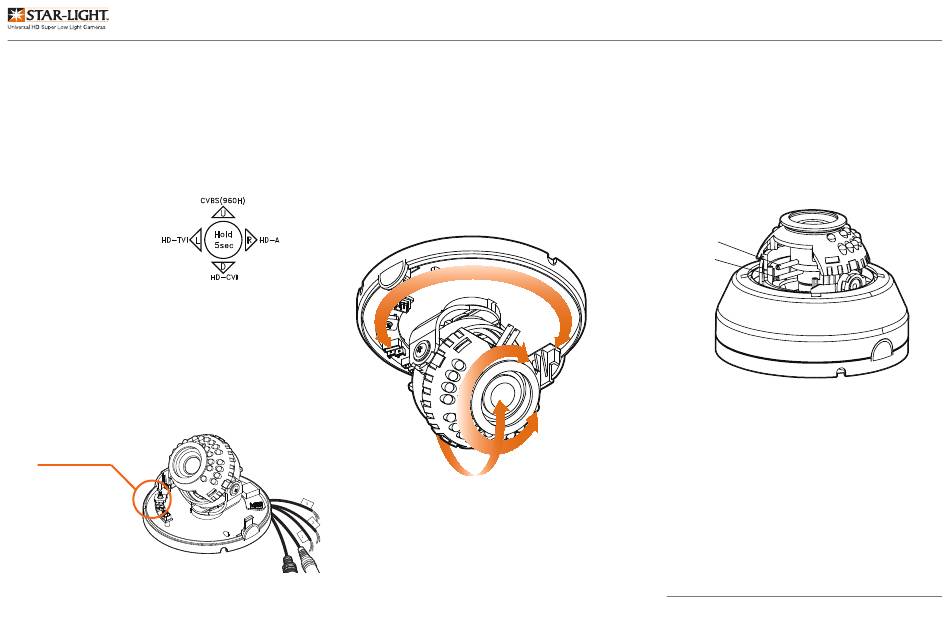

a. Remove the camera's dome to access the joystick and OSD
control on the base of the camera.
b. Use the OSD Switch to switch the camera's signal.
- To switch the camera to
HD-TVI mode, press OSD
joystick to the left
for 5 seconds.
- To switch the camera to
HD-Analog mode, press OSD
joystick to the right
for 5 seconds.
- To switch the camera to CVBS
mode, press OSD joystick up
for 5 seconds.
- To switch the camera to
HD- CVI mode, press OSD
joystick down for 5 seconds.
OSD joystick controller
STEP 4 – INSTALLING THE CAMERA
1. Once all cables have been connected, use the screws included with
the camera to properly mount and secure the camera to the mounting
surface.
2. Adjust the camera's pan, tilt and position to achieve the desired view.
The cameras' max angles are:
Pan: 0° ~ 360°
Tilt: 0° ~ 70°
Rotation: 0° ~ 360°
Panning 360°
Rotation 360°
3. To adjust the camera's focus and zoom:
a. Unlock the zoom or focus screws by rotating them
counter-clockwise.
b. Adjust the zoom and focus screws at the base of the camera
module to achieve a clear image.
c. Tighten the screws and close the front case by rotating it
clock-wise.
FOCUS
ZOOM
4. Once the installation is complete, remove the protective film from the
camera's dome cover.
Titling 70°
