SonicWall® SuperMassive™ 9800 Rail Kit
Installation for Rack Mounting
This document provides illustrated rack mounting instructions for your
SonicWall SuperMassive 9800 network security appliance.
To install the rack mounting kit for the SonicWall SuperMassive 9800,
complete the following steps:

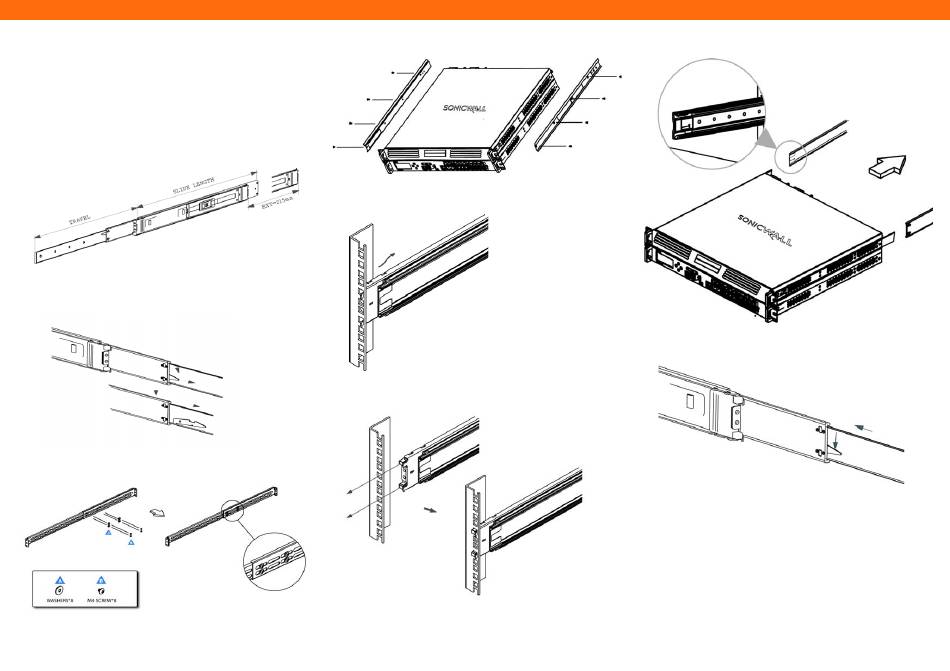

1
Assemble the slide rail.
2
Extend the slide rails.
3
Remove the chassis member from the slide rails.
4
Assemble the chassis rails using four (4) M4 screws and washers.
5
Mount the chassis rails to the chassis with eight (8) M4 screws.
6
Attach the bracket to the rails by inserting the barb into the square
hole.
7
Put the plastic inserts into the square holes to secure the rails.
8
Install the chassis by sliding it into the frame.
9
Press the lever down to release the slide.
Installation du kit de rails pour montage
sur bâti de l'appareil
Ce document fournit des instructions illustrées pour le montage sur
bâti de votre appareil de sécurité réseau SonicWall SuperMassive
9800.
Pour installer le kit de montage sur bâti du SonicWall SuperMassive
9800, suivez les étapes suivantes :
1
Assemblez les glissières.
