Brightness(Intensity) Adjust; (Correlated Color Temperature) - ALPHA LITE E Series User Manual

[Setting] Brightness & CCT Adjust

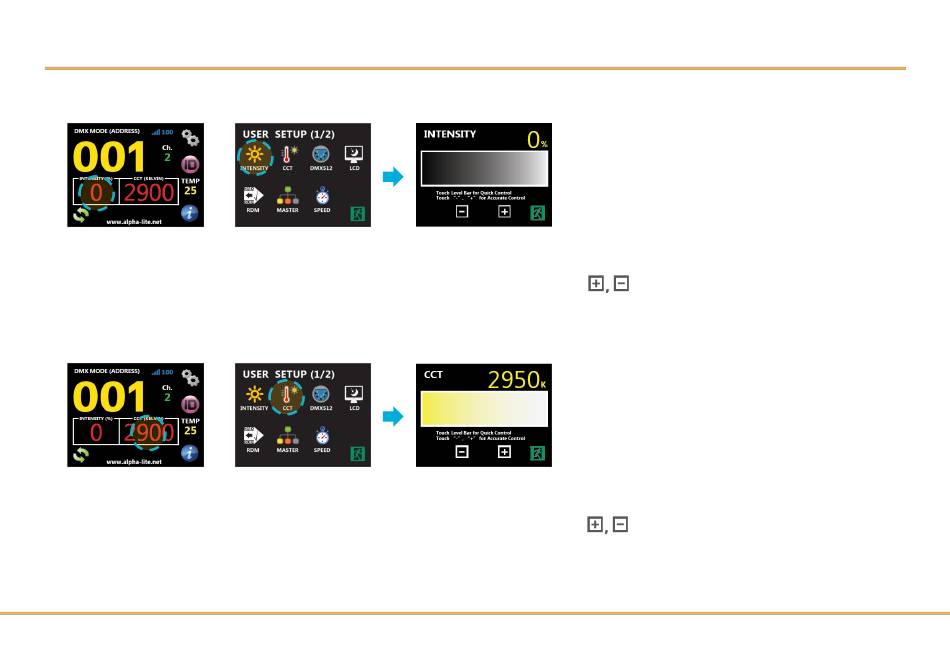

■ Brightness(Intensity) Adjust

OR
The number indicates the current brightness value of the fixture and is displayed from 0 to 100%.
Touch 'Intensity' on the main screen or the setting screen to adjsut the brightness value.
Touch the gradient bar to apply it close to the desired value, and then touch
■ CCT(Correlated Color Temperature) Adjust
OR
The number indicates the current color temperature value of the fixture and is displayed from 2,900 to 6,000K.
Touch 'CCT' on the main screen or the setting screen to adjsut the color temperature value.
Touch the gradient bar to apply it close to the desired value, and then touch
* In 1-channel mode, user can set the desired color temperature by touching here.
In 2-channel mode, displays the color temperature value set by the channel setting.
- 21 -
to set the correct value.
to set the correct value.
