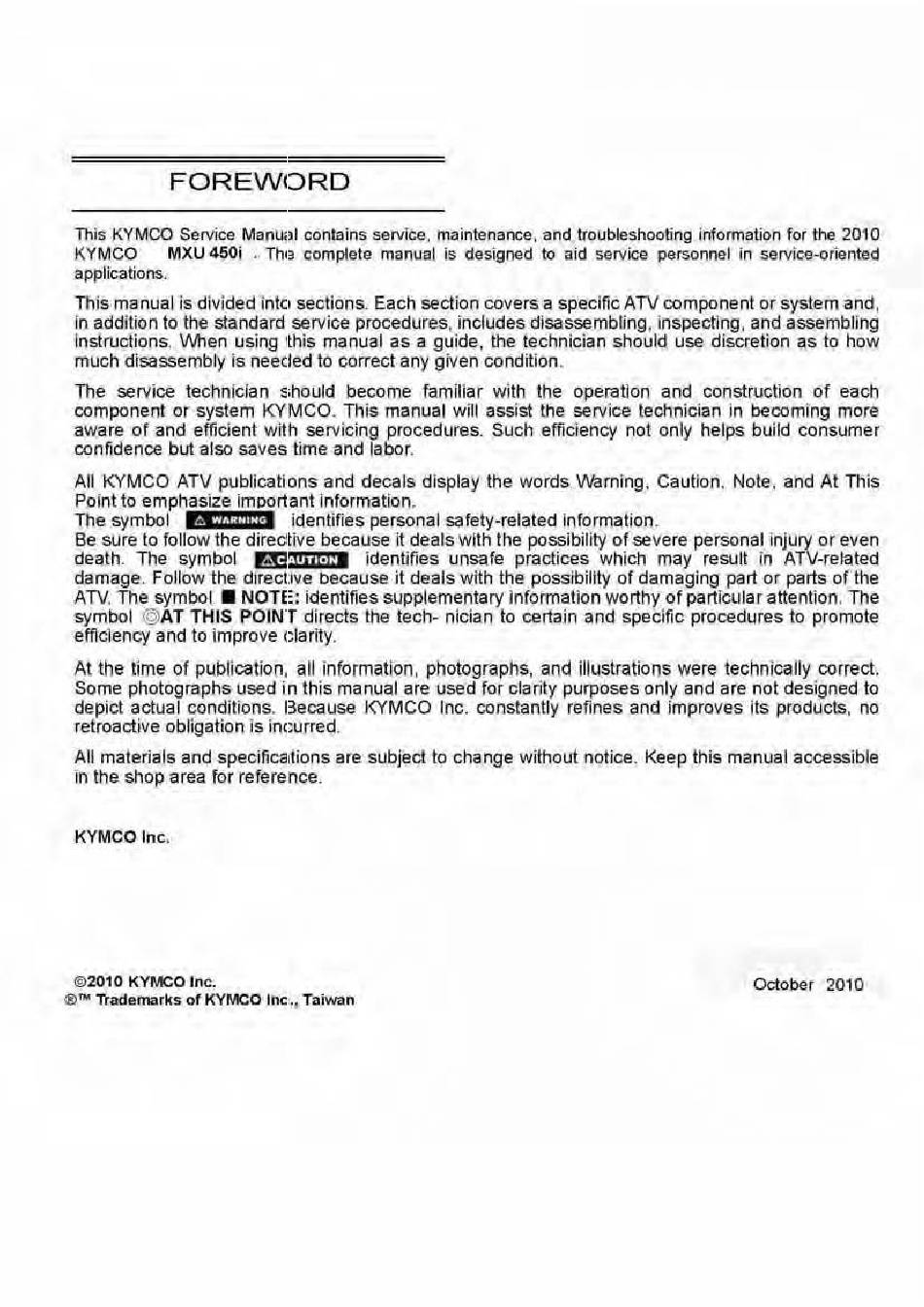

F
O
R
E
W
O
RD
This
I<YMCO
Service MaOUill
con!Q ins
service,
maintenance,
and troubleshooting information
for the
2010
KYMCO
MXU
4Q0i
.
Tho3
complete
manual
is
des\gned to
aid service
.
.personnel in service-or1ented
applications.
This manual
is
divided
intco
sections.
Each section
covers
a specific ATV
component or system
and,
in
addition to
the
standard service
procedures,
includes
disassembling,
inspecting,
and assembling
Instructions,
\M1en using lthis manual as a
guide,
the technician should use
discretion
as
lo
how
much disassembly
is
needed
to
correct any given
condition.
The service technician ::•hould pecome familiar with the operatlon
and
construction
of
each
component
or
system
KYMCO.
This
manual
will assist tl'le service technician
In
becoming
more
aware
of
and
efficient
With servicing procedures. Such efficiency no!
only
helps build consumer
confidence but also saves time and
labor.
All
KYMCO
ATV publications and decals display the words
warnrng, Cautton.
Note. and
At
This
Point
to
emphasize imoortant
information.
The
symbol @i!Hilii!J
Identifies
personal
safety-related
Information.
Be
sure to follow the directive because it deals
With the
possibility of severe personallnjury or even
death.
The symbol
E
'
·
"ii!·lll
identifies
unsafe practices
which may result in ATV-re
lated
damage.
Follow the dfrecbve because it deals
with the
possibility of damaging part or parts of
the
ATV.
The
symbol
•
NOTE:;
identifies supplementary
lnformaiion worthy
of particular
attention.
The
symbol
@AT THIS
POINT
directs the tech- nician to
certain
and specific procedures
to
promote
efficlency and to
improve
clarity.
At the time of publication, all
information,
photographs, and illustrations
were
technically correct.
Some photographs used
in this
manual are used
for clarity
purposes only and are not designed to
depict actual
conditions.
Because
KYMCO
Inc. constantly refines and
improves its
products,
no
retroactive obligation
is
i!'l(lllrred.
All materials and
specificaotions
are
subject
to change
without
notice.
Keep this manual
accessible
m
the shop area
for
reference.
KYMCO
Inc.
®
2010 KYMCO hie.
October
2010
®
""
Trademarks
of
KYMCO Inc., TaiWan
