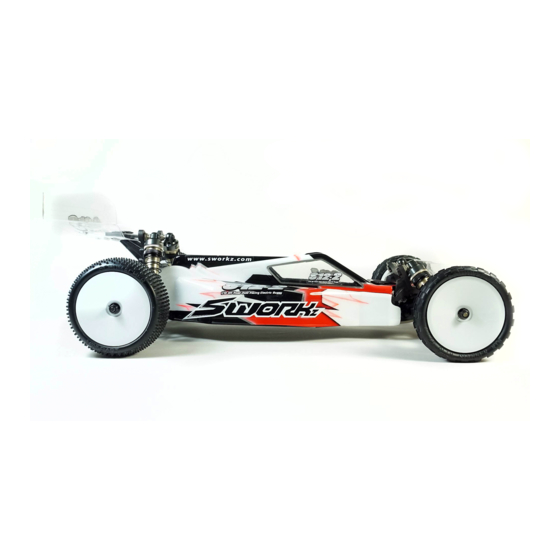

  • Page 2 The S12-2 comes with a 4mm Carbon front shock tower and a completely new designed front C-Hub geometry. Adjustable Ackermann plate and Carbon steering plates are already in the kit too. The S12-2 has got new angled lower arms that provide a lower Shock position which leads to a lower center of gravity.
  • Page 3 Contact your local hobby shop or SWORKz distributor for all claims and questions. Claims must be well documented. All Claims are subject to expert examination approval by SWORKz.
  • Page 4 Required equipment for operation Operation guide Assembly steps 7-26 Blank set-up sheet Set-up sheet S12-2 key no. list 29-30 S12-2 spare part list S12-2 option parts list Explosion view with spare parts number 34-35 This radio control racing car is not a toy! This high-performance R/C model is recommended for ages 14 and older.
  • Page 5 R e q u i re d Equ ip me nt fo r O p erat io n Radio Gear Stick Type Receiver ESC system Steering servo Wheel & Trigger Type Breshless Motor Charger and LiPo Battery Tools Recommended Long nose pliers Side cutter 1.5mm Paint...
  • Page 6 The SWORKz S12-2 is a high performance radio control model which needs to be operated with caution and common sense. The S12-2 Pro Kit is not intended for children under the age of 14 without adult supervision. SWORKz shall not be held liable for any loss or damages, whether direct, indirect, act of nature, arising from abuse or misuse of this product or any other product required.
  • Page 7 10x12x0.1mm S104 Shim 106014 106014 106014 M2x6mm Hex Socket OH/TP Screw 610017 330279 Bevel Gear Shaft 101025-02 330279 330278 330278 101025-02 Shim 3.5x10x0.2mm 330279 101025-02 Fill the differentials with oil up to 80% full.Use SWORKz diff. Oil 7000 cps for the Diff.
  • Page 8 220041 330283 332006 Pin M2x10mm 108006 108006 M3x8mm FH/ST HEX Screw 610013B08 332005 S12-2 Slipper Clutch Adjust Screw 2.4x60mm 108006 610013B08 332019 220031-81 332005 332020 330283 106015 220042(#4) 116010 354003-36 106015 M3x5mm Hex Socket OH/TP Screw 116010 116010 Ball Bearing 5x10x4mm...
  • Page 9 101012 103001 106002 220040 M3x10mm Hex Socket OH/TP Screw 106001 106003 115188 M3x16mm Hex Socket OH/TP Screw SWORKz 1/10 Slipper Clutch Spring (D1.4x12mm) 115189 SWORKz 1/10 Slipper Clutch Spring (D1.6x12mm)(RD) 220044 106002 M3x10mm Hex Socket OH/TP Screw 342001 220041 106002...
  • Page 10 220045(#0) M3x12mm Hex Socket OH/TP Screw PRO TIP: The part 220045 (S12-2 Gear Box Inserts) can be put in 4 different degrees. The basic position to start is zero degree which is the lowest position to the chassis. You can change to +1, +2 or +3 degree for lower grip conditions.
  • Page 11 OPTION: SW-220037H S12-2 Side Guard Set in Pro-composite Hard Material 108003 220043 M3x10mm FH/ST HEX Screw 220037 108006 M3x8mm FH/ST HEX Screw 332001 108006 PRO TIP: 108003 The 108006 (M3x8 HEX screws) for the side guard helps adjust the chassis stiffness. With all the screws (7pcs) on, this will be the most stiff set up for the chassis and will provide the least grip.
  • Page 12 Steering Linkage Ball Stud 5mm 116015 116015 Ball Bearing 5x8x2.5mm 117003 332013 220040 101007 Flange Ball Bearing 3x6x2.5mm 101007 330331 Washer 3x8x0.5mm 117003 117003 106002 108001 M3x12mm FH/ST HEX Screw 220039 OPTION: SW-332009 S12-2 Brass Front Lower Arm Balance Holder (25g) 108001...
  • Page 13 M3x8mm FH/ST HEX Screw 330331 106002 104012 101012 108006 M3x12mm Set Screw 2502401BK 104012 101012 Washer M3x6xT0.5mm 101026 SWORKz Aluminum Washer 3X6X1.5mm 330331 Steering Linkage Ball Stud 5mm 108006 2502401BK 342002 220039 108003 106002 M3x10mm FH/ST HEX Screw 106017 106002...
  • Page 14 104004 104004 M3x3mm Set Screw 220040 220035 108005 330537 Rear Hub Carriers Hinge Pin OPTION: SW-220035H S12-2 Front Lower Arm Set in Pro-composite Hard Material 16mm 16mm 14mm 14mm 106010 M3x6mm FH/ST HEX Screw Right 106001 332014 M3x8mm Hex Socket OH/TP Screw...
  • Page 15 330536 106020 220035 106014 M2.0x6mm Hex Socket OH/TP Screw 212001 338011 S12-2 Rear CVD Drive Shaft Set 62mm SWORKz Pinion Gear Stopper (5x7x5.1mm) 330283 Pin M2x10mm PRO TIP: Right The part 220046 has 3 Rear Hub Inserts that come in different types which offers several different rear hub angles.
  • Page 16 220047 106020 Right M2.5x5mm Hex Socket OH/TP Screw 104002 220036 101026 SWORKz Aluminum Washer 3X6X1.5mm 101026 220047 106020 220036 334022 220036 Left 332007 108006 M3x8mm FH/ST HEX Screw 108006 330525 332008 2503210A 220036 220036 108006 2503210A...
  • Page 17 Steering Linkage Ball Stud 5mm 106010 104005 106002 330156A 104005 M3x10mm Hex Socket OH/TP Screw 106010 220042 M3x6mm FH/ST HEX Screw 101026 220040 SWORKz Aluminum Washer 3X6X1.5mm OPTION: SSW-332029 S12-2 Aluminum Rear Upper Linkage Mount 108003 M3x10mm FH/ST HEX Screw 108003 108003...
  • Page 18 2502401BK(#5) 330300 2502401BK(#4) 2502401BK(#5) 330300 2502401BK(#4) (U.A.L.) (U.A.L.) 17.6 mm 17.6 mm (S.T.) (S.T.) 20.40 mm 20.40 mm (Upper Arm Linkage) (Upper Arm Linkage) 330300 Rear Upper Sus. Arm Turnbuckles (Steering Linkage) (Steering Linkage) 18.0 mm 18.0 mm 2502401BK(#4) 2502401BK(#5) 330300 330643 Steering Linkage Ball Stud 5mm...
  • Page 19 Front Rear 334031 Shock Shaft L 106014 106014 (F) 354005 M2x6mm Hex Soket OH/TP Screw (R) 354006 334032 101011 Shock Shaft S 214003 Shock Washer 3.3x6.5x2.5mm (S) 334031 (L) 334032 101011 Shock Washer 2.6x6x0.5mm 214003 Shock Washer 3.3x6.7x1mm (S) 334040 (L) 334041 410049 214003...
  • Page 20 SWC-115160 S14/S12 Black Competition Rear Shock Spring (L4-Dot)(57X1.1X7.5) dirt covers with a SWC-115161 S14/S12 Black Competition Rear Shock Spring (L3-Dot)(57X1.1X8.0) RC curve scissors. SWC-115185 S12-2 Black Competition Front Shock Spring (US4-Dot)(38X1.2X6.0) SWC-115187 S12-2 Black Competition Front Shock Spring (US2-Dot)(38X1.2X7.25)
  • Page 21 105021 105021 M3x6mm Taper head screw 108001 334002 M3x12mm FH/ST HEX Screw 106005 M3x15mm Hex Socket OH/TP Screw 101020A 101020A 3mm Countersunk Washers (GM) 108001 334002 Aluminum Shock Cap Stud 106005 108001 105021 M3x6mm Taper head screw 101020A 108001 M3x12mm FH/ST HEX Screw 334002 106008 M3x12mm Hex Socket OH/TP Screw...
  • Page 22 104004 200193 ESC is not included ESC is not included 104004 M3x3mm Set Screw Receiver is not included Receiver is not included 108028 M2.6x4mm Flat Head Screw - Hex Socket 220042 108028 106008 220043 106008 M3x12mm Hex Socket OH/TP Screw 106008 220043 PRO TIP:...
  • Page 23 106009 106002 106009 220043 220043 Li-po Shorty Peak is not included Li-po Shorty Peak is not included 106002 M3x10mm Hex Socket OH/TP Screw 106009 M3x25mm Hex Socket OH/TP Screw 610024 610024 103002 Flange M4 Nut Lock Tire Not included Tire Not included 103002 220026WH 220025WH...
  • Page 24 108007 101020A 101020A 108007 M3x6mm FH/ST HEX Screw 252002-65 101020A 3mm Countersunk Washers (RD) 108003 220024 108003 M3x10mm FH/ST HEX Screw 250042 PRO TIP: Part 220024 Rear Wing Mount 220024(#0) Spacer can be adjusted to 3 different rear wing angles. (-3/0/3 degrees)
  • Page 25 Body shell painting preparation 252001 Use body scissors to cut along the body lines. Use water/washing solution to clean body. Apply window masks as shown. 252001 Paint body.
  • Page 26 Cut and put 0.8x5cm loop decal strap in same position as side Guard fillister. 540004A 540004A Cut and put 0.8x5cm hook decal strap in this side Guard fillister. Cut and put 0.8x3cm hook decal strap in this 540004B side Guard fillister. 540004B Cut and put 0.8x5cm hook decal strap...
  • Page 27 Race time / Lap: Best lap: SET-UP SHEET Diff. Oil Diff. Type Track Conditions Name: Size: Open Med. Tight Rear: Date: Gear Diff Traction: High Med. Ball Diff Track: Surface: Smooth Med. Bumpy Electric System Tire Front Rear ESC Type: Motor Type: Type: Type:...
  • Page 28 Schumacher Maclan V2M 6.0T Motor Type: Type: Type: 81/21 T Motor Gear/Spur Gear: Foam: Foam: Maclan 6000 mAh Battery Type: Front Suspension SWORKz 550 Oil: ___ mm Spacer: 85.8 2Hx1.6mm Pistons: Cam ber: mm ( US 3-Dot Spring: Upper (...
  • Page 29 SWORKz 1/10 Eccentric Busshing Set 2 SW-2503210A 330331 S104 Steering Linkage 5mm Ball Stud (L4.1mm) 3 SW-330331 220025WH SWORKz 1/10 2WD Off Road Competition Front Dish Wheel (WH) 2 SW-220025WH 330410 Motor Gear 21T 1 SW-330410 220026WH SWORKz 1/10 2/4WD Off Road Competition Rear Dish Wheel (WH) 2 SW-220026WH...
  • Page 30 S12-2 Front Sway Bar 1.0mm 1 SW-115172 115177 S12-2 Rear Sway Bar 1.3mm 1 SW-115177 115188 SWORKz 1/10 Slipper Clutch Spring (D1.4x12mm) 1 SW-115188 115189 SWORKz 1/10 Slipper Clutch Spring (D1.6x12mm)(RD) 1 SW-115189 116010 Ball Bearing 5x10x4mm 10 SW-116010 116013...
  • Page 31 SWORKz 1/10 Eccentric Busshing Set SW-250042 SWORKz 1/10 sonic wing 6.5" SW-220025WH SWORKz 1/10 2WD Off Road Competition Front Dish Wheel (WH) (4PC) SW-252001 S12-2 Eaglet ST-2 Clean Body Shell SW-220026WH SWORKz 1/10 2/4WD Off Road Competition Rear Dish Wheel (WH) (4PC) SW-252002-65 SWORKz 1/10 sonic front lexan wing "65mm"...
  • Page 32 S14-3 12mm Wheel Hex (5.7mm)(Option)(2PC) SW-334038 S14-3 12mm Wheel Hex (6.7mm)(Option) SW-334047BK SWORKz T-7075 M4 Lightened Low Profile Large-contact with Serrated Wheel Nuts (BK)(6pc) SW-334047GM SWORKz T-7075 M4 Lightened Low Profile Large-contact with Serrated Wheel Nuts (GM)(6pc) SWC-115160 S14/S12 Black Competition Rear Shock Spring (L4-Dot)(57x1.1x7.5) SWC-115161 S14/S12 Black Competition Rear Shock Spring (L3-Dot)(57x1.1x8.0)
  • Page 34 Par t s No. L is t Expl o de d View Shock Absorbers 103002 220026WH Front Rear 108029 330546 108029 330546 220046 2501807 106014 2502401BK 2501807 330643 330300 338011 2502401BK 334041 334040 220036 116019 116010 334010 220038 106014 220036 106014 354005 334022...
  • Page 35 108003 220024 250042 250001 220024(#0) 106002 220044 108001 101020A 104005 106010 220042 330283 106010 106002 334002 101020A 330643 332005 106015 220041 105021 220042 101026 106002 220040 105021 101026 220045 106015 106002 104004 220042 330315 106002 332020 330315 115177 332019 220047 104004 610013B08 101026...
  • Page 36 502001 Production No. 33020203...
