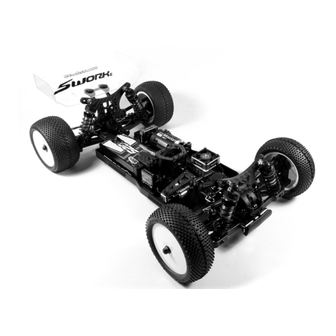

  • Page 2 I NS T RU C T I O N The SWORKz S14-4D (Dirt Edition) 1/10 4WD is designed for pure racing. It is an evolution from the successful S14-3D and S14-4C platform. The new geometry of the car provides optimized corner speeds and easy handling on carpet and very high grip tracks.

  • Page 3: Specification

    Contact your local hobby shop or SWORKz distributor for all claims and questions. Claims must be well documented. All Claims are subject to expert examination and approval by SWORKz.

  • Page 4: Required Equipment For Operation

    I N D E X Instruction Warranty Index Required equipment for operation Operation guide Assembly steps 7-27 Set-up sheet S14-4D key no. list S14-4D spare parts list S14-4D option parts list Exploded Views 32-35 End cover This radio control racing car is not a toy! This high-performance R/C model is recommended for ages 14 and older.
  • Page 5 Modeling knife SW-620020-25 SWORKz SST-Pro 2.5mm HEX Wrench Instant cement Thread lock Double-sided tape SW-620025 SWORKz SST-Pro Shorty 7.0mm Socket Driver SW-620026 SWORKz SST-Pro Shorty 5.5mm Socket Driver Included items 4 / 5 / 5.5 / 7mm wrench Hex wrench 0.05 inch...
  • Page 6 The S14-4D Pro Kit is not intended for children under the age of 14 without adult supervision. SWORKz shall not be held liable for any loss or damages, whether direct, indirect, act of nature, arising from abuse or misuse of this product or any other product required.
  • Page 7 M2.6x10mm FH/ST HEX Screw 334037 S14-3 Aluminum Bevel Gear Pin 101025 610012 Washer 3.5X10X0.1mm 101025 330278 101025 330437 330278 101025 330278 330437 Fill the differentials 101025 with oil up to 80% full. Use SWORKz diff. Oil 10000cps for the front and rear Diff.
  • Page 8 106008 334001 104011 M4x4mm Set Screw (Flat Bottom) Apply a light coat of grease to 116016R the crown gear before assembly the gear box. 106008 224001 224002 M3x12mm Hex Soket OH/TP Screw 334028 224002 108001 M3x12mm FH/ST HEX Screw 101023 104011 224001 334028...
  • Page 9 330283A 400002 330282 220032-81 330277 116013 330283A 330283A 116013 Pin M2x9.8mm 330277 400002 210036 O-ring S5 4.8x1.5 400002 330282 108017 108017 116013 Ball Bearing 10x15x4mm 108017 M2.6x10mm FH/ST HEX Screw 330279 610012 Bevel Gear Shaft 330278 101025 101025 330278 101025 Shim 3.5x10x0.1mm 101025 330278...
  • Page 10 108003 2503210A M3x10mm FH/ST HEX Screw 224005S 334033 S14-3 Series Lower Arm Hinge Pin 3x52.3mm 334033 2503210A 2503210A 224005S 334033 108003 Front Eccentric Info Initial Position 1º 0.5º 0º 0.5º 1º 108003 334064 334064 334026 334064A Option 334026A 104004 M3x3mm Set Screw 104004 330156S-Red 104004...
  • Page 11 106013 M2.5x8mmH ex Socket OH/TPScrew 104005 M3x4mm Set Screw 104005 104005 106013 344013A 106002 106002 106002 M3x10mm Hex Socket OH/TP Screw...
  • Page 12 330315 330315 Sway Bar Ball Stud 224007L3.5 104002 Left 101026R 101026R 224006S 224007L3.5 S102 Aluminum Washer 3X6X1.5mm 224006S 104002 M3X10mm Set Screw Right 106010 344012A 224008 106010 M3x6mm Hex Socket OH/TP Screw 106002 M3x10mm Hex Socket OH/TP Screw 106002 Rear Eccentric Info Initial Position 1º...
  • Page 13 224001 104004 M3x3mm Set Screw 330156S-Red 114001-1.6 104004 104004 104004 106002 106002 220044 106002 106013 104005 M3x4mm Set Screw 106013 104005 M2.5x8mmH ex Socket OH/TPScrew 106002 M3x10mm Hex Socket OH/TP Screw...
  • Page 14 220024-11 106017 M3x14mm Hex Soket OH/TP Screw 334021 106008 220024-9 SWORKz 1/10 S14-3 Front C Hub Set (9 Degree) 220024-11 SWORKz 1/10 S143C Front C Hub Set (11 Degree) 214014-F75 116010R S14-4 Axle Universal Cross Drive Shaft Set 75mm Left...
  • Page 15 S102 Aluminum Washer 3X6X1.5mm 103007 334022 S14-3 Series Lower Arm Hinge Pin 3x32mm 101026R 334060-7 SWORKz 1/10 Linkage Ball Stud D5.5mm x L7mm) 334022 334060-10 SWORKz 1/10 Linkage Ball Stud D5.5mm x L10mm) 104005 Assembly Note: Axle’s position must be fit insert position.
  • Page 16 M2.5x5mm Hex Socket OH/TP Screw 334060-7 103007 M3mm Nut Lock Thim (BK) 224006H 101026R 334060-7 334060-7 SWORKz 1/10 Linkage Ball Stud D5.5mm x L7mm) 103007 330293 S104 Rear Hub Carrier Hinge pin 106020 101026R S102 Aluminum Washer 3X6X1.5mm 330293 106008...
  • Page 17 106001 Washer 3x8x0.5mm M3x8mm Hex Socket OH/TP Screw 101012 106002 Washer M3x6xT0.5mm M3x10mm Hex Socket OH/TP Screw 334061 334060-7 101015 SWORKz 1/10 Linkage Ball Stud D5.5mm x L7mm) M5x8xT0.4mm 106001 108021 108021 106001 101020A 101012 101012 101020A 101020A 3mm Countersunk Washers (RD)
  • Page 18 2502524 108006 M3x8mm FH/ST HEX Screw 400013 Shock Seal O-ring 2x2.7mm 2502524 400013 400013 400013 400013 108006 108006 106002 106002 106010 106010 M3x6mm Hex Socket OH/TP Screw 344004 220021(#1) 106002 220021(#1) M3x10mm Hex Socket OH/TP Screw 108006 M3x8mm FH/ST HEX Screw 224008(#2) 334008 334027...
  • Page 19 108006 334006 M3x8mm FH/ST HEX Screw 108003 M3x10mm FH/ST HEX Screw 2502524 108003 334006 S14-3 Center Drive Shaft 79mm 108003 108006 108006 106008 334048-1095 S14-3 Center Drive Shaft 92mm 106001 334048-1095 M3x8mm Hex Socket OH/TP Screw 106001 106008 M3x12mm Hex Soket OH/TP Screw 106001 344006 220021...
  • Page 20 334073-30 Left 334073-30 224007L3.5(#1) 224007L3.5(#3) Steering Servo Turnbuckle 101026R S102 Aluminum Washer 3X6X1.5mm 334060-7 S104 EVO Steering Linkage 5mm Ball Stud (L7mm) 334060-7 101026R 15mm ESC Not included Receiver Receiver 200193 Not included Not included...
  • Page 21 Motor Motor Not included Not included 104004 M3x3mm Set Screw 330409 106002 M3x10mm Hex Socket OH/TP Screw 104004 334070 106003 106003 106003 106002 M3x16mm Hex Socket OH/TP Screw 106006 M3x20mm Hex Socket OH/TP Screw 330409 S104 Motor Gear 19T 106002 224008 106006 Cooling Fan...
  • Page 22 Assembly Note: 108007 According to different brands servo, you can M3x6mm FH/ST HEX Screw use different servo hold holes and screws to adjust your servo position. 108007 334060-4 Steering Linkage Ball Stud 5mm 224007L3.5 104009 M3x16mm Set Screw 104009 224007L3.5 334060-4 2.15mm...
  • Page 23 Front Rear 106014 M2x6mm Hex Soket OH/TP Screw 101011 400025 Rear Shock Washer 2.6x6x0.5mm 332047-LR Front 332047-LF 220049-5 Shock seal washer 3.0x6.5x2.0mm 106014 220049-5 220050 Front Rear 400025 410049 220049-1 220049-2 Shock Seal O-ring 2x2.7mm (M) 332038-SR Shock Shaft L Front 332038-SF 224010...
  • Page 24 Front Rear 108001 101020A 334002 101020A 108001 M3x12mm FH/ST HEX Screw 101020A 334002 3mm Countersunk Washers (RD) 108001 334002 S14-3 Aluminum Shock Stud Front Rear 105021 105021 M3x6mm Taper head screw 106005 M3x15mm Hex Soket OH/TP Screw 106005 105021 103007 M3mm Nut Lock 104009 M3x16mm Set Screw...
  • Page 25 108003 108003 M3x10mm FH/ST HEX Screw 250042 220044 220044 When less down force is needed, cut the rear wing following the lines. 610024 Lipo Shorty Peak is Not included...
  • Page 26 Front Rear 103002 Flange M4 Nut Lock Wheels and Tires Wheels and Tires Are Not included Are Not included 103002 103002 Body shell painting preparation Use body scissors to cut along the body lines. Use water/washing solution to clean body. 254001 510109 Apply window...
  • Page 27 Cut and put 0.8x5cm loop decal strap in same position as side Guard fillister. 540004A 540004A 106020 Cut and put 0.8x5cm M2.5x5mm Hex Socket OH/TP Screw hook decal strap in this side Guard fillister. Cut and put 0.8x3cm hook decal strap in this 540004B side Guard fillister.

  • Page 28: Set-Up Sheet

    Race time / Lap: Race time / Lap: SET-UP SHEET SET-UP SHEET Best lap: Best lap: Diff. Oil Diff. Oil Track Conditions Track Conditions Name: Name: SWORKz Size: Size: Open Open Med. Med. Tight Tight Front: Front: Date: Date: 05/03/2023...
  • Page 29 334060-7 SWORKz 1/10 Linkage Ball Stud (D5.5mm x L7mm) 11 SW-334060-7 220021 SWORKz 1/10 S14-3 Plastic Center Chassis T-Brace Set (Standard Material) 1 SW-220021 334071-2.0 S14-4 Series Aluminum Main Chassis (2mm) 1 SW-334071-2.0 220023 SWORKz 1/10 S14-3 Front and Rear Wheel Hub Set 2 SW-220023 334073-30 SWORKz 3.5mm Steel Turnbuckle (M3.5*30mm) 4 SW-334073-30...
  • Page 30 SWORKz 1/10 Precision Plastic Shock Seal Part (2 Sets) SW-344018 S14-4 Series Pro-composite Front Carbon Fiber Shock Tower (Higher) SW-220050 SWORKz 1/10 Pro-Shock Precision Plastic Shock Cap &Seal Cap (4 Sets) SW-344014 S14-4 Series Pro-composite Carbon Fiber Steering Servo Saver Plate SW-224001...
  • Page 31 S14-3 Aluminum Rear Wheel Hub (Suit L or R) SW-334046 S14-3 Aluminum Front Wheel Hub (Suit L or R) SW-334047BK SWORKz T-7075 M4 Lightened Low Profile Large-contact with Serrated Wheel Nuts (BK)(6pc) SW-334047GM SWORKz T-7075 M4 Lightened Low Profile Large-contact with Serrated Wheel Nuts (GM)(6pc) SW-334071-2.5 S14-4 Series Aluminum Main Chassis (2.5mm) (1PC)

  • Page 32: Shock Absorbers

    Par ts No. Li st E xp lo d e d View Shock Absorbers 108029 Front Rear 220050 220050 410047 106014 108029 220049-1 410047 101011 106014 332038-SR 220049-1 101011 332038-SF 332047-LR 400014 332047-LF 330304A 400014 400019 330304A 400025 410049 220049-5 400025 220050 220050...

  • Page 33: Front Suspension

    Front Suspension 108006 106010 101020A 224007L3.5 344016 103002 224007L3.5(#1) 334060-4 224008 334067 224007L3.5(#3) 106001 224007S-25 106001 101012 334066 224007L3.5(#1) 334073-30 344015 106017 116015 224007L3.5(#2) 106010 334060-7 104009 220023 106002 101026R 334073-30 106001 108006 101007 101015 334020 103007 116015 334060-10 101012 334010 106014 106013...
  • Page 34 Par ts No. Li s t E xp lo de d Vi ew Center Transmission 254001 540004A 106002 106002 106010 106010 540004A 344004 220021(#1) 108021 106001 106003 101020A 334008 330409 101012 101020A 224008(#2) 344019-B 344019-A 334070 224008 224008 106002 334027 104004 200193 2502524...

  • Page 35: Rear Suspension
