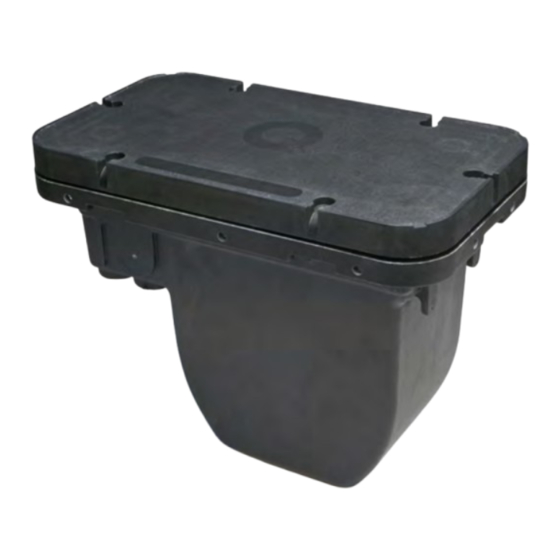

Q-tran Q-VAULT-5 Standard Installation

HOUSING DOOR:
Underside View
HOUSING:
Inside View
Door Gasket
DIMENSIONS
Top View
16.5"
6" 9"
9.25"
6"
Side View
PROJECT NAME
© 2016, Q-Tran Inc. 155 Hill St. Milford, CT 06460. All rights reserved - 203-367-8777 - sales@q-tran.com - www.q-tran.com
Q-VAULT-5
STANDARD INSTALLATION
CSA Label
Desiccant Pouch
Spare Parts
Two Four
1/2" 3/4"
NPT NPT
KO's KO's
9.5"
16.5"
9.5"
6.25"
Front View
DATE
HOUSING:
Outside View
Hole Drill Guide Label: Refer to sticker instructions provided in
installation kit bag.
Q-VAULT-5 INSTALLED
Land
Soil
CASSETTE SIZE
Q-SET 1
: Fits up to 2
Q-SET 2
: Fits 1
Q-SET 3
: Fits 1
Q-SET-eLED
: Fits up to 2
Q-SET-mLED
: Fits up to 2
Q-SET 1 ( Cassette )
2.5''
Support flaps for easy
access while wiring.
QVAULT-5 (
5.0''
NOTE: Q-SET Sold separately
COMPANY
30"
Soil
Gravel
At lowest slope for proper drainage
Housing )
TYPE NOTE
12"
4"
