Dynojet Power Commander V Installation Instructions page 4

FIG.D
FIG.E
FIG.F
I14-033 www.powercommander.com

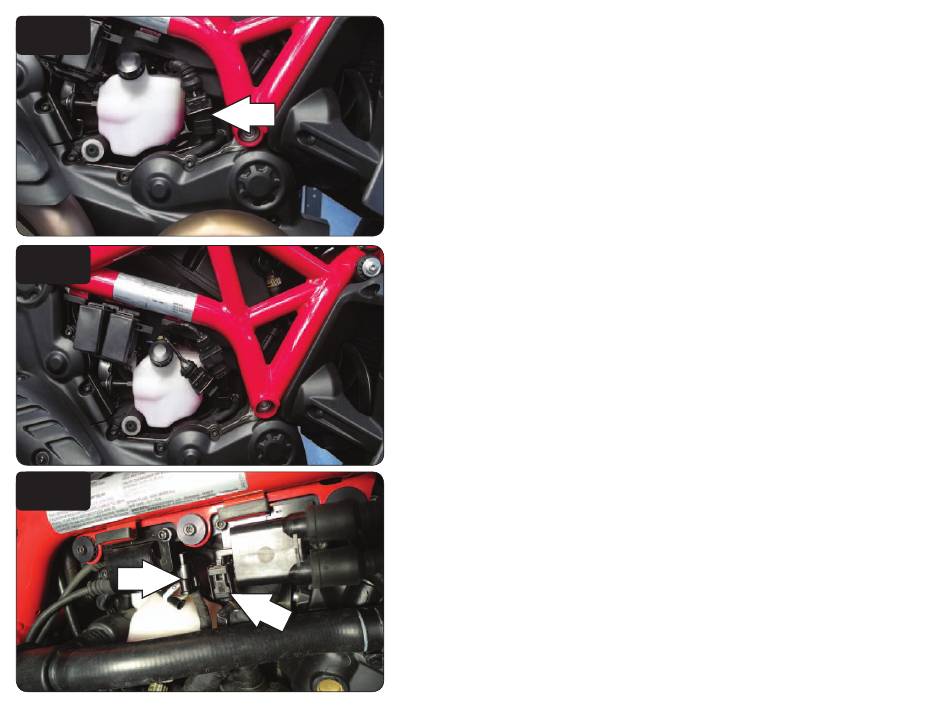

7 Unplug the stock crank position sensor connector as shown in Figure D.
This is a black 3-pin connector pair located on the right side of the engine
near the coolant overflow reservoir.
8 Attach the connectors from the PCV to the crank position sensor and stock
wiring harness as shown in Figure E.
9 Locate and unplug the stock ignition coil connectors on the left side of the
engine shown in Figure F.
2014-2016 Ducati M1200 - PCV F/I - 4
