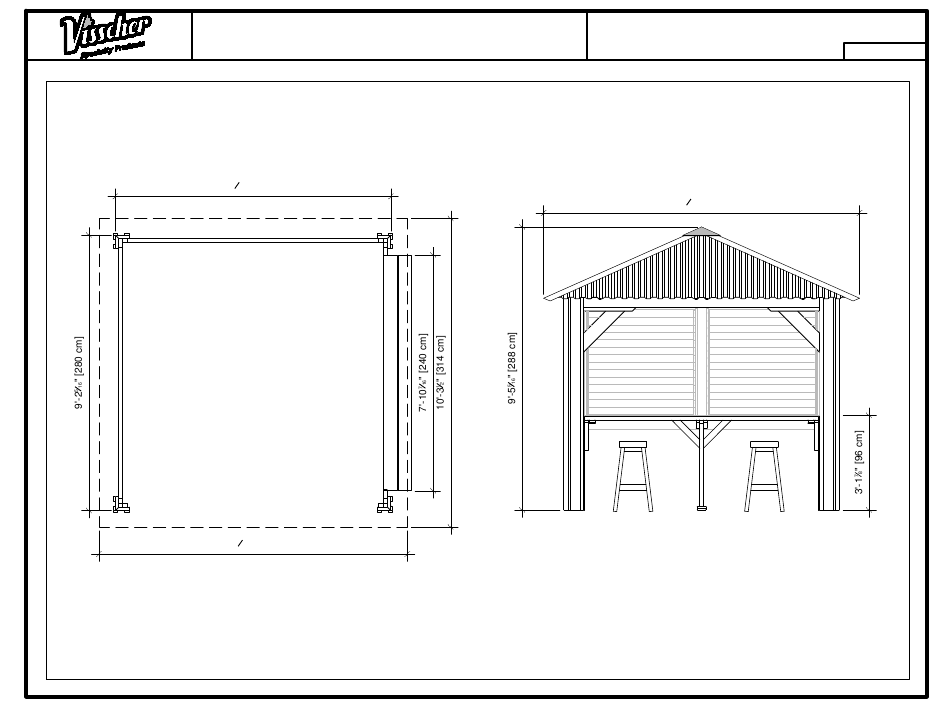

- Page 1 SIENNA INSTRUCTIONS CODE: 0095 9'-2 " [280 cm] 10'-6 " [321 cm] 10'-3 " [314 cm] TOLL FREE: 1-877-795-7423 0095_Sienna_9x9_Instructions_V1.3...
- Page 3 PROTECT THE PRODUCT FROM DAMAGE AS SOME PIECES MAY BE FRAGILE. ESTIMATED ASSEMBLY TIME: 6 HOURS IF YOU REQUIRE ASSISTANCE, OR NEED TO ORDER REPLACEMENT PARTS, CONTACT YOUR VISSCHER DEALER. FOR ADDITIONAL INFORMATION PLEASE CALL THE NUMBER BELOW. LADDER (8ft / 2.5m) PLEASE HAVE SERIAL NUMBER READY TO ENSURE QUICK SERVICE.
- Page 5 PAGE SIENNA CODE: 0095 TRUSS FRAME / FERME DE TOIT 8'-10" 1170 4'-0" 1243 1035 7'-10" 1244 4'-4" 1321 7'-2" 1041 4'-4" 1322 2'-0" 7'-11" 1413 1075 1459 2'-10" 1304 8'-10" 7'-1" 1323 1673 5'-3" 1674 1824 1825 1096 1077...
- Page 7 PAGE SIENNA CODE: 0095 STOOLS / TABOURETS 1990 1993 1992 1991 0095_Sienna_9x9_Instructions_V1.3 TOLL FREE: 1-877-795-7423...
- Page 9 SIENNA HARDWARE - QUINCAILLERIE CODE: 0095 ROBERTSON BIT/ 1 1/2" #8 FLAT HEAD (#2 ROBERTSON) EMBOUT ROBERTSON 1 1/2 PO TETE PLATE NO 8 (no 2 ROBERTSON) 185X 2 1/2" #8 FLAT HEAD (#2 ROBERTSON) 1/4" HEX HEAD BIT/ EMBOUT A TETE HEXAGONALE DE 1/4 PO 3/4"...
- Page 11 Step One SIENNA DC-1041 ATTACH TWO POSTS (DEALER CODE 1041) TO ONE LOUVER PANEL (DEALER CODE 1035) PLACING THE LEFT SIDE OF THE LOUVER PANEL TIGHT ON THE INSIDE OF THE POST. TEMPORARILY ATTACH THE LOUVER PANEL TO THE POST USING TWO 2 1/2" SCREWS.
- Page 12 Step Two SIENNA PLACE THE SECOND LOUVER PANEL (DEALER CODE 1035) AGAINST THE LEFT SIDE OF THE POST. TEMPORARILY ATTACH IT TO THE POST USING TWO 2 1/2" SCREWS. DC-1041 2 1/2" ROBERTSON SCREWS 2 req 0095_Sienna_9x9_Instructions_V1.3 EN TOLL FREE: 1-877-795-7423...
- Page 13 Step Three SIENNA ATTACH THE LOUVER PANELS TO THE POSTS USING TWO MENDING PLATES (DEALER CODE 1965) WITH SIX BLACK 3/4" SCREWS THROUGH THE LOUVER PANEL INTO THE POST. MAKE SURE THAT THE OUTSIDE EDGE OF THE LOUVER PANEL IS TIGHT TO THE POST BEFORE FASTENING TOGETHER.
- Page 14 Step Four SIENNA PLACE THE TWO 106" TRUSS FRAMES (DEALER CODE 1323) IN THE TOP OF THE POSTS. DC-1041 0095_Sienna_9x9_Instructions_V1.3 EN TOLL FREE: 1-877-795-7423...
- Page 15 Step Five SIENNA MEASURE TRUSS FRAME FROM CORNER TO CORNER TO SQUARE THE FRAME BEFORE ATTACHING THE BRACKETS. MEASURE FROM POINT A TO POINT D AND THAT MEASUREMENT SHOULD EQUAL POINT B TO POINT C. ADJUST TRUSS FRAME UNTIL THEY DO.
- Page 16 Step Six SIENNA ONCE THE STRUCTURE IS SQUARED ATTACH THE CORNER BRACKETS (DEALER CODE ONCE THE CORNER BRACKETS ARE IN PLACE ATTACH THE 34" TRUSS FRAME 1075) INTO THE CORNERS OF THE OPEN SIDES. PLACE UP AGAINST THE POST AND SUPPORTS (DEALER CODE 1304) TO HOLD THE TRUSS FRAME ASSEMBLY SQUARE AS FLUSH UNDERNEATH THE TRUSS FRAME.
-
Page 17: Top View
Step Seven SIENNA DC-1170 DC-1824 X 8 DC-1170 DC-1824 DC-1824 DC-1170 SERIAL NUMBER FLUSH TOP VIEW ATTACH METAL BRACKET (DEALER CODE 1824) TO THE OCTAGON PEAK SUPPORT (DEALER CODE 1170) BY USING 2 1/2" SCREWS. SCREW THROUGH THE PRE-DRILLED HOLES IN THE BRACKET INTO THE OCTAGON PEAK SUPPORT. DO THIS TO ALL EIGHT SIDES. - Page 18 Step Eight SIENNA SERIAL NUMBER DC - 1674 DC - 1674 DC - 1674 DC - 1674 PLACE THE OCTAGON PEAK SUPPORT ASSEMBLY ON THE GROUND WITH THE SERIAL NUMBER TAG FACING UP. TOP PLAN VIEW ATTACH THE COMMON RAFTERS (DEALER CODE 1674) TO THE OCTAGON PEAK SUPPORT BY INSERTING THE RAFTER INSIDE THE METAL BRACKET AS SHOWN.
-
Page 19: Section View
Step Nine SIENNA FLIP THE RAFTER ASSEMBLY OVER AND PLACE ON TRUSS FRAME AS SHOWN IN SECTION DETAIL. CENTRE THE RAFTERS ON THE TRUSS FRAME. DO NOT SCREW RAFTERS TO THE TRUSS FRAME AT THIS TIME. SECTION VIEW TOP PLAN VIEW 0095_Sienna_9x9_Instructions_V1.3 EN... - Page 20 Step Ten SIENNA PLACE HIP RAFTERS (DEALER CODE 1673) IN PLACE AS SHOWN IN SECTION DETAIL AND TOP VIEW. PLACE RAFTER INSIDE METAL BRACKET AS SHOWN. ATTACH EACH HIP RAFTER WITH THREE 2 1/2" PAN HEAD SCREWS THROUGH THE PRE-DRILLED HOLES ON THE BRACKET INTO THE HIP RAFTER AS SHOWN.
- Page 21 Step Eleven SIENNA PLACE A LEFT AND RIGHT PANEL SUPPORT (DEALER CODE 1321 & 1322) ON TOP OF THE TRUSS FRAME AS SHOWN. PLACE THE PANEL SUPPORT SO THE ANGLE AT THE FRONT IS LINED UP FLUSH WITH THE TOP OF ALL THE RAFTERS.
- Page 22 Step Twelve SIENNA PLACE THE ROOF STRAPPING ON TOP OF THE ROOF RAFTERS AS SHOWN. DC-2028 PLACE THE 2x6 TOP STRAP ASSEMBLY PIECE (DC-2029) AT THE PEAK OF THE ROOF. PLACE THE PIECE SO THAT IT IS CENTRED ON THE RAFTERS.
- Page 23 Step Thirteen SIENNA SECURE THE COMMON RAFTERS ON EACH SIDE WITH TWO 3" HEX HEAD SCREWS AS SHOWN IN DETAIL 1 BELOW. SECURE THE RAFTERS IN PLACE WITH SCREWS THROUGH THE OUTSIDE OF THE TRUSS FRAMES ON ALL FOUR SIDES.
- Page 24 Step Fourteen SIENNA ATTACH THE ROOF GUIDE FLASHING USING ONE 1 1/2" SCREW THROUGH THE PRE-DRILLED HOLE AS SHOWN IN DETAIL 1. PLACE THE METAL ROOF GUIDE FLASHING PIECES (DEALER CODE 1825) IN THE CENTRE OF THE RAFTER ON TOP OF THE STRAPPING AS SHOWN IN DETAIL 1.
- Page 25 Step Fifteen SIENNA PLACE FOUR ROOFING SHEETS ON THE ROOF STRAPS AS SHOWN. LAY THE PIECES OUT EVENLY. PLACE THE SHEETS SO THAT THEY EVENLY OVERHANG THE BOTTOM OF THE ROOF AND LEAVE ROUGHLY 1/2" REVEAL ON THE TOP STRAP AS SHOWN IN DETAIL 1 MAKE SURE YOU HAVE ALL FOUR PIECES IN PLACE WITH AND EQUAL OVERHANG OVER THE THE WHOLE EDGE OF THE EAVE.
-
Page 26: Sealing Tape
Step Sixteen SIENNA CAREFULLY PEEL THE BACKER AND PLACE THE SEALING TAPE (DC-2033) ON TOP OF THE ROOFING SHEET AS SHOWN IN DETAIL 1 DETAIL 1 SEALING TAPE DC - 2033 TOLL FREE: 1-877-795-7423 0095_Sienna_9x9_Instructions_V1.3... - Page 27 Step Seventeen SIENNA CAREFULLY PEEL BACKER AND PLACE THE SEALING TAPE (DC - 2033) OVER TOP OF THE JOINT BETWEEN THE ROOFING SHEETS. APPLY PRESSURE TO ADHERE THE TAPE TO THE CONTOUR OF THE ROOFING SHEETS ONCE ADHERED FULLY, TRIM AT EDGE OF THE ROOFING...
- Page 28 Step Eighteen SIENNA PLACE THE METAL HIP CAPS (DEALER CODE 1413) ON EACH CORNER OF THE ROOF AS SHOWN. PLACE EACH CAP ON TOP OF THE HIP OF THE ROOF. MAKE SURE THAT THE CAP IS SITTING CENTRED ON THE HIP, THEN ATTACH IT TO THE ROOF WITH ONE 1 1/2"...
- Page 29 Step Nineteen SIENNA PLACE THE PEAK CAP (DEALER CODE 1459) AT THE VERY TOP OF THE ROOF OVER TOP OF THE ENDS OF THE HIP FLASHING. AS SHOWN. SECURE THE PEAK CAP WITH TWO SCREWS ON EACH SIDE THROUGH THE CAP AND INTO THE ROOFING.
- Page 30 Step Twenty SIENNA ASSEMBLY OF THE BAR BEGINS BY PLACING THE 36" LEFT AND RIGHT BAR BRACES (DEALER CODE 1095, 1096) AGAINST THE INSIDE OF THE CORNER POST AS SHOWN. ATTACH THEM TIGHT TO THE INSIDE OF THE POST WITH THREE 2 1/2" SCREWS THROUGH THE BRACE PIECES AND INTO THE THE POSTS AS SHOWN.
- Page 31 Step Twenty One SIENNA PLACE THE BAR TOP (DEALER CODE 1097) ON THE BAR LEGS AS SHOWN. ATTACH THE BAR TO THE LEGS WITH SIX 2 1/2" SCREWS AS SHOWN. PLACE THE CENTER BAR LEG (DEALER CODE 1077) UNDER THE MIDDLE OF THE BAR AS SHOWN.
- Page 32 28" Stools SIENNA Step 1 DC: 1992 DC: 1993 Step 2 DC: 1991 DC: 1991 DC: 1993 DC: 1993 16 X 2 1/2" ROBERTSON SCREWS TOLL FREE: 1-877-795-7423 0095_Sienna_9x9_Instructions_V1.3...
- Page 33 28" Stools SIENNA Step 3 Step 4 DC: 1990 LIFT FABRIC SKIRT TO ACCESS SCREW LOCATIONS DC: 1990 DC: 1990 4 X 2 1/2" ROBERTSON SCREWS TOLL FREE: 1-877-795-7423 0095_Sienna_9x9_Instructions_V1.3...
