VISSCHER TUSCANY 0096 Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
TUSCANY
INSTRUCTIONS
CODE: 0096
11'-6
7
" [353 cm]
8
10'-11
1
" [333 cm]
4

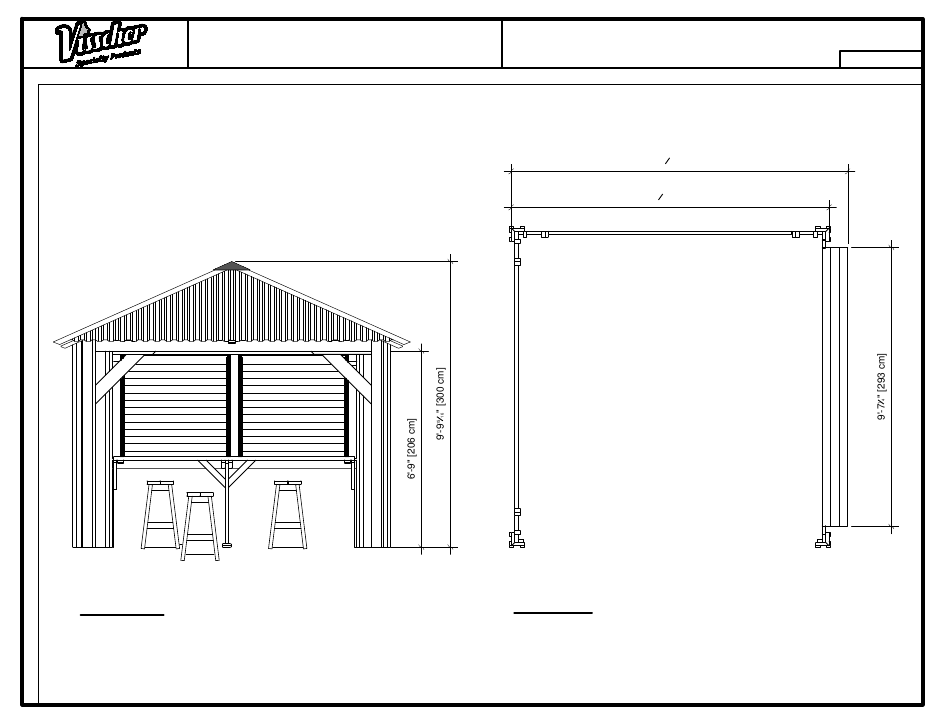

Footprint Plan
Front Elevation
TOLL FREE/SANS FRAIS: 1-877-795-7423
0096_Tuscany_11x11_Instructions_V1.2
EN

Advertisement

loading
Need help?

Need help?

Do you have a question about the TUSCANY 0096 and is the answer not in the manual?

Questions and answers

Related Manuals for VISSCHER TUSCANY 0096

Summary of Contents for VISSCHER TUSCANY 0096

  • Page 1 TUSCANY INSTRUCTIONS CODE: 0096 11'-6 " [353 cm] 10'-11 " [333 cm] Footprint Plan Front Elevation TOLL FREE/SANS FRAIS: 1-877-795-7423 0096_Tuscany_11x11_Instructions_V1.2...
  • Page 3 PROTECT THE PRODUCT FROM DAMAGE AS SOME PIECES MAY BE FRAGILE. ESTIMATED ASSEMBLY TIME: 4 HOURS IF YOU REQUIRE ASSISTANCE, OR NEED TO ORDER REPLACEMENT PARTS, CONTACT YOUR VISSCHER DEALER. LADDER (8ft / 2.5m) FOR ADDITIONAL INFORMATION PLEASE CALL THE NUMBER BELOW.
  • Page 5 PAGE TUSCANY CODE: 0095 TRUSS FRAME / FERME DE TOIT 8'-5" 1170 7'-10" 1244 3'-9" 1754 1037 5'-2" 1324 5'-2" 1325 7'-2" 7'-11" 1041 1465 1'-4" 1459 1056 6'-2" 2'-6" 1677 8'-4" 1070 1678 1824 2'-10" 1304 1825 10'-7" 1305 6'-11"...
  • Page 7 PAGE TUSCANY CODE: 0095 STOOLS / TABOURETS 1077 1990 1061 1993 1095 1992 1096 1991 10'-0" 1097 0096_Tuscany_11x11_Instructions_V1.2 TOLL FREE: 1-877-795-7423...
  • Page 9 TUSCANY HARDWARE - QUINCAILLERIE CODE: 0096 ROBERTSON BIT/ EMBOUT ROBERTSON 1 1/2" #8 FLAT HEAD (#2 ROBERTSON) 1 1/2 PO TETE PLATE NO 8 (no 2 ROBERTSON) 315X 1/4" HEX HEAD BIT/ EMBOUT A TETE 2 1/2" #8 FLAT HEAD (#2 ROBERTSON) HEXAGONALE DE 1/4 PO 1 1/4"...
  • Page 11 Step One TUSCANY BEGIN ASSEMBLY BY SCREWING THE FOUR TRUSS FRAME (DEALER CODE 1305) PIECES TOGETHER AS SHOWN. ATTACH THE PIECES USING THREE 2 1/2" ROBERTSON SCREWS AS EACH JOINT AS SHOWN. NOTE: IT IS VERY IMPORTANT TO CHASE/FOLLOW CORNERS AS SHOWN IN DIAGRAMS.
  • Page 12 Step Two TUSCANY MEASURE TRUSS FRAME FROM CORNER TO CORNER TO SQUARE THE FRAME ONCE YOU HAVE SQUARED THE TRUSS FRAME ATTACH THE 34" TRUSS FRAME BEFORE ATTACHING THE SUPPORTS. MEASURE FROM POINT A TO POINT D THAT SUPPORTS (DEALER CODE 1304) TO HOLD THE TRUSS FRAME ASSEMBLY SQUARE AS MEASUREMENT SHOULD EQUAL POINT B TO POINT C.
  • Page 13 Step Three TUSCANY LIFT UP ONE SIDE OF THE TRUSS FRAME ASSEMBLY AS THE SECOND PERSON SLIDES A POST (DEALER CODE 1041) UNDER ONE CORNER OF THE OF TRUSS FRAME. SLIDE THE TRUSS FRAME INTO THE SADDLE OF THE POST AS SHOWN, REST THE POSTS ON THE GROUND WITH THE OTHER SIDE OF THE TRUSS FRAME ASSEMBLY ON THE GROUND.
  • Page 14 Step Four TUSCANY LIFT UP THE SECOND SIDE OF THE TRUSS FRAME ASSEMBLY AS THE SECOND PERSON ATTACHES THE TWO REMAINING POSTS TO THE CORNERS OF THE TRUSS FRAME. SLIDE THE TRUSS FRAME INTO THE SADDLE OF THE POSTS AS SHOWN, AND ATTACH TO THE TRUSS FRAME AS DESCRIBED IN THE CORNER DETAIL DRAWING.
  • Page 15 Step Five TUSCANY SCREW A 2*3 FILLER PIECE (DEALER CODE 1961) TO EACH SIDE OF THE LOUVER PANEL (DEALER CODE 1037) TOGETHER WITH 2 1/2" SCREWS. WHEN ATTACHING ATTACH THE 2*8 FILLER (DEALER CODE 1960) TO THE 2*3 FILLER (DEALER CODE 1961) ENSURE THAT THE 2*3 IS FLUSH WITH THE TOP OF THE 2*4 ON FLAT AND FLUSH WITH USING SEVEN 2 1/2"...
  • Page 16 Step Six TUSCANY ATTACH THE FILLER PIECE BUILT IN THE PREVIOUS STEP TO THE LOUVER PANEL ASSEMBLY USING SIX 2 1/2" SCREWS AS SHOWN BELOW. ENSURE THAT ALL EDGES ARE FLUSH WITH EACH OTHER. SCREW THROUGH THE FILLER PIECE INTO THE LOUVER PANEL ASSEMBLY AS SHOWN IN THE DETAIL.
  • Page 17 Step Seven TUSCANY TRUSS FRAME DC - 1037 DETAIL 1 PLACE THE LOUVER PANEL ASSEMBLIES INSIDE THE STUCTURE BETWEEN THE POSTS. PLACE THE PANELS SO THAT THEY ARE FLUSH AGAINST THE POST. ADJUST THE POSTS SO THAT THEY ARE PARALLEL WITH THE PANELS. ATTACH THE TOP OF THE PANELS TO THE TRUSS FRAME WITH EIGHT 2 1/2"...
  • Page 18 Step Eight TUSCANY PLACE THE TOP MENDING PLATE 1'-0" FROM THE UNDERSIDE OF THE TRUSS FRAME TO THE MIDDLE OF THE MENDING PLATE AS SHOWN IN DETAIL 1. ATTACH THE LOUVER PANELS TO THE POSTS USING THREE MENDING PLATES (DEALER CODE 1965) WITH SIX BLACK 3/4" SCREWS THROUGH THE LOUVER PANEL INTO THE POST.
  • Page 19 Step Nine TUSCANY ATTACH THE CORNER BRACKETS (DEALER CODE 1070) INTO THE CORNERS OF THE OPEN SIDES. PLACE UP AGAINST THE POST AND FLUSH UNDERNEATH THE TRUSS FRAME. ATTACH THE CORNER BRACKETS WITH FOUR 2 1/2" SCREWS EACH. 2 1/2" ROBERTSON SCREWS 16 req 0096_Tuscany_11x11_Instructions_V1.2 TOLL FREE: 1-877-795-7423...

  • Page 20: Top View

    Step Ten TUSCANY DC-1170 DC-1824 X 8 DC-1170 DC-1824 DC-1824 DC-1170 SERIAL NUMBER FLUSH ATTACH EIGHT METAL BRACKETS (DEALER CODE 1824) TO THE OCTAGON PEAK TOP VIEW SUPPORT (DEALER CODE 1170) USING 1 1/2" SCREWS. SCREW THROUGH THE PRE-DRILLED HOLES IN THE BRACKET INTO THE OCTAGON PEAK SUPPORT. 1 1/2"...
  • Page 21 Step Eleven TUSCANY SERIAL NUMBER DC - 1677 DC - 1677 DC - 1677 DC - 1677 PLACE THE OCTAGON PEAK SUPPORT ASSEMBLY ON THE GROUND WITH THE SERIAL NUMBER TAG FACING UP. ATTACH THE COMMON RAFTERS (DEALER CODE 1677) TO THE OCTAGON PEAK SUPPORT BY INSERTING THE RAFTER INSIDE THE METAL BRACKET AS SHOWN.

  • Page 22: Section View

    Step Twelve TUSCANY FLIP THE RAFTER ASSEMBLY OVER AND PLACE ON TRUSS FRAME AS SHOWN IN SECTION VIEW. CENTRE THE RAFTERS ON THE TRUSS FRAME. DO NOT SCREW RAFTERS TO THE TRUSS FRAME AT THIS TIME. SECTION VIEW TOP PLAN VIEW TOLL FREE: 1-877-795-7423 0096_Tuscany_11x11_Instructions_V1.2...
  • Page 23 Step Thirteen TUSCANY PLACE HIP RAFTERS (DEALER CODE 1678) IN PLACE AS SHOWN IN SECTION DETAIL AND TOP VIEW. PLACE RAFTER INSIDE METAL BRACKET AS SHOWN. ATTACH EACH HIP RAFTER WITH THREE 2 1/2" PAN HEAD SCREWS THROUGH THE PRE-DRILLED HOLES ON THE BRACKET INTO THE HIP RAFTER AS SHOWN.
  • Page 24 Step Fourteen TUSCANY PLACE A LEFT AND RIGHT PANEL SUPPORT (DEALER CODE 1324 & 1325) ON TOP OF THE TRUSS FRAME AS SHOWN. PLACE THE PANEL SUPPORT SO THE ANGLE AT THE FRONT IS LINED UP FLUSH WITH (DC-1325) (DC-1324) THE TOP OF ALL THE RAFTERS.
  • Page 25 Step Fifteen TUSCANY PLACE THE ROOF STRAPPING ON TOP OF THE ROOF RAFTERS AS SHOWN. PLACE THE 2x6 TOP STRAP ASSEMBLY PIECE (DC-2029) AT THE PEAK OF THE ROOF. PLACE THE PIECE SO THAT IT IS CENTRED ON THE RAFTERS. PLACE THE 2X3 TOP STRAP ASSEMBLY PIECE (DC-2028) ABOVE AND TIGHT AGAINST THE 2X6 STRAP ASSEMBLY (DC-2029).
  • Page 26 Step Sixteen TUSCANY SECURE THE COMMON RAFTERS ON EACH SIDE WITH TWO 3" HEX HEAD SCREWS AS SHOWN IN DETAIL 1 BELOW. SECURE THE RAFTERS IN PLACE WITH SCREWS THROUGH THE OUTSIDE OF THE TRUSS FRAMES ON ALL FOUR SIDES. DETAIL - 1 USE 3"...
  • Page 27 Step Seventeen TUSCANY ATTACH THE ROOF GUIDE FLASHING USING ONE 1 1/2" SCREW THROUGH THE PRE-DRILLED HOLE AS SHOWN IN DETAIL 1. PLACE THE METAL ROOF GUIDE FLASHING PIECES (DEALER CODE 1825) IN THE CENTRE OF THE RAFTER ON TOP OF THE STRAPPING AS SHOWN IN DETAIL 1.
  • Page 28 Step Eighteen TUSCANY PLACE FOUR ROOFING SHEETS ON THE ROOF STRAPS AS SHOWN. LAY THE PIECES OUT EVENLY. PLACE THE SHEETS SO THAT THEY EVENLY OVERHANG THE BOTTOM OF THE ROOF AND LEAVE ROUGHLY 1/2" REVEAL ON THE TOP STRAP AS SHOWN IN DETAIL 1 MAKE SURE YOU HAVE ALL FOUR PIECES IN PLACE WITH AND EQUAL OVERHANG OVER THE THE WHOLE EDGE OF THE EAVE.

  • Page 29: Sealing Tape

    Step Nineteen TUSCANY CAREFULLY PEEL THE BACKER AND PLACE THE SEALING TAPE (DC-2033) ON TOP OF THE ROOFING SHEET AS SHOWN IN DETAIL 1 DETAIL 1 SEALING TAPE DC - 2033 0096_Tuscany_11x11_Instructions_V1.2 TOLL FREE: 1-877-795-7423...
  • Page 30 Step Nineteen TUSCANY CAREFULLY PEEL BACKER AND PLACE THE SEALING TAPE (DC - 2033) OVER TOP OF THE JOINT BETWEEN THE ROOFING SHEETS. APPLY PRESSURE TO ADHERE THE TAPE TO THE CONTOUR OF THE ROOFING SHEETS ONCE ADHERED FULLY, TRIM AT EDGE OF THE ROOFING SHEET AS SHOWN IN DETAIL 1 REPEAT THIS ON ALL FOUR SIDES CENTRED ON JOINT.
  • Page 31 Step Nineteen TUSCANY PLACE THE METAL HIP CAPS (DEALER CODE 1465) ON EACH CORNER OF THE ROOF AS SHOWN. PLACE EACH CAP ON TOP OF THE HIP OF THE ROOF. MAKE SURE THAT THE CAP IS SITTING CENTRED ON THE HIP, THEN ATTACH IT TO THE ROOF WITH ONE 1 1/2" (3cm) ROOF SCREW ON EACH SIDE THROUGH THE CAP INTO THE RIB OF THE METAL ROOFING AS SHOWN.
  • Page 32 Step Twenty TUSCANY PLACE THE PEAK CAP AT THE VERY TOP OF THE ROOF OVER TOP OF THE ENDS OF THE HIP FLASHING. AS SHOWN. SECURE THE HIP CAP WITH TWO SCREWS ON EACH SIDE THROUGH THE CAP AND INTO THE ROOFING. MAKE SURE THE CAP IS PRESSED DOWN TIGHT AND FLAT TO THE ROOFING.
  • Page 33 Step Twenty One TUSCANY ASSEMBLY OF THE BAR BEGINS BY PLACING THE 36" LEFT AND RIGHT BAR BRACES (DEALER CODE 1095 & DEALER CODE 1096) AGAINST THE INSIDE OF THE CORNER POST AS SHOWN. ATTACH THEM TIGHT TO THE INSIDE OF THE POST WITH THREE 2 1/2"...
  • Page 34 Step Twenty Two TUSCANY PLACE THE BAR TOP (DEALER CODE 1097) ON THE BAR BRACES AS SHOWN. ATTACH THE BAR TO THE BRACES WITH SIX 2 1/2" SCREWS AS SHOWN. PLACE THE CENTER BAR LEG (DEALER CODE 1077) UNDER THE MIDDLE OF THE BAR AS SHOWN.
  • Page 35 28" Stools TUSCANY Vista Leisure Louvered 10' x 10' Step 1 DC: 1992 DC: 1993 Step 2 DC: 1991 DC: 1991 DC: 1993 DC: 1993 2 1/2" ROBERTSON SCREWS 16 req 0096_Tuscany_11x11_Instructions_V1.2 TOLL FREE: 1-877-795-7423...
  • Page 36 28" Stools TUSCANY Vista Leisure Louvered 10' x 10' Step 3 Step 4 DC: 1990 LIFT FABRIC SKIRT TO ACCESS SCREW LOCATIONS DC: 1990 DC: 1990 2 1/2" ROBERTSON SCREWS 4 req 0096_Tuscany_11x11_Instructions_V1.2 TOLL FREE: 1-877-795-7423...
