STEP 5
: Test the TROY Font Support for Microsoft
To verify that the TROY Windows font support files were properly installed on your system, demonstration
documents are provided through the TROY Printer Utility in Windows that can be printed out to visually
identify all security and/or barcode fonts downloaded to the TROY printer. Make sure your TROY printer is
properly setup, powered ON, and is online before printing the Windows Security Font and/or Windows Barcode
Font Demonstration page(s).
T TROY
O PRINT THE SECURITY FONT
NOTE: TROY Secure EX series printers must have the printer keylock switch
set to "Print MICR" to enable printing of the Windows Security Font
Demonstration page.

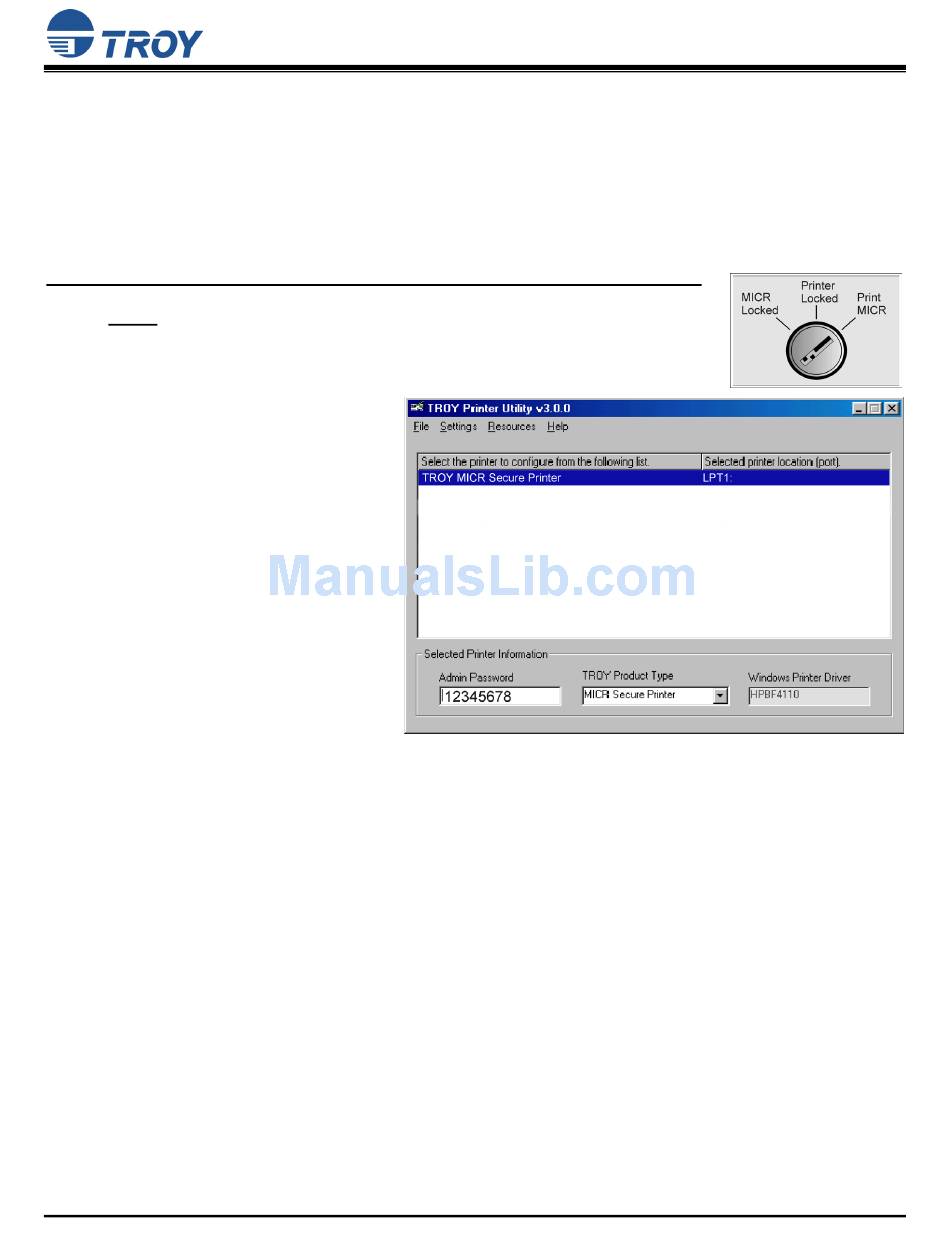

1. From the TROY Printer Utility
Main Window, click on the printer
you wish to manage.
2. If you have
administrator password, type the
password into the password box at
the bottom of the Main Window. If
a password is not set, then leave the
password box blank.
3. From the Main Window, click on
File, Print, and then click on
Windows Security
Demo. The
automatically print the Windows
Security Font Demonstration page.
4. Compare the actual TROY security fonts (the actual fonts generated by your printing system) shown in
the right-hand column with the facsimile image of these fonts printed in the center column (a digitized
image designed to look exactly like the actual fonts correctly generated by your system – refer to the
example shown on the next page).
If the support files were properly installed, the actual TROY security and/or barcode fonts displayed in
the right-hand column should appear identical to the facsimile fonts displayed in the center column. If
the actual fonts do not match the facsimile fonts printed on the demonstration document (fonts not
printed correctly or fonts missing on the printout), review the installation steps in this document. If
further assistance is required, contact TROY Technical Support.
Accessing TROY Fonts Using Non-Windows Applications
If you are using a non-Windows application to print MICR documents, the escape sequence for each font must
be programmed into the application in order to "call" each of the selected fonts. The <Esc> character is ASCII
character number 27 (hexadecimal number 1B). Refer to the TROY Security Printing Solutions User's Guide
for the specific escape sequence (displayed above each character map) used to call each of the TROY fonts.
