Scosche TA1467 Quick Start Manual

DOUBLE DIN INSTALLATION
MOUNTING THE RADIO:
1. Mount the aftermarket radios to the factory metal mounting
brackets using the factory hardware (see Illustration).
2. Secure the radio mounting assembly to the dash using
screws used to secure the factory radio.

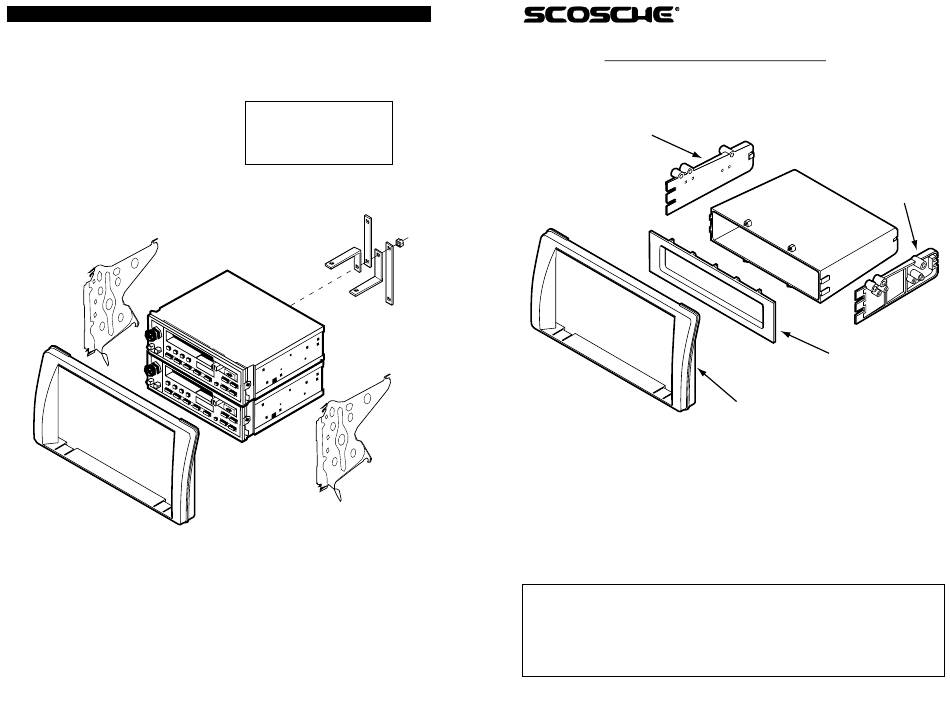

FACTORY
METAL
MOUNTING
BRACKET
TA1467 TRIM
RADIO REMOVAL:
1. Carefully pry out climate controls using panel removal tool. Disconnect and remove.
2. Carefully pull radio bezel.
3. Extract (4) 10mm bolts securing radio bracket, disconnect and remove radio..
CAUTION:
REAR SUPPORT AVAILABLE
SEPARATELY. REAR SUPPORTING
THE RADIO ADDS TO THE
INSTALLATIONS STRUCTURAL
INTEGRITY.
REAR
SUPPORT
DOUBLE DIN RADIO
FACTORY
METAL
MOUNTING
BRACKET
4
IN-DASH INSTALLATION KIT FOR
2002-UP TOYOTA CAMRY VEHICLES
LEFT TOYOTA
BRACKET #2442L
LIABILITY DISCLAIMER
This instruction booklet is based on carefully documented data and research of automobile dash
disassembly, wire harness/codes and information pertaining to installation of this kit (TA1467) in
2002-UP Toyota Camry Vehicles. Scosche Industries, Inc. can not be held responsible for
discrepancies/inconsistencies that may occur due to the automobile manufacturing changes or
options, or damage that may occur in the automobile during the installation of components while
using this booklet.

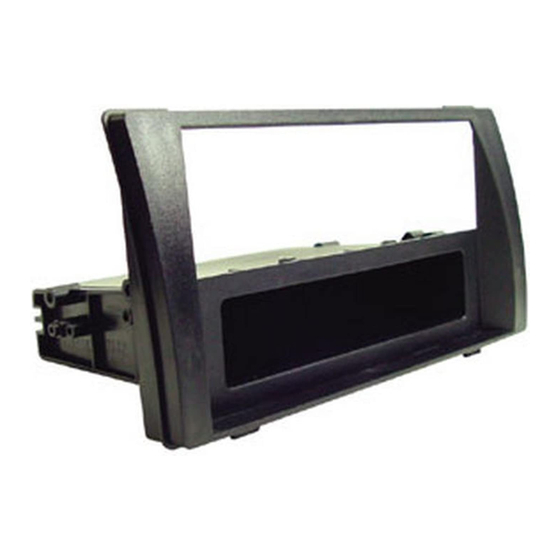

TA1467
RIGHT TOYOTA
BRACKET #2442R
TN2150 SERIES POCKET
TOYOTA TRIM #2699
TA1467 MOUNTING TRIM
