Shenzhen GETECH CO.,LTD
GEEETECH

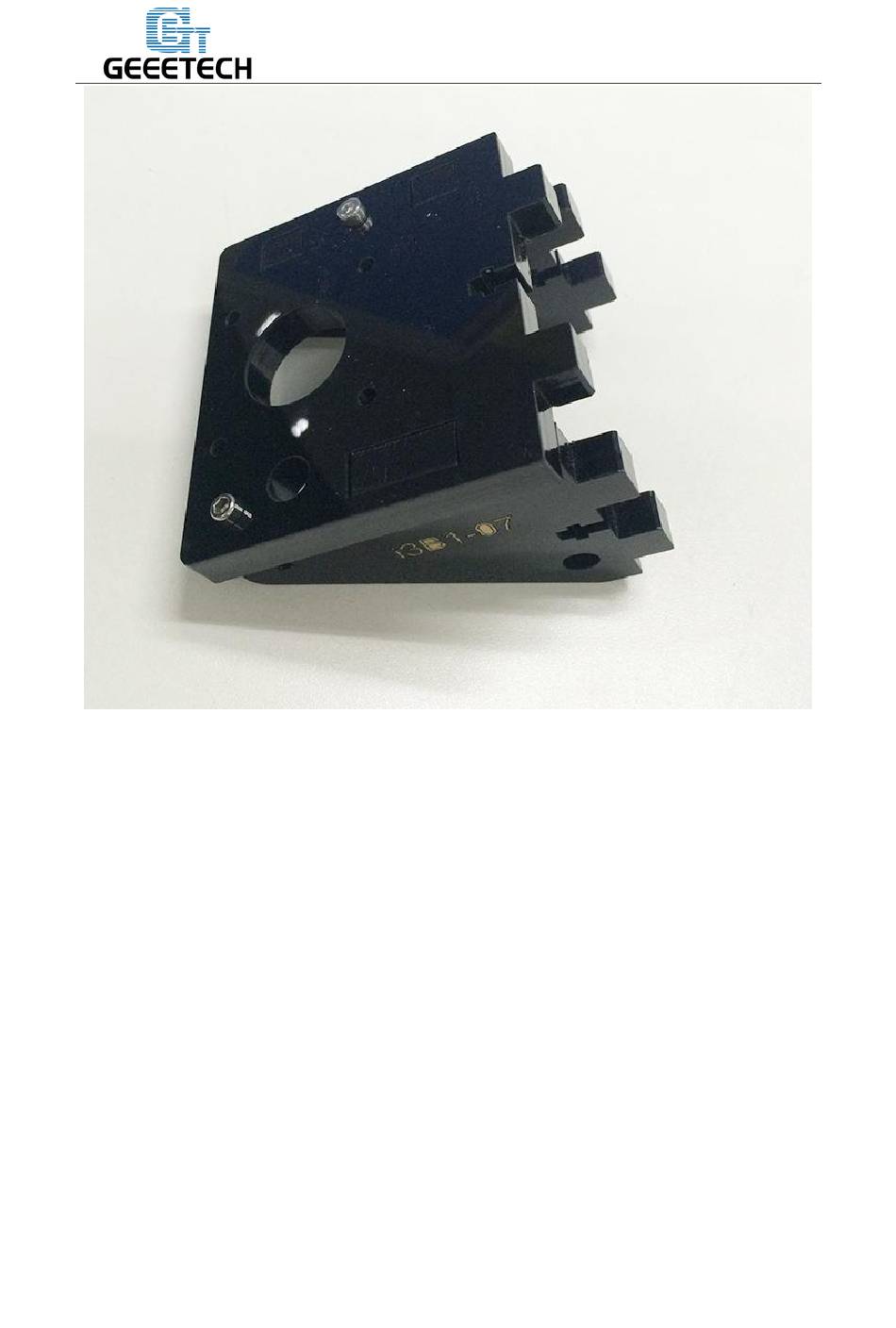

Step4. Insert the assembled left motor mount to the left-bottom of A1.
Mount the to assembled Z motor mount to A1 with M3 x 16mm screw and M3 Square
nut.
*Be very careful here, if you can not insert it into the hole, you can loose the screw on
the motor mount and try again.
26
