Summary of Contents for Cramer 2500386

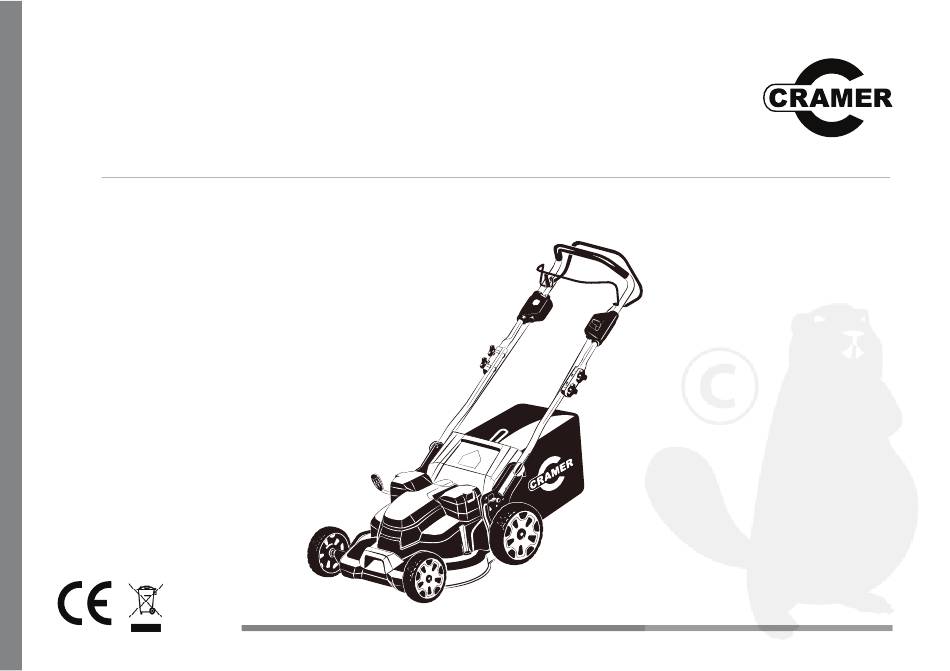

- Page 1 2500386 (82LM61S) EN | DE | ES | IT | FR | PT | NL | RU| FI | SV | NO| DA| PL | CS | SK | SL| HR| EL | AR| TR | LT | LV | ET |...
- Page 2 2500386 82LM61S Fig.3 Fig.1 Fig.2 Fig.4 Fig.5 Fig.6...
- Page 3 2500386 82LM61S Fig.7 Fig.8 Fig.9 Fig.10 Fig.11 Fig.12...
-
Page 4: Product Overview
Handle knob Range Knob Bolt Grassbox handle Rear door Rear discharge opening Slots Hooks Blade Blade bolt Battery release button Mulching plug Block of wood (not included) Wrench (not included) Safety key Storage switch Self propel lever Self-Propel speed controls cramer.eu... -
Page 5: Safety Precautions
Replace worn or damaged machine. Local regulations can restrict components in sets to preserve balance. the age of the operator. Replace damaged or unreadable labels. Never operate the machine while people, especially children, or pets are cramer.eu... - Page 6 Make sure from the area to be used. that all moving parts have come to a Never operate the machine with complete stop defective guards or shields, or without whenever you leave the machine, cramer.eu...
- Page 7 UNIT. IF YOU LOAN SOMEONE THIS UNIT, LOAN THEM THESE INSTRUCTIONS ALSO. Check the grass collector frequently for wear or deterioration On machines with multi blade, take care as rotating one blade can cause other blades to rotate. cramer.eu...
- Page 8 Beware of electric shock is hazardous to you and the hazard. environment. It must be removed Wait for all components of and disposed of separately at a machine to have completely facility that accepts lithium-ion stopped before touching them. batteries. cramer.eu...
-
Page 9: Before Operation
Your mower is equipped with a mulching plug that covers the rear discharge WARNING! opening, which allows the mower blade to cut and recut for finer clippings. To prevent accidental starting that could cause serious personal injury, always remove the battery pack and safety key from the product when assembling parts. cramer.eu... -
Page 10: Operation
Always wear eye protection. Failure to do so could result in Release the rear discharge door. When installed correctly, the hooks on the objects being thrown into your eyes resulting in possible serious grass catcher will extend through the openings on the rear discharge door. injury. cramer.eu... - Page 11 Pull the self propel lever upward to meet the handle. key. To disengage the self-propelled feature: Close the door. Release the self propel lever. To adjust the speed of self-propelled feature: Pull the variable speed control lever towards the Rabbit Symbol to increase cramer.eu...
-
Page 12: Maintenance
WARNING! children. Please keep self-propelled at low speed when mowing up to a slope. cramer.eu... - Page 13 Tighten securely all fasteners and caps and do not operate this product until all Therefore, no further bearing lubrication is required. missing or damaged parts are replaced. Please call Cramer customer service for assistance. Avoid using solvents when cleaning plastic parts. Most plastics are...
- Page 14 Remove the battery from the mower. Remove the grass catcher bag. Rotate the handle knobs to the unlocked position. Lower the handle assembly and rotate the handle knobs to the locked position. Lift the mower by the front end to the vertical position. cramer.eu...
-
Page 15: Troubleshooting
Mower is blade are dragging Raise the cutting height. hard to push. in heavy grass, or cutting height too low. * If the fault is not solved, you must go to your distributor and/or nearest Authorized Technical Service. cramer.eu... -
Page 16: Technical Data
Self propelled speed 0.5-1.5 m/s Original Instruction Grassbox capacity 70 L Type Cordless mower Weight (Without Battery) 32.5 kg Brand Cramer Battery Pack 82V220G/82V430G/82V220/82V430 Model 82LM61S Charger 82C1G/82C2/82C6 Serial No See product rating label Sound pressure level 71.48 dB(A), K : 1.70 dB(A) - Page 17 Machine Directive 2006/42/CE EMC Directive 2014/30/EU Noise Emission Directive 2000/14/EC amended by 2005/88/ Ted Qu Haichao Quality Director Changzhou, 22/07/2017 cramer.eu...
