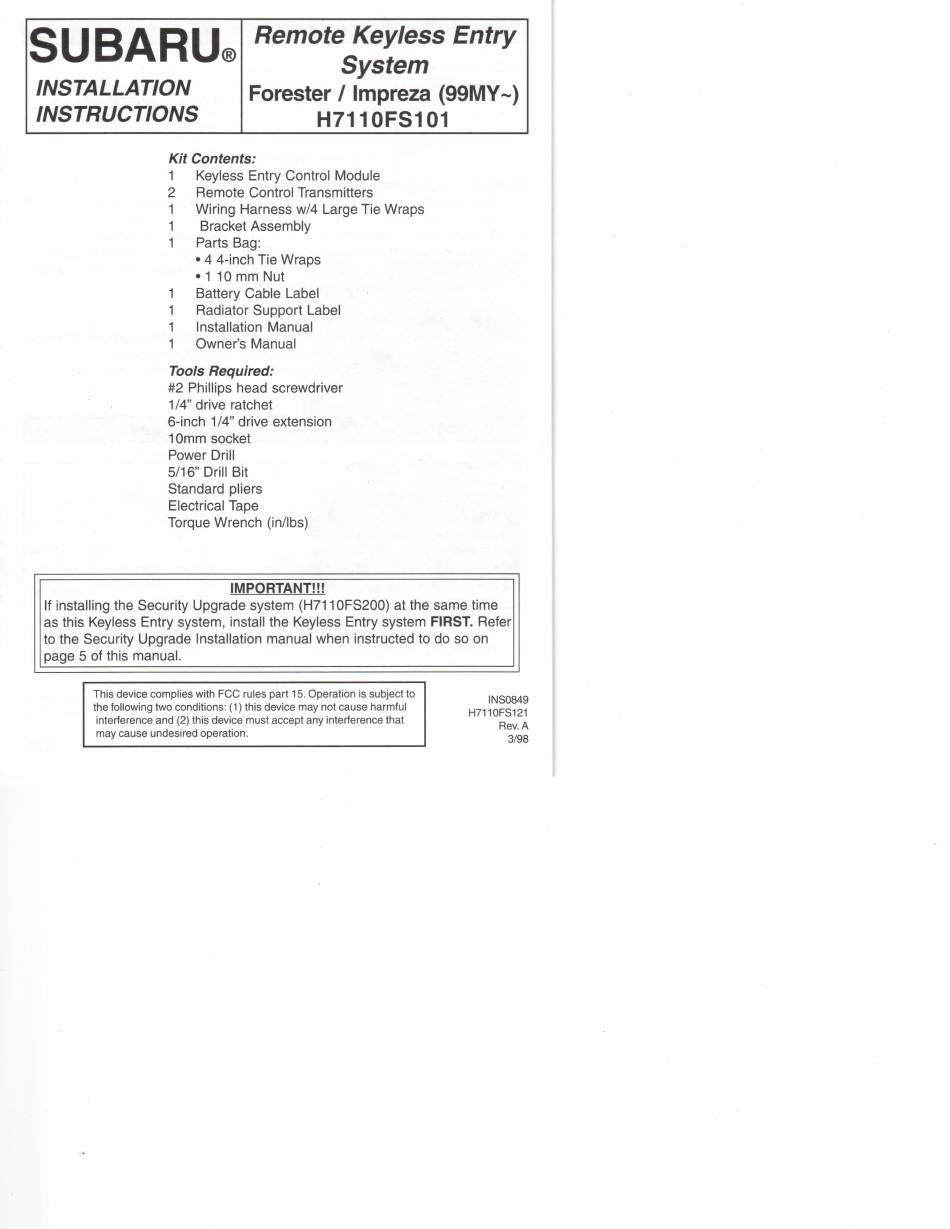

SUBARU
INSTALLATION
INSTRUCTIONS
Remote Keyless Entry
System
Forester / Impreza (99MY-)
H7110FS101
Kit Contents:
1 Keyless Entry Control Module
2 Remote Control Transmitters
1 Wiring Harness w/4 Large Tie Wraps
1 Bracket Assembly
1 Parts Bag:
• 4 4-inch Tie Wraps
• 1 10 mm Nut
1 Battery Cable Label
1 Radiator Support Label
1 Installation Manual
1 Owner's Manual
Tools Required:
#2 Phillips head screwdriver
1/4" drive ratchet
6-inch 1/4" drive extension
10mm socket
Power Drill
5/16" Drill Bit
Standard pliers
Electrical Tape
Torque Wrench (in/lbs)
IMPORTANT!!!
If installing the Security Upgrade system (H7110FS200) at the same time
as this Keyless Entry system, install the Keyless Entry system FIRST. Refer
to the Security Upgrade Installation manual when instructed to do so on
page 5 of this manual.
This device complies with FCC rules part 15. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference and (2) this device must accept any interference that
may cause undesired operation.
INS0849
H7110FS121
Rev.
A
3/98
