Subaru H011SAJ400 Installation Instructions Manual

INSTALLATION
INSTRUCTIONS

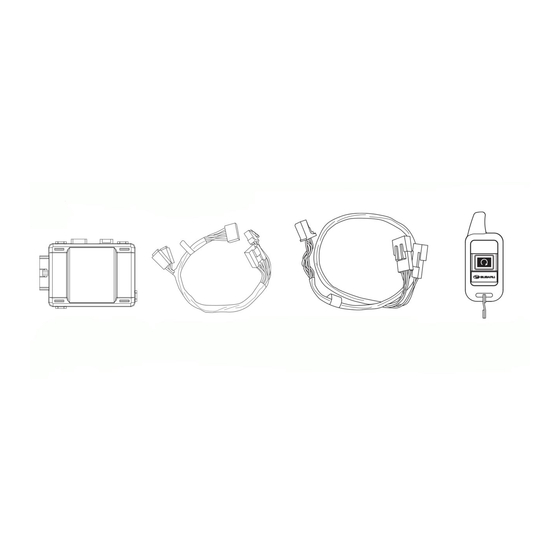

KIT CONTENTS

1
Remote Start Remote Start Ignition
Control Module Wiring Harness
Quantity= 1
WARNING: / AVERTISSEMENT
This vehicle is equipped with a remote controlled engine starter.
To reduce the risk of serious Injury or death, switch engine starter
system into service mode and disconnect the vehicle battery
before performing any service on the vehicle.
Ce vé h icule est doté d'un dé m arreur à distance. Pour ré d uire les
risques de blessures graves ou mortelles, mettre le dé m arreur à
distance en mode service et dé b rancher la batterie du vé h icule
avant d'effectuer des travaux d'entretien sur celui-ci.
Underhood
Warning Label
Quantity=1

TOOLS REQUIRED

2
Phillips Screwdriver
Short and Standard

MEANING OF CHARACTERS

3
CAUTION: DO NOT SECURE ANY REMOTE START HARNESSES / MODULES TO ANY YELLOW HARNESSES / CON-
NECTORS (AIRBAG SYSTEM) IN THE VEHICLE.
PART NUMBER ISSUE
H011SAJ400
Pre-Arranged
Jumper Wiring Harness
Quantity= 1
Quantity= 1
REMOTE START QUICK REFERENCE
Press Press For 2 Seconds
2 Times
Remote Start
Remote Start
Activation Shutdown
Starting Your Vehicle
The remote control start function is activated by pressing
the START (key icon) button twice within 3 seconds on
your remote control transmitter. The system will check
certain pre-conditions before starting, and if all safety
parameters are correct, the engine will start within 5
seconds. If the vehicle s starter cranks but does not start
or starts and stalls, the remote engine start system will
power off then attempt to start the vehicle an additional
four times.
WARNING: TO AVOID DANGER OF CARBON MONOXIDE,
NEVER REMOTE START A VEHICLE IN A CLOSED SPACE
SUCH AS A CLOSED GARAGE.
Turning Your Vehicle Off
Press and hold the START (key icon) button again to turn
the vehicle off. If the vehicle is left running the remote start
system will allow the vehicle to run for a total of 15 minutes
and then automatically turn off.
Entering the Vehicle While it is Running via Remote Start
1. Unlock the vehicle doors using the factory keyless
remote. If the vehicle s doors are unlocked manually
using the key, the vehicle s security system will trigger
and the remote start system will turn off. Inserting
the ignition key into the ignition cylinder and
turning it to the ON or RUN position will disarm the
security system.
2. Enter the vehicle. Do not press the brake pedal.
3. Insert the key into the ignition and turn to the ON positi-
ion. If the ignition key is accidently turned to the start
position, the system s starter anti-grind feature will
prevent the starter from re-cranking.
4. Press the brake pedal. The remote starter disenga-
ges, the vehicle s power window features are re-ena-
bled and the vehicle will operate normally.
Quick
Reference Card
Quantity=1
Ratchet and
Wire Cutters
10mm Socket
: Remove
: Install
: Disconnect
: Connect
: Location of Clip or Screw
DATE
00
21 Apr 2013
PART NUMBER:
DESCRIPTION:
Remote Start
Transmitters Switch and Mounting Bracket
Quantity=2
Tie Wraps
8" Quantity= 8
21" Quantity= 1
Panel Removal
Tool
SUBARU OF AMERICA
H011SAJ400
REMOTE ENGINE START SYSTEM
Remote StartHood Safety
Quantity=1
A-Pillar Trim Clip
Foam Tape
Quantity= 5
Alcohol and Towel
Diagnostic Interface
T
: Tighten Torque
: Loosen
: Discard
: Re-use
Remote Start
Antenna and Harness
Quantity=1
Quantity= 1
SSM III
1 OF 11
