- Page 1 Installation manual D C I n v e r t e r ECA644 - ECA647 - EWF644 - EWF647 - ESE645 - ESE648 EDA649 - EDB649 - EWG649 - EWW649 E4T643 - E2T543 - B3V137 B4V642 - B3V151- B3V152 - B10642...
- Page 2 By following the suggestions contained in this manual, the product you have purchased will operate without problems, giving you optimum room temperatures with minimum energy costs. Innova S.r.l Symbols The pictograms in the next chapter provide the necessary unmistakable way.
-
Page 3: Table Of Contents
General table of contents GENERAL General warnings ................5 ECA644 - ECA647 - ESE645 - ESE648 Assembly, set-up and connection of on-board control panels ECA644, ESE645, ECA647, ESE648 . - Page 4 B4V642 + B3V151 10.1 B4V642 + B3V151 Connection Diagrams ............29 10.2 B4V642 + B3V151 Connection Diagrams with seasonal switching .
-
Page 5: General
GENERAL General warnings This instruction is an integral part of the booklet of It is forbidden to modify the safety or adjustment the appliance on which the kit is installed. Please consult devices without authorisation from and indications of the this booklet for general warnings and fundamental safety manufacturer. -
Page 6: Assembly, Set-Up And Connection Of On-Board Control Panels Eca644, Ese645, Eca647, Ese648

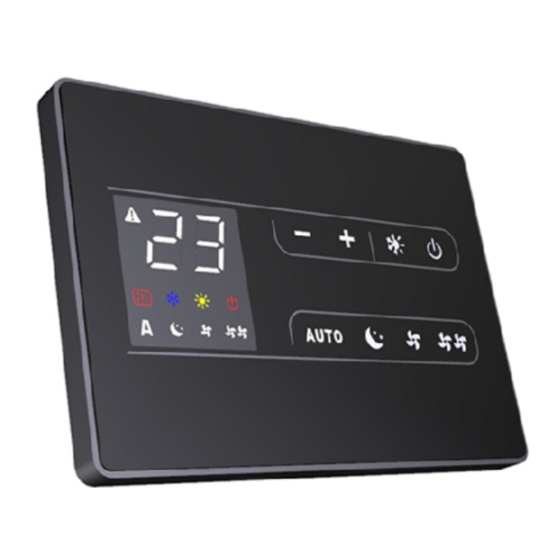

ECA644 - ECA647 -EWF644 - EWF647 - ESE645 - ESE648 Assembly, set-up and connection of on-board control panels ECA644, ESE645, ECA647, ESE648 The controllers have two independent clean contacts compartment on the battery regulations the minimum level for controlling a refrigerator unit, a boiler and a presence when heating (30°C) and the maximum level when cooling input. -
Page 7: Set-Up Of Auxiliary Dip-Switch Functions B And C
Set-up of auxiliary dip-switch functions B and C There are two dip switches on the controller circuit board reached the set point, to allow for more uniform for configuring unit operation as per requirements. operation of the temperature probe and to avoid The night-time heating operation logic is modified by layering in the air. -
Page 8: Air Temperature Probe Assembly (Only For Models Eca644, Eca647)
Air temperature probe assembly (only for models ECA644, ECA647) To position the temperature probe (ref. A): insert the probe into the lower hole (ref. C) pass the probe through the hole on the shoulder (ref. B) fix the probe on the relevant hook (ref. D) Cooling/Heating automatic settings (only for 4-tube units) By regulating these settings, the system can select either when set point is higher than ambient temperature, both... -
Page 9: Eca644 And Eca647 Connections
ECA644 and ECA647 connections water temperature probe (10 kΩ) boiler consent output (free contact max 1A) water temperature probe 4 pipes (10 kΩ) (only chiller consent output (free contact max 1A) for ECA 647) air temperature probe (10 kΩ) presence input sensor (if closed, the fan coil unit DC inverter fan motor is placed in standby). -
Page 10: Ese645 And Ese648 Connections
ESE645 and ESE648 connections serial connection for wall-mounted remote chiller consent output (free contact max 1A) +AB- control EDA/EDB649 - EWG/EWW649 (respect AB polarity) RS water probe (10 kΩ) (ESE645 only) H2** hot water temperature probe (10 kΩ) Air probe optional (*) H4** cold water temperature probe (10 kΩ) (648 only) RS version cabling (ESE645 only) -
Page 11: Continuous Modulation Circuit Board For Connecting Remote Thermostat (Only For Models Ese645 - Ese648)
Continuous modulation circuit board for connecting remote thermostat (only for models ESE645 - ESE648) The circuit board for remote control is for all functions of room temperature are transmitted from the wall-mounted the fan coil system from the wall-mounted remote control remote control EDA/EDB649 - EWG/EWW649 to all EDA/EDB649 - EWG/EWW649. -
Page 12: Eda649 - Edb649
EDA649 - EDB649 Wall-mounted remote control panel assembly EDA649 - EDB649 The wall-mounted remote control EDA/EDB649 is an protruding teeth on the rear (A). electronic thermostat (fitted with an optional temperature Use the base of the controller (ref. B in diagram) to trace probe which can be remotely installed in one of the fan the fixing points on to the wall (use two opposing holes). -
Page 13: Cp Occupancy Contact Input Connection
CP occupancy contact input connection On closing the contact connected to the CP input (ref. The input cannot be connected in parallel to that A) the panels are placed into stand-by. If the contact is of other electronic boards (use separate contacts). open the units are active, if the contact is closed they are deactivated when a key is pressed the symbol flashes. -
Page 14: Wall-Mounted Remote Control Panel Assembly Eww649 - Ewg649
EWG649 - EWW649 Wall-mounted remote control panel assembly EWW649 - EWG649 The wall-mounted remote control EWG/EWW649 is an protruding teeth on the rear (A). electronic thermostat (fitted with an optional temperature Use the base of the controller (ref. B in diagram) to trace probe which can be remotely installed in one of the fan the fixing points on to the wall (use two opposing holes). -
Page 15: Spring-Loaded Terminal Connections -Ab+ And Cp
Spring-loaded terminal connections +AB- and CP Rigid or flexible wires with a 0.2 to 1 mm² cross-section easily, whereas with flexible cable it may be easier to can be inserted in the spring-loaded terminal blocks for use a long pointed pair of pliers to insert correctly. the serial connection. -
Page 16: Eww649 - Ewg649 Connections
EWW649 - EWG649 Connections Connect the RS485 line of the wall-mounted remote control do not make "star" connections; to one or more (up ot a maximum of 30) devices fitted with The RS485 cable connection is polarised, respect the electronics for remote control ESE645 or ESE648 using "A"... -
Page 17: E4T643
E4T643 Assembly and connections for on-board control panel E4T643 The on-board controller is a panel with 8 capacitative keys for installing on board and has a 230V output for controlling and amber display that contains the AUTO function (step a solenoid valve. ventilation adjustment). -
Page 18: Air Temperature Probe Assembly
Air temperature probe assembly To position the temperature probe (ref. A): insert the probe into the lower hole (ref. C) pass the probe through the hole on the shoulder (ref. B) fix the probe on the relevant hook (ref. D) E4T643 Connections water temperature probe (10 kΩ) RS water probe (10 kΩ) -
Page 19: Settings Menu Eca644 - Eca647 - Ewf644 - Ewf647 - Eda/Edb649 - Ewg/Eww649 - E4T643 Setup Menu
SETTINGS MENU ECA644 - ECA647 - EWF644 - EWF647 - EDA/ EDB649 - EWG/EWW649 - E4T643 Setup menu Through the remote control, the access to Setup menu will be available from display off: Operation Display - press the key "ON" for 10 sec. - the device turns on and the temperature appears - continue to press until "Ad"... - Page 20 Adjusting buzzer volume To change the volume: Display Operation - the volume setting range is from 00 (min) to 03 (max) - Increase or decrease the volume with the icons The volume changes after you confirm the modification. Adjusting the brightness of the display To adjust the brightness: Display Operation...
- Page 21 Factory reset To reset the control to factory settings: Display Operation - select "YS" to reset the settings - select "no" to keep the current settings Probe T regulation offset (room temperature probe) Display Operation - the adjustment range is from -9 to 12 Use this adjustment carefully.
-
Page 22: E2T543
E2T543 Assembly and connections for on-board control panel E2T543 The on-board controller with speed selector and ON/OFF (30°C) and maximum summer temperature (20°C) is suitable key, room thermostat adjustable from 5 to 40°C, winter for fitting on board the unit and has a 230V - 1A output for summer selector and minimum winter temperature function controlling a solenoid valve. -
Page 23: Air Temperature Probe Assembly
Air temperature probe assembly To position the temperature probe (ref. A): insert the probe into the lower hole (ref. C) pass the probe through the hole on the shoulder (ref. B) fix the probe on the relevant hook (ref. D) E2T543 Connections water temperature probe (10 kΩ) RS version cabling... -
Page 24: B3V137
B3V137 Assembly and connections for on-board control panel B3V137 The on-board controller with speed selector and ON/OFF key unit and has a 230V output for controlling a solenoid valve. and TERM room thermostat is suitable for fitting on board the Assembly Slide the control panel into its housing in the upper part N.B.: should the two brown terminals on the unit be... -
Page 25: B3V137 Connections
B3V137 Connections 230V connection permission from room 230V/50Hz electrical power supply thermostat RS version cabling DC inverter fan motor output for mobile suction panel servo (power water solenoid valve (230V/ 50Hz 1A output output 230V/ 50Hz 1A) voltage) water probe for RS version (10 kΩ) B3V137 N276663A Warnings table... -
Page 26: B4V642
B4V642 Assembly and fitting of fan control for remote control B4V642 Assembled on-board the unit, this card allows the regulation available in the market. of the motor with fixed speeds; it can be combined with It has a 230 V output to pilot the summer and winter solenoid control panels with thermostat and with all control panels valve. -
Page 27: Connection Diagram B4V642 With 3-Speed Thermostat
Connection diagram B4V642 with 3-speed thermostat make the electrical connections to a thermostat fit for use according to the diagram electrical supply 230V-50Hz RS version cabling solenoid valve permission input water probe for RS (10 kΩ) maximum fan speed DC inverter fan motor medium fan speed 3-speed room thermostat (to be purchased, installation and connection to be made by... -
Page 28: Led Signals
LED signals The LED (ref. A) is off if the CV input is not closed (stand-by • 3 flashes + pause indicates a disconnected or faulty condition). water probe alarm. It turns on when the CV contact is closed and indicates normal operation. -
Page 29: B4V642 + B3V151 Connection Diagrams
B4V642 + B3V151 10.1 B4V642 + B3V151 Connection Diagrams Wall control with thermostat, summer/winter selector and For 2-pipe units. speed selector in connection with B4V642. Electrical power supply 230V-50 Hz Water solenoid valve (230 V/ 50 Hz 1A output Permission input voltage) Mobile suction panel commander (power output Maximum fan speed (1,400 rpm) -
Page 30: B4V642 + B3V151 Connection Diagrams With Seasonal Switching
10.2 B4V642 + B3V151 Connection Diagrams with seasonal switching Wall control with thermostat, summer/winter selector and For 2-pipe units. speed selector in connection with B4V642. Electrical power supply 230V-50 Hz Mobile suction panel commander (power output 230V/ 50Hz 1A) Permission input RS version cabling Maximum fan speed (1,400 rpm) Medium fan speed (1,100 rpm) -
Page 31: B4V642 + B3V152
B4V642 + B3V152 11.1 B4V642 + B3V152 Connection Diagrams Built-in wall control with thermostat, summer/winter selector and speed selector in connection with B4V642. For 2-pipe units. Electrical supply 230V-50Hz water solenoid valve (230 V/ 50Hz 1A output Permission input voltage) Mobile suction panel commander (power output Maximum fan speed (1,400 rpm) 230V/ 50Hz 1A) -
Page 32: B4V642 + B3V152 Connection Diagrams With Seasonal Switching
11.2 B4V642 + B3V152 Connection Diagrams with seasonal switching Built-in wall control with thermostat, summer/winter For 2-pipe units. selector and speed selector in connection with B4V642. Electrical supply 230V-50Hz Mobile suction panel commander (power output Permission input 230V/ 50Hz 1A) RS version cabling Maximum fan speed (1,400 rpm) Medium fan speed (1,100 rpm) -
Page 33: B10642
B10642 12.1 Assembly and fitting of fan control for remote control B10642. When fitted on board the machine it allows for managing the For board B10642 control outputs these impedance values motor, with modulated speed; motor regulation can be made must be considered, especially when controlling more than using an analogue 0-10V DC input with 25 kΩ... -
Page 34: Connection Diagram B10642 With 0-10V Dc Thermostats / Signals
12.4 Connection diagram B10642 with 0-10V DC thermostats / signals make the electrical connections to a thermostat fit for use according to the diagram Electrical power supply 230V-50 Hz RS version cabling Appliance piloting input 0÷10 V water probe for RS (10 kΩ) water solenoid valve (230V/ 50Hz 1A output DC inverter fan motor voltage) -
Page 35: Ed Rs Full Flat Versions
ED RS FULL FLAT VERSIONS 13.1 Full flat version connections In this version, the servo mechanisms charged with moving the grill are pre-wired to the unit. They can be connected to the Y2 output on the panels using a dedicated connector (ref. -
Page 36: Versions With Connections On The Right
VERSIONS WITH CONNECTIONS ON THE RIGHT 14.1 Motor connection in versions with hydraulic connections on the right BB0646 Should the battery hydraulic connection positions need to be inverted from the left to the right hand side of the unit, The cables should be passed behind the unit through the the electrical connection box is also inverted, but as the fan dedicated hole (ref. - Page 40 INNOVA s.r. l . INNOVA s.r.l. Fraz . St rada, 16 - 38085 PIEVE DI BONO (TN) - ITALY Via I Maggio, 8 - 38089 Storo (TN) - ITALY tel. +39.0465.670104 fax +39.0465.674965 tel. +39.0465.670104 fax +39.0465.674965 info@innovaenergie.com info@innovaenergie.com www.innovaenergie.com N273541I - Rev.
