GridScan/Pro
5.

Overview

The emitter and receiver edges create a grid of infrared beams offering up to 2.5 m (8.2 ft) in protection height. When the
infrared beams are interrupted, the output sends a signal to the connected door control unit. As soon as the detection area
is clear again, the output switches to indicate that the area is "clear". The blanking system (standard versions, Chapter
4.2) is designed to mount directly into the guide rails. As the door closes, the GridScan/Pro recognizes the door as such
and does not switch the output.

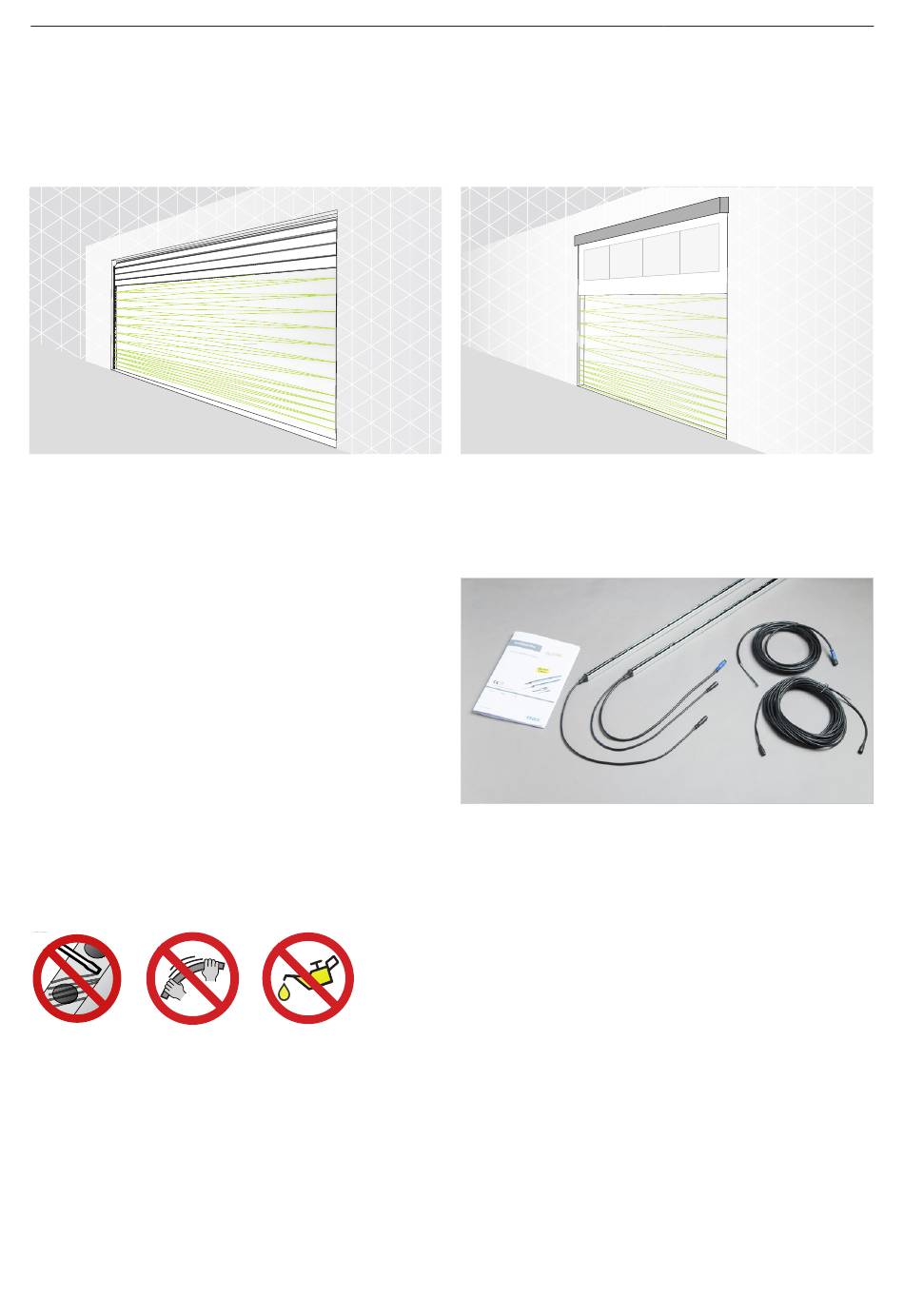

Figure 3:
Sectional doors with door blanking
5.1

Delivery package

The GridScan/Pro package comprises:
• 1 × GridScan/Pro emitter edge (Tx)
• 1 × GridScan/Pro receiver edge (Rx)
• 1 × Synchronization cable 10 m (33 ft)
• 1 × Connection cable 5 m (16.5 ft)
• 1 × Installation guide
5.2

General instructions and precautions

© CEDES | V 1.0
Figure 4:
High-speed doors with door blanking
Figure 5:
Typical GridScan/Pro delivery package
 Never scratch or paint the optical lenses because they form the
light path! Do not drill additional holes into the profile. Unpack
the profiles just before installation in order to avoid damage.
 Do not bend or twist the edges!
 Oil can damage the cables. Contamination must be avoided at
all times!
 Chemical can damage the profile and optical characteristics.
Contact must be avoided at all times!
English
5
