Frequency Central MU Wave Runner LFO Build Documentation

Frequency central

MU Wave Runner LFO

Build documentation for:

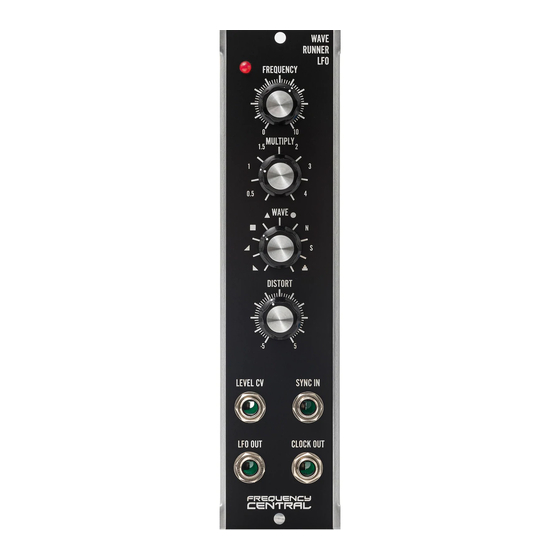

Wave Runner is a multi-waveform sync-able LFO based on the Electric

Druid TAPLFO2D family of code, but with some significant additions and

improvements. The TAPLFO2D-FC PIC is not compatible with similar

modules, and was developed specifically for the Wave Runner.

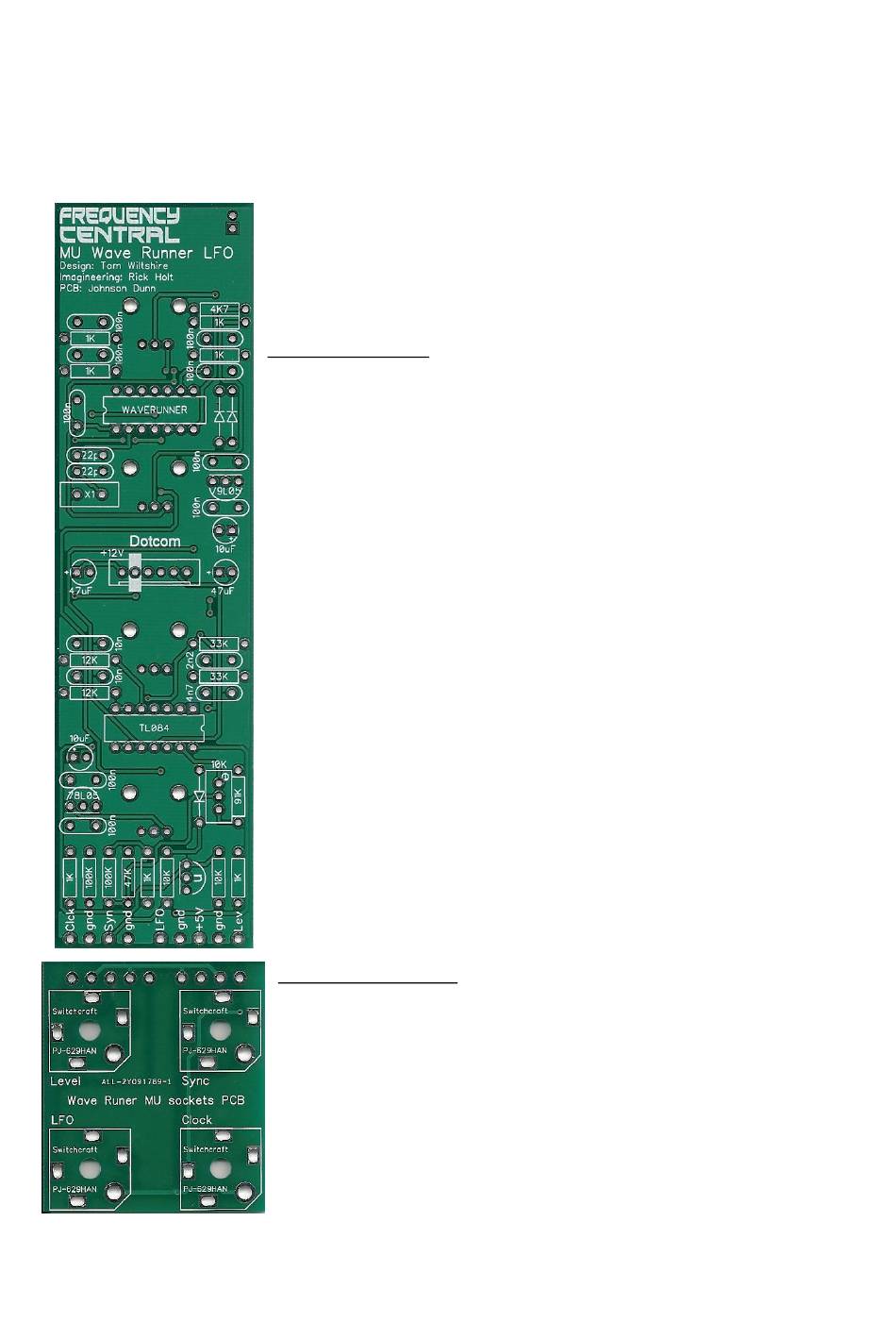

Main PCB Assembly

1. Place and solder all resistors and diodes

2. Place and solder 20MHz crystal

3. Place and solder both IC sockets

4. Place and solder both 22pF capacitors

5. Place and solder all non electrolytic capacitors

6. Place and solder BC547, 78L05 and 79L05

7. Place and solder power header

8. Place and solder 10K trimmer

9. Place and solder all electrolytic capacitors

10. Flip the PCB over and solder all four pots on the other side.

Place all sockets on the PCB, then place the panel over them. This will

assure that the sockets are correctly positioned. Flip the whole lot over

and solder the sockets into place.

Table of Contents

Do you have a question about the MU Wave Runner LFO and is the answer not in the manual?

Page 1 Frequency central Build documentation for: MU Wave Runner LFO Powered by Electric Druid code exclusive to Frequency Central Wave Runner is a multi-waveform sync-able LFO based on the Electric Druid TAPLFO2D family of code, but with some significant additions and improvements.
Page 2 Bill of Materials 1K x 7 22pF x 2 WAVE RUNNER PIC x 1 B100K x 4 4K7 x 1 2.2nF x 1 TL084 x 1 10K x 2 4.7nF x 1 BC547 x 1 ¼” Socket x 4 12K x 2 10nF x 2 78L05 x 1 33K x 2...
