Frequency Central MU System X Dual Amplifier Build Documentation

Based on the roland system 100m vca. mu system x dual amplifier features: main pcb, sockets pcb x 12
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

Frequency central
Build documentation for:
MU system X
Dual amplifier
Based on the Roland System 100M VCA. MU System X Dual Amplifier features:

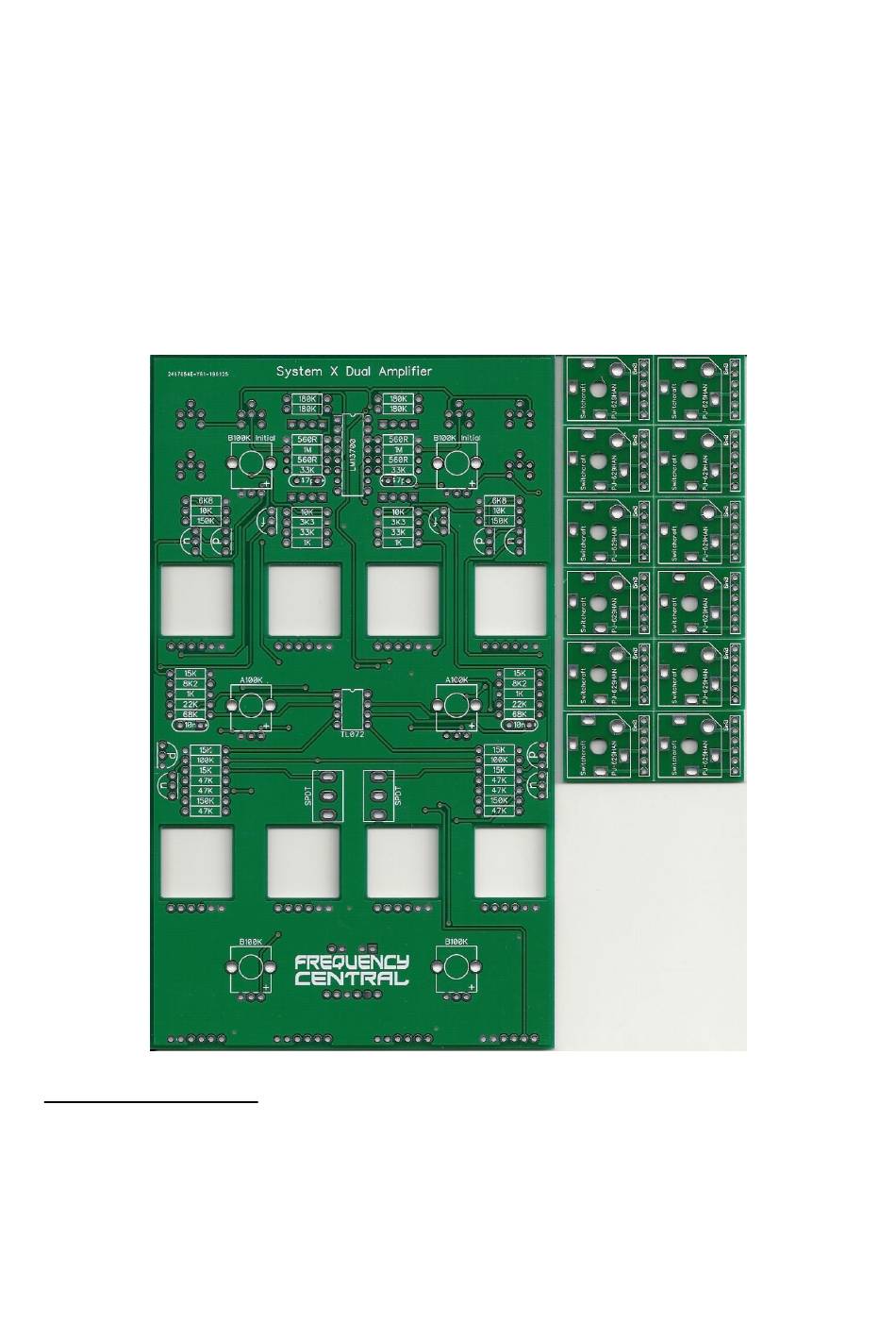

Main PCB, Sockets PCB x 12
Key to PCB screen print:
n: This signifies NPN BC547 transistors. Note the correct pinout as shown by the half circles.
p: This signifies PNP BC557 transistors. Note the correct pinout as shown by the half circles.
f: This signifies 2N5485 FETs. Note the correct pinout as shown by the half circles.
The PCB shows the correct orientation for BC547/BC557. Other transistor types can be used
(eg 2N3904/2N3906), but please observe the correct pinout. Please observe the correct
polarity of the electrolytic capacitors.
