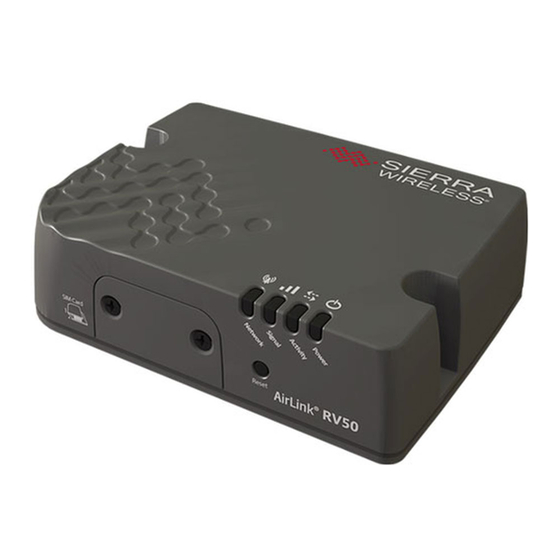

Sierra Wireless RV50 Install

Scope

Connect the RV50 to power and antennas for RMA upgrade or new field.

SAFETY WARNING

ADHERE TO ALL CAUTIONS AND SAFETY INSTRUCTIONS IN THE SIERRA WIRELESS MANUAL AND THE

ALSOENERGY INSTALLATION MANUAL.

Overview

RV50 runs on 24VDC and uses dual antennas for cell connection. They are typically provided

preconfigured for Verizon 4G service by AlsoEnergy.

Installation Procedure

Power Connection

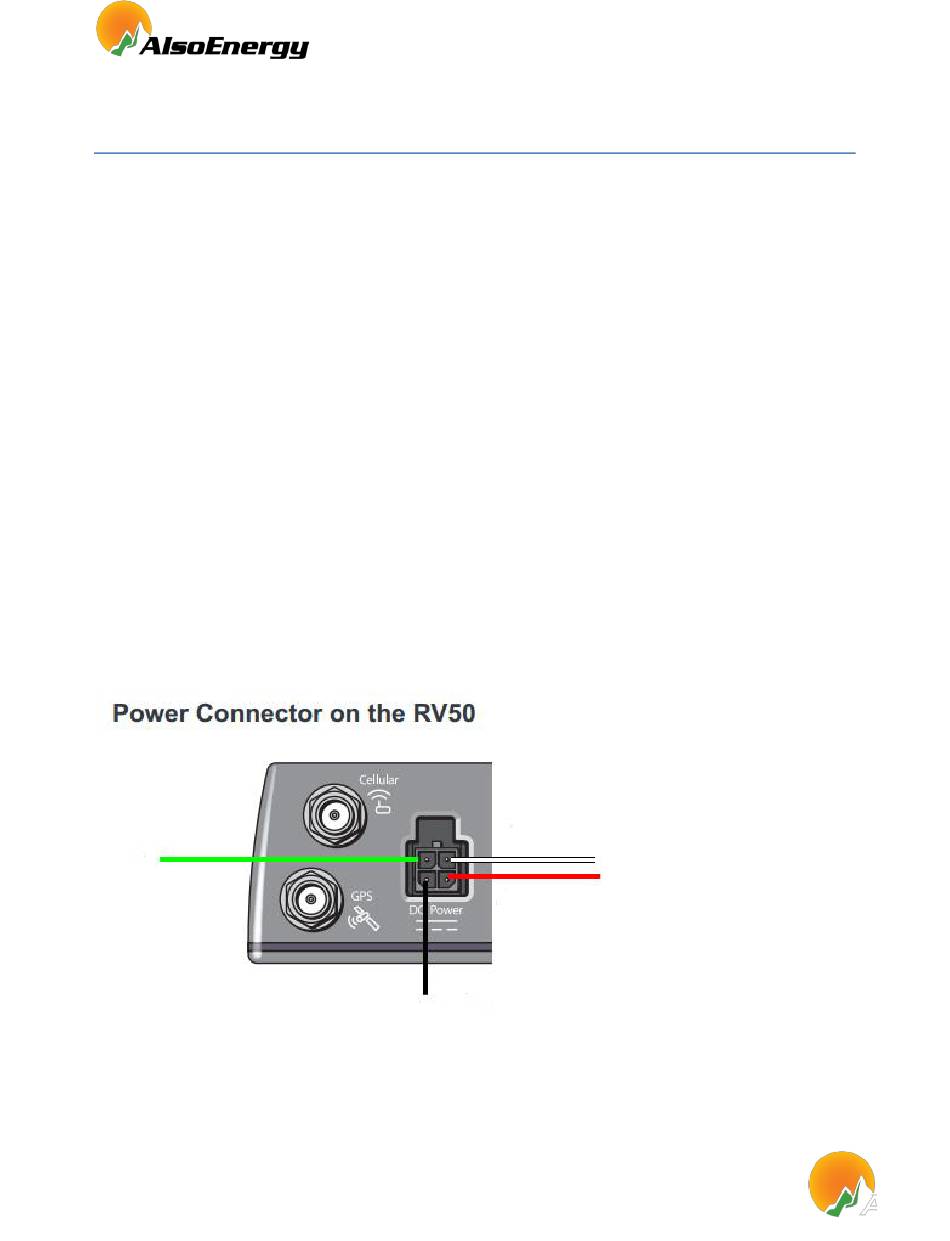

1. Red and White connect to 24VDC

2. Black connects to negative DC

3. Green is unused

Rev 1

866-303-5668

Cell Specific Supplement

www.AlsoEnergy.com

Need help?

Do you have a question about the AirLink RV50 and is the answer not in the manual?

Page 1 Scope Connect the RV50 to power and antennas for RMA upgrade or new field. SAFETY WARNING ADHERE TO ALL CAUTIONS AND SAFETY INSTRUCTIONS IN THE SIERRA WIRELESS MANUAL AND THE ALSOENERGY INSTALLATION MANUAL. Overview RV50 runs on 24VDC and uses dual antennas for cell connection. They are typically provided preconfigured for Verizon 4G service by AlsoEnergy.
Page 2 Cell Specific Supplement Antenna Connections Mount the antennas as high as possible and carefully route the cables into the enclosure. 1. Dual antennas use the Cellular and Diversity connectors. 2. Single antenna with three cables, small cable is for GPS connector, other two will be Cellular and Diversity.
Page 3 Cell Specific Supplement Troubleshooting Rev 1 866-303-5668 www.AlsoEnergy.com...
Page 4 Cell Specific Supplement More information More information can be found online in the AirLink RV50 Hardware User Guide. Rev 1 866-303-5668 www.AlsoEnergy.com...
