Toa HY-UV04 Installation Manual

SPEAKER MOUNTING BRACKET
Thank you for purchasing TOA's Speaker Mounting Bracket.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
1. SAFETY PRECAUTIONS
• Before installation or use, be sure to carefully read
all the instructions in this section for correct and
safe operation.
• Be sure to follow all the precautionary instructions
in this section, which contain important warnings
and/or cautions regarding safety.
• After reading, keep this manual handy for future
reference.
WARNING
Indicates a potentially hazardous situation which,
if mishandled, could result in death or serious
personal injury.
• Since the unit is designed for indoor use, do not
install it outdoors. If installed outdoors, the aging of
parts causes the unit to fall off, resulting in personal
injury.
• Do not use other methods than specified to mount
the bracket. Extreme force is applied to the unit and
the unit could fall off, possibly resulting in personal
injuries.
• Use nuts and bolts that are appropriate for the
ceiling's or wall's structure and composition. Failure
to do so may cause the unit to fall, resulting in
material damage and possible personal injury.
• Tighten each nut and bolt securely. Ensure that
the bracket has no loose joints after installation to
prevent accidents that could result in personal injury.
• Use the specified mounting bracket in combination.
Doing otherwise may cause the unit or component
to fall off, resulting in personal injury.
CAUTION
Indicates a potentially hazardous situation which,
if mishandled, could result in moderate or minor
personal injury, and/or property damage.
• Avoid touching the unit's sharp metal edge to
prevent injury.
• Do not stand or sit on, nor hang down from the unit
as this may cause it to fall down or drop, resulting in
personal injury and/or property damage.
日本語の設置説明書は裏面をご覧ください。
INSTALLATION MANUAL
• Have the unit checked periodically by the shop from
where it was purchased. Failure to do so may result
in corrosion or damage to the unit or its mounting
bracket that could cause the unit to fall, possibly
causing personal injury.
2. GENERAL DESCRIPTION
The TOA HY-UV04 is the dedicated mounting bracket for
the SR-F04 Speaker system. It allows the SR-F04 to be
mounted in a vertical orientation.
It can be used in conjunction with one of the optional
speaker mounting brackets shown below depending on the
installation location.
For pipe mount use:
For ceiling mount use: HY-C0801
For wall mount use:

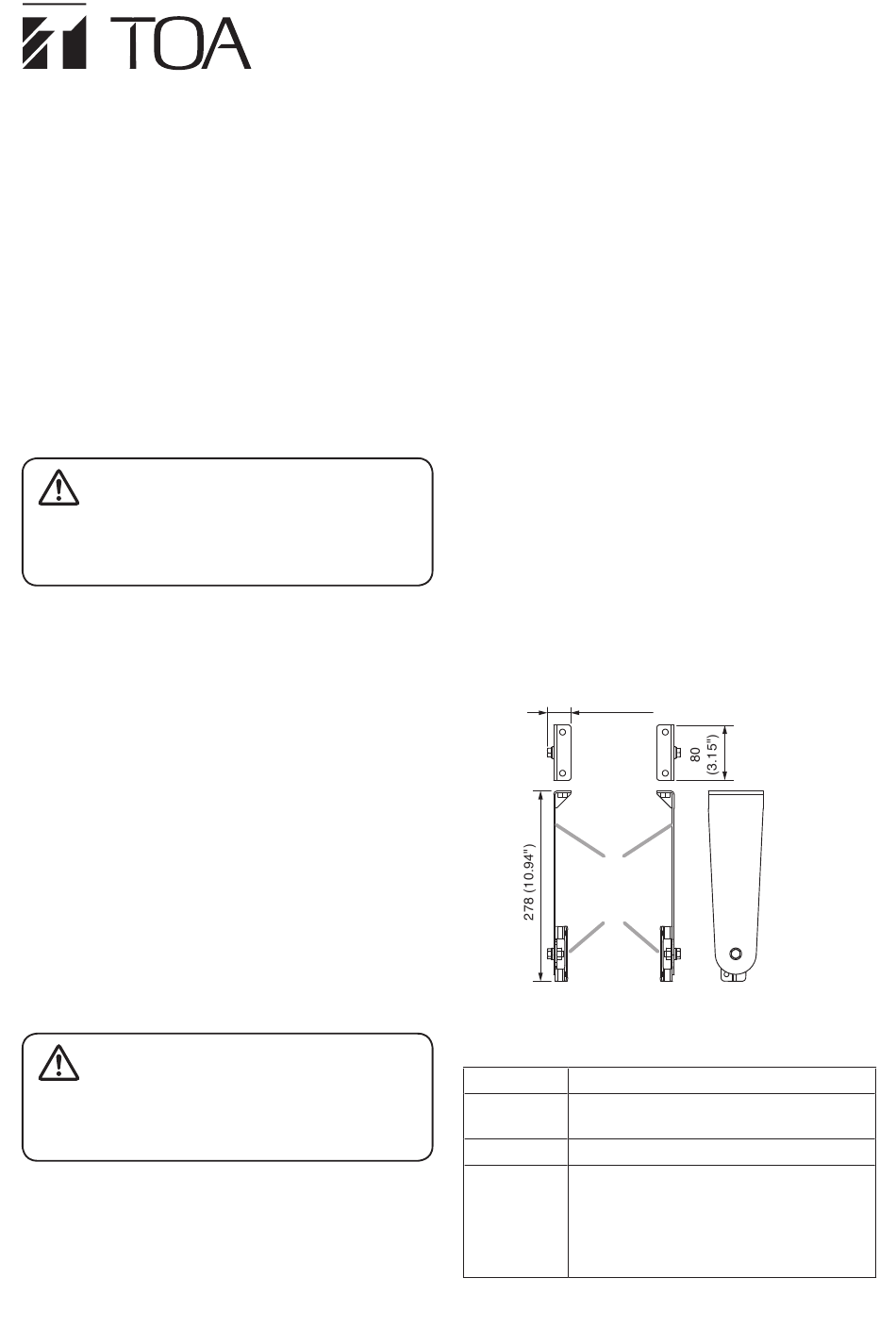

3. DIMENSIONAL DIAGRAM
[Top]
34.1 (1.34")
[Front]
Arms
Hands
4. SPECIFICATIONS
Finish Steel plate, black, semi-glossy, paint
Dimensions 80 (w) x 278 (h) x 34.1 (d) mm
(3.15" x 10.94" x 1.34")
Weight 1 kg (2.2 lb)
Accessories For speaker mounting
Hex head bolt M6 x 20
with spring and plain washers ... 4
For bracket mounting
Hex head bolt M8 x 18
with spring and plain washers ... 2
Note: The design and specifications are subject to change
without notice for improvement.
HY-UV04
HY-B0801
HY-W0801
Unit : mm
[Right side]
