AM-1 MOUNTING BRACKET

1. GENERAL DESCRIPTION

The AM-1 mounting bracket is an optional kit for mounting the AM-1 Real-time Steering Array

Microphone on a wall, ceiling or securing it to a podium. The mount is available in Black (MB-AM1B-

Q) or White (MB-AM1W-Q).

The MB-AM1B-Q(MB-AM1W-Q) includes:

M3 x .5 PAN HEAD SCREWS

8MM LENGTH (QTY. 2)

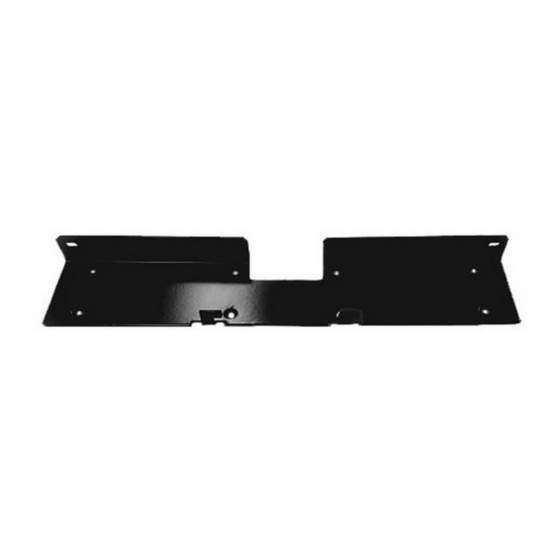

MICROPHONE BRACKET

COUNTERSUNK SCREW HOLES (4)

FOR #10 FLAT HEAD SCREWS

#10 SHEET METAL SCREW

(QTY. 4)

#10‐24 WING

(QTY. 4)

TOA Electronics, Inc.

INSTALLATION MANUAL

#10‐24 X 2" FLAT HEAD SCREW

(QTY. 4)

MB-AM1B-Q

MB-AM1W-Q

DRYWALL ANCHORS

(QTY. 4)

Table of Contents

Do you have a question about the AM-1 and is the answer not in the manual?

Page 1: Installation Manual
MB-AM1W-Q 1. GENERAL DESCRIPTION The AM-1 mounting bracket is an optional kit for mounting the AM-1 Real-time Steering Array Microphone on a wall, ceiling or securing it to a podium. The mount is available in Black (MB-AM1B- Q) or White (MB-AM1W-Q).
Page 2 2. INSTALLATION PROCEDURE The MB-AM1B-Q(MB-AM1W-Q) may be used to mount the AM-1 in the following ways: Securing to Podium Flush-mounted on wall or ceiling Step 1: Position mount on wall, ceiling or table and mark holes on surface with marker or pencil.
