Toa HY-0871WS Instruction Manual

SPEAKER MOUNTING BRACKET
Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.

SAFETY PRECAUTIONS

• Be sure to read the instructions in this section carefully
before use.
• Make sure to observe the instructions in this manual as
the conventions of safety symbols and messages
regarded as very important precautions are included.
• We also recommend you keep this instruction manual
handy for future reference.
Safety Symbol and Message Conventions
Safety symbols and messages described below are used
in this manual to prevent bodily injury and property
damage which could result from mishandling. Before
operating your product, read this manual first so you are
thoroughly aware of the potential safety hazards as well as
understand the safety symbols and messages.
WARNING
Indicates a potentially hazardous
situation which, if mishandled, could result in death or
serious personal injury.
• Install the unit only in a location that can structurally
support the weight of the unit and the mounting bracket.
Doing otherwise may result in the speaker falling down
and causing personal injury and/or property damage.
• Owing to the speaker's size and weight, be sure that at
least two persons are available to install the speaker.
Failure to do so could result in personal injury.
• Do not hang down from the bracket, as the bracket could
fall, resulting in personal injury.
• Use nuts and bolts (not supplied with the unit) that are
appropriate for the wall's structure and composition. If the
wall cannot withstand the weight of both the speaker and
bracket, the speaker may fall, resulting in material damage
and possible personal injury.
INSTRUCTION MANUAL

GENERAL DESCRIPTION

The HY-0871WS Speaker Mounting Bracket is specially
designed for mounting TOA's ES-0871 Speaker System to
walls.

COMPONENTS

Arm A ................................................................. 2
Arm B ................................................................. 2
Bracket ............................................................... 3
Base ................................................................... 1
Hexagon bolt W3/8" x 45 ................................. 10
Spring washer (W3/8") ..................................... 10
Plain washer (W3/8") ....................................... 10
Square nut (W3/8") ............................................ 6
Hexagon bolt M8
(with spring washer and plain washer) ............... 2
INSTALLATION

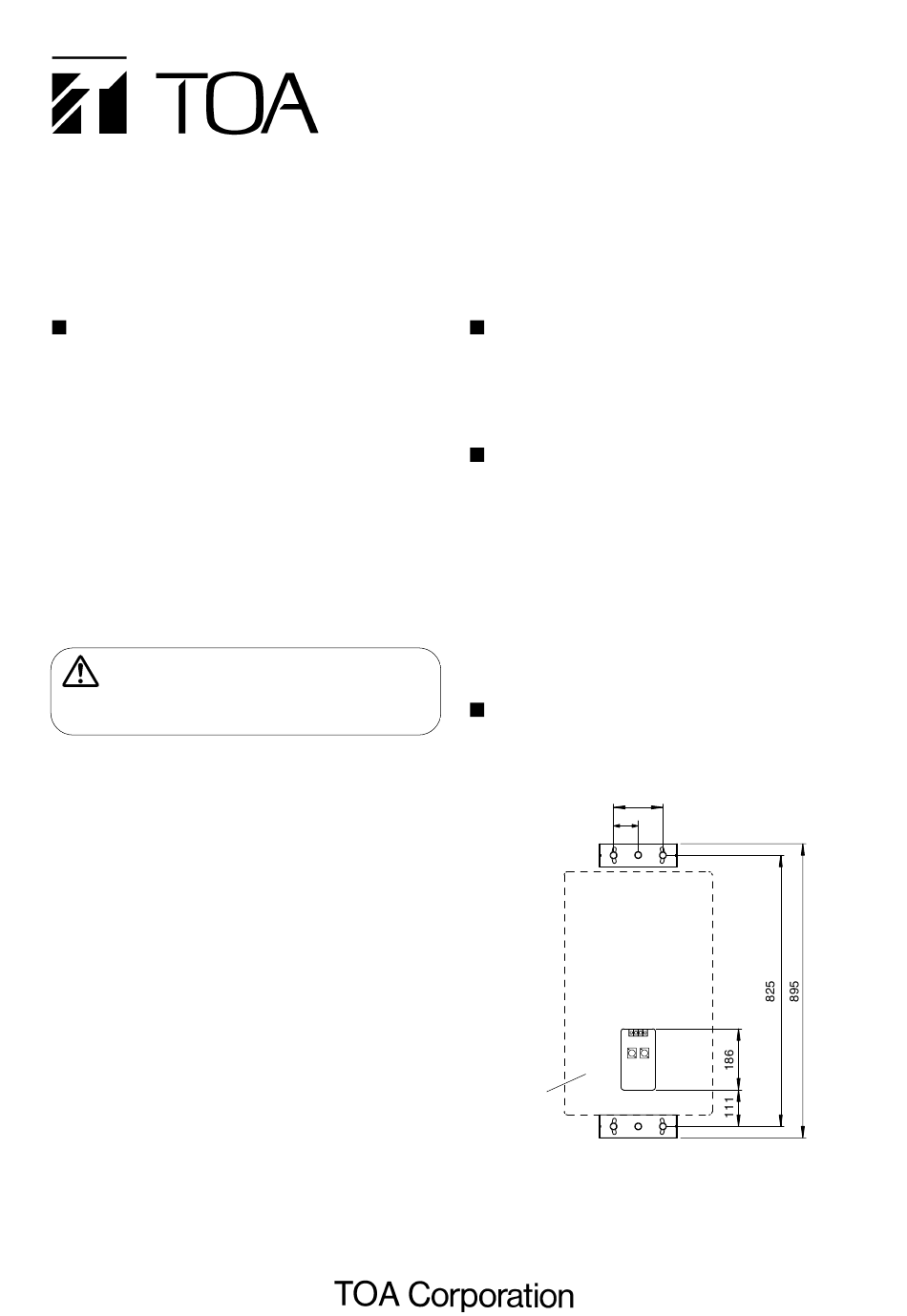

• Wall Mounting Dimension
150
75
ES-0871
HY-0871WS
Unit : mm
