SA-NS55P
9.4.

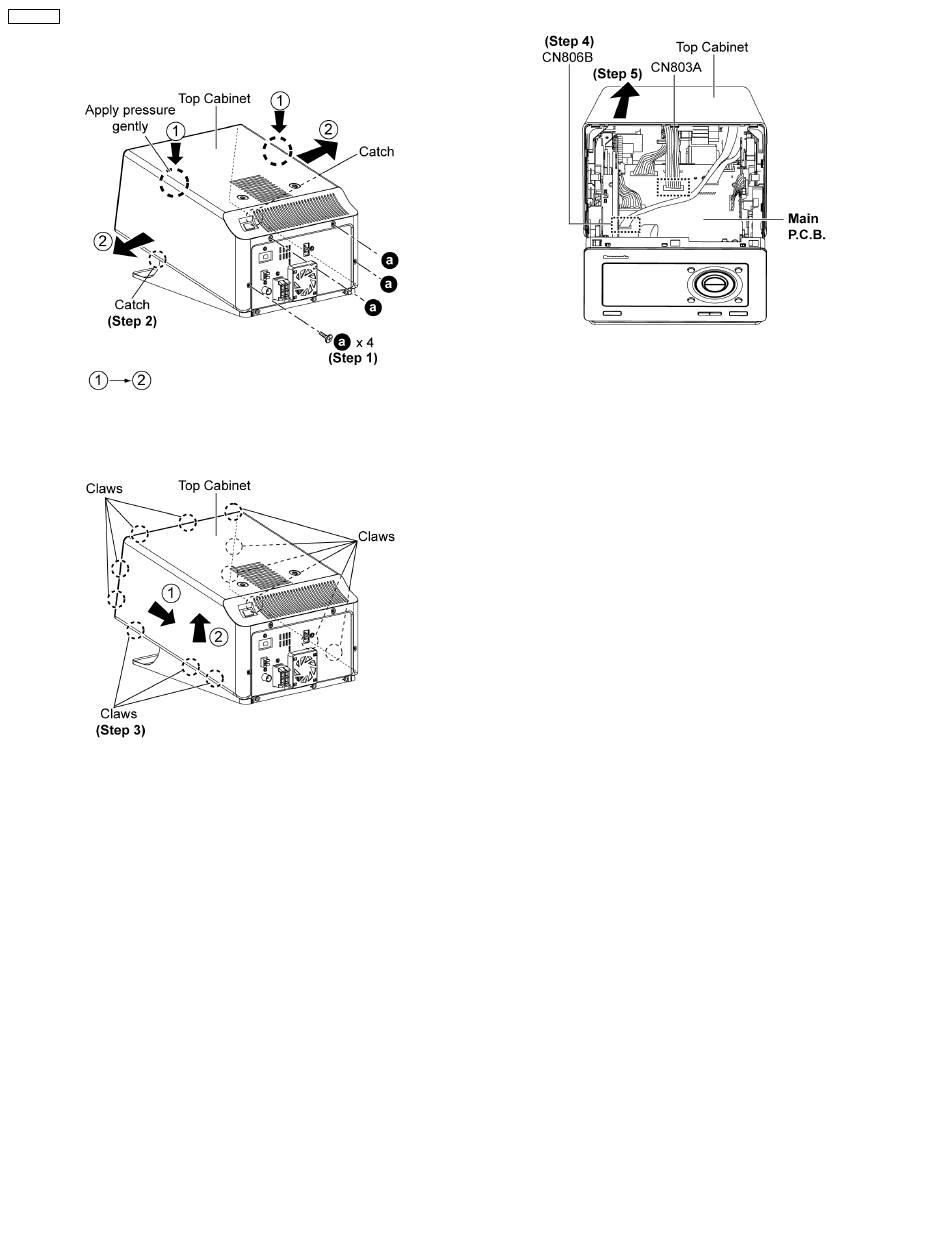

Disassembly of Top Cabinet
Unit
Step 1: Remove 4 screws.
Step 2: Press gently down and push outward as per
arrow shown (Be careful of Catches)
Step 3: Pull backward and lift up the Top Cabinet
as arrow shown. (Be careful of Claws)
Step 4: Detach cable (CN803A and CN806B) on
Main P.C.B. .
Step 5: Remove Top Cabinet as arrow shown.
22
