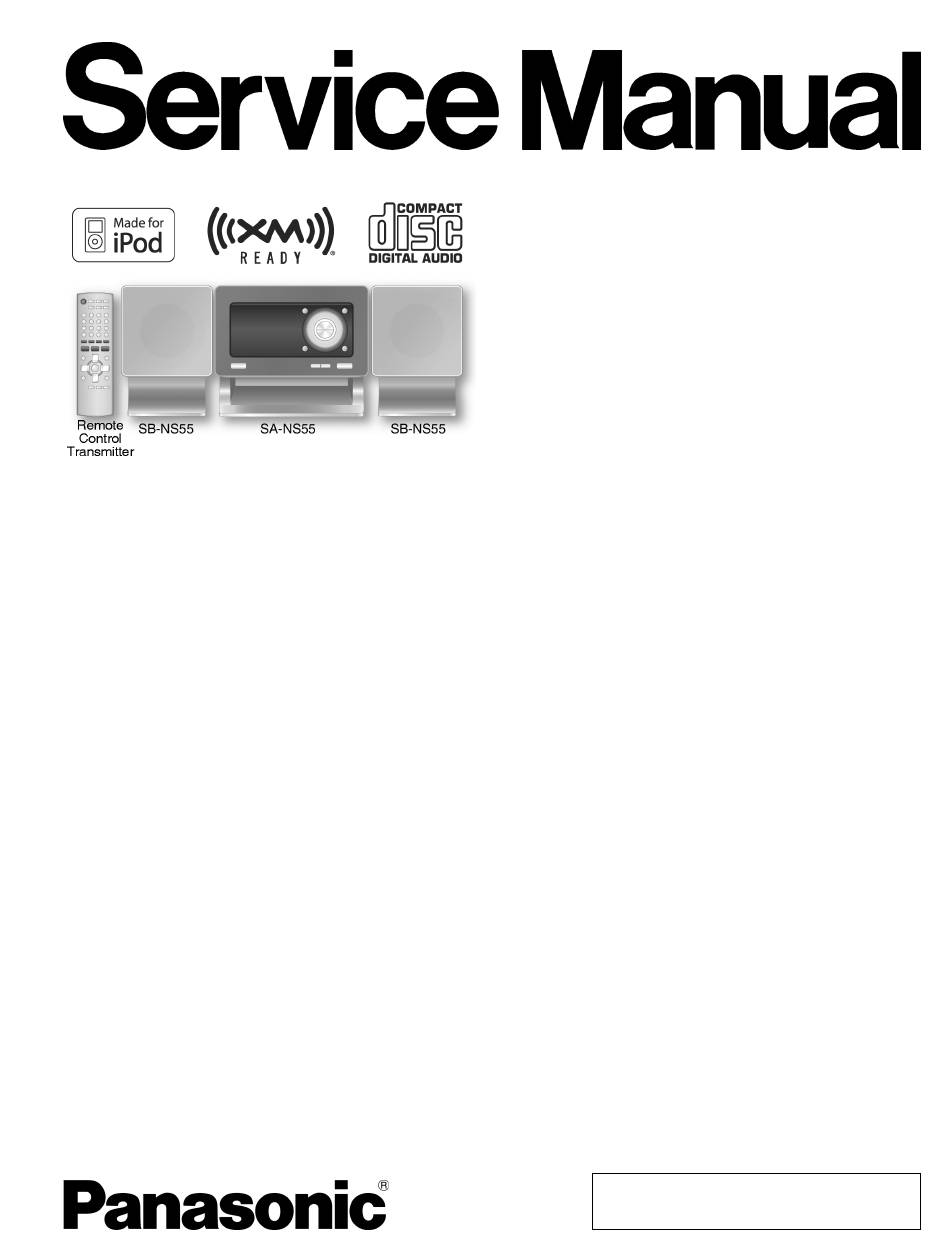

Panasonic SA-NS55P Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Stereo System
  5. SA-NS55P
  6. Service manual
Panasonic SA-NS55P Service Manual

Panasonic SA-NS55P Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version
Specification
n Amplifier Section
FTC OUTPUT POWER both channel driven
simultaneously
10 % Total harmonic distortion (THD)
60 Hz to 20 kHz
RMS OUTPUT POWER both channel driven
simultaneously
10 % Total harmonic distortion (THD)
1 kHz
Input impedance
MUSIC PORT
Output impedance
HEADPHONE
Phone jack
Terminal
Music Port jack
Terminal
XM Ready
n FM Tuner Section
Frequency range
Sensitivity
S/N 26 dB
Antenna terminals
Preset station
12 W per channel (6 Ω)
15 W per channel (6 Ω)
12 KΩ
16 to 32 Ω
Stereo, 3.5 mm
Stereo, 3.5 mm
XM Mini-Tuner and Home Dock
87.9 to 107.9 MHz (200 kHz step)
87.5 to 108.0 MHz (100 kHz step)
0.10 µV (IHF)
1.20 µV
75 Ω (unbalanced)
FM 20 stations
AM 15 stations
SA-NS55P
Colour
(K)... Black Type
n AM Tuner Section
Frequency range
Sensitivity
S/N 20 dB (at 1000 kHz)
n CD Section
Disc played [8 cm (3") or 12 cm (5")]
(1) CD-Audio (CD-DA)
(2) CD-R/RW (CD-DA, MP3 formatted disc)
(3) MP3
Sampling frequency
CD
MP3
Bit rate
MP3
Decoding
Pickup
Beam source
Wavelength
Laser power
Audio output (Disc)
Number of channels
Frequency response
Wow and flutter
Digital filter
D/A converter
© 2007 Matsushita Electric Industrial Co. Ltd.. All
rights
reserved.
distribution is a violation of law.
ORDER NO. MD0703018CE
CD Stereo System
520 to 1710 kHz (10 kHz step)
447 µV/m
44.1 kHz
32 kHz, 44.1 kHz, 48 kHz
32 kbps to 384 kbps
16/20/24 bit linear
Semiconductor laser
CLASS 1
2 channel
20 Hz to 20 kHz (+1, -2dB)
Below measurable limit
MASH (1 bit DAC)
Unauthorized
copying
A6
785 nm
8 fs
and
