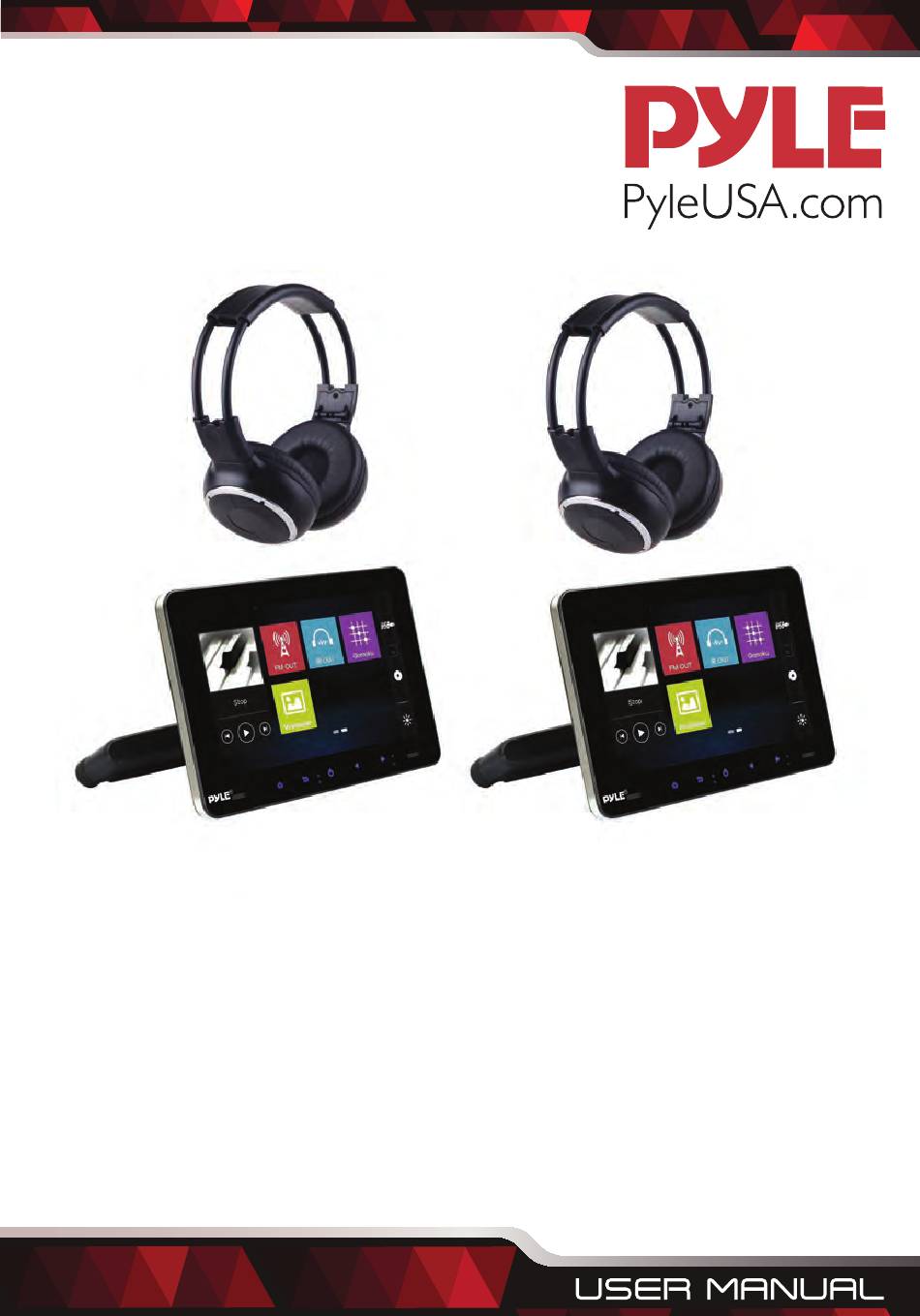

- Page 1 PLDHR926KT Touchscreen Multimedia Disc Player Bundle Kit Dual Vehicle Headrest Mount Multimedia Entertainment Systems with Wireless Headphones (9.4’’ -inch Displays)
-
Page 2: Front Panel
FRONT PANEL MULTIMEDIA PLAYER 1. LCD Panel 2. MENU 3. RETURN 4. POWER 5. Pre/rewind forward 6. Next/Fast 7. DC 12V 8. AV2 In jack 9. Earphone jack 10. Micro SD Memory Card Slot 11. USB read port SIDE PANEL 1. - Page 3 1. Main Menu You can choose DVD disc, USB, Micro SD Memory Card, AV1 and AV2. 2. DVD disc menu www.PyleUSA.com...
- Page 4 3. Second main menu, you should touch middle of panel from right to left to move. You can simply access all features by tapping on the touch screen buttons. Tap the icons to enter a desired mode. Select Language/Beep/Car Logo/Background/Aspect ratio and IR setup www.PyleUSA.com...
- Page 5 4. Infrared Setup 5. FM Setup www.PyleUSA.com...
- Page 6 6. USB Card Read 7. SD Card Read www.PyleUSA.com...
-
Page 7: Installation
INSTALLATION 1. Take out the machine, remove the bracket. 2. Remove the screws from bracket. 3. Put the plastic bracket parts in between two metal poles ,at the same time, push 2 screws to x up bracket. 4. Hold up unit, insert the metal plate in black of the unit into plastic bracket parts, then adjust it to the right angle and x it tightly, at last lower the orignal car headrest to the appropriate position. - Page 8 WIRING Audio Out Right (Red) Audio Output Left (White) Video Output (Yellow) VIdeo Input (Yellow) Audio Input Right (Red) Audio Input Left (White) DC + 12V (Red) GND (Black) Attention 1. Do not put the machine in the rain or damp environment lest outbreak of re or any damage to machine.
-
Page 9: Troubleshooting
TROUBLESHOOTING TROUBLES SOLUTIONS No sound Power is disconnected; and image the machine is not turned ON No image signal wire is disconnected No sound Volume too low or the volume setup is not workable Incorrect setup of image luminance and contrast; Black screen Undervoltage Blurring and... - Page 10 PLDHR926KT Touchscreen Multimedia Disc Player Bundle Kit Dual Vehicle Headrest Mount Multimedia Entertainment Systems with Wireless Headphones (9.4’’ -inch Displays) Features: • Dual Universal Vehicle Headrest Mount Displays • Audio & Video Car Entertainment System • Touchscreen Display Panel • Top-Loading CD/DVD Players •...
- Page 11 What’s in the Box: • (2) 9.4’’ -inch CD/DVD Players • (2) Wireless IR Headphones • Headrest Mounting Bracket • Remote Control • Power Wiring Harness Cable • Cigarette Lighter Power Cable Technical Speci cations: • Display Type: LCD, 9.4’’ -inches (x2) •...
