WWW. PYLEAUDIO.COM

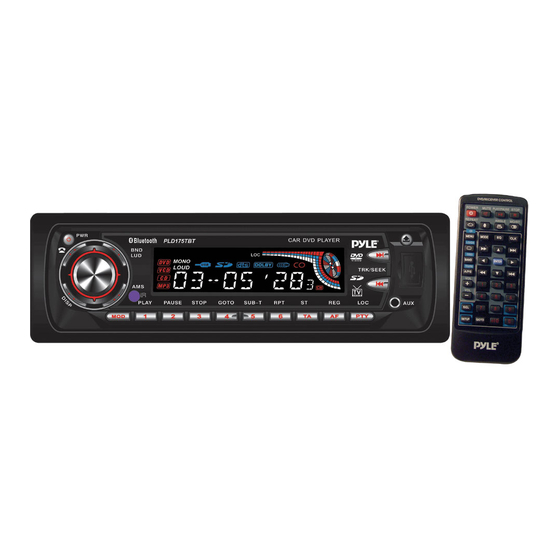

CAR VIDEO SYSTEM
DVD/VCD/MP4/MP3/CD/CD-R
/CD-RW Compatible
Anti-Shock Mechanism
AM/FM 2 Band Radio
Analogue TV Receiver
Bluetooth Function
PAL/NTSC Color System
Flip Down Detachable Front Panel
A/V Output & A/V Input
Sub-woofer Function
PLD175TBT
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the View PLD175TBT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pyle View PLD175TBT

Summary of Contents for Pyle View PLD175TBT

  • Page 1 WWW. PYLEAUDIO.COM CAR VIDEO SYSTEM DVD/VCD/MP4/MP3/CD/CD-R /CD-RW Compatible Anti-Shock Mechanism AM/FM 2 Band Radio Analogue TV Receiver Bluetooth Function PAL/NTSC Color System Flip Down Detachable Front Panel A/V Output & A/V Input Sub-woofer Function PLD175TBT Instruction Manual...

  • Page 3: Table Of Contents

    CONTENTS Safety Information Installation 1. DIN FRONT-MOUNT (Method A) 2. DIN REAR-MOUNT (Method B) Wiring Diagram Operation Location and Function of Keys Preparing The Remote Control Using The Detachable Front Panel General Operation Radio Operation CD/MP3 Operation DVD/VCD Operation Data Disc Play Operation Operation of USB device Operation of Memory Card AV In Operation...

  • Page 4: Safety Information

    Safety Information CAUTION: Automotive DVD player is a class 1 laser product. However this car DVD player uses a visible/invisible laser beam which could cause hazardous radiation exposure if directed. Be sure to operate the car DVD player correctly as instructed.

  • Page 5: Installation

    Label side up Wipe the disc from center toward the outside edge Preparing New Discs with Rough Spots A new disc may have rough edges on its inside and outside edges. If a disc with rough edges is used, the proper setting will not be performed and the player will not play the disc.

  • Page 6: Din Rear-Mount(Method B)

    (Fig.1) 1. Dashboard 2. Hoder After inserting the holder into the dashboard, select the appropriate tab according to the thickness of the dashboard material and ben them inwards to secure the holder in place. 3. Screw (Fig.2) 1. Dashboard 2. Nut (5mm) 3.

  • Page 7: Wiring Diagram

    Wiring Diagram TV Socket White to Rear Lch RCA output Red to Rear Rch RCA output Green to SUB-Woofer output Violet Rear Right + Violet/Black Rear Right - Grey Front Right + Grey/Black Front Right - White Front Left + Green Rear Left + Green/Black Rear Left - White/Black Front Left -...

  • Page 8: Operation

    Operation Location and Function of Keys AV IN To connect with mobile audio or video system by the cable (included in unit) When you press button (3) and the front panel flip down :...

  • Page 9: Preparing The Remote Control

    Remote control: DISP MODE MUTE SUB-T ZOOM ANGLE ENTER SETUP MENU BT MENU TRK/TUN TITLE Preparing The Remote Control When using the Remote Control * Before you using the remote control, please take the transparent insulator slice off the bottom of remote control. * Point the remote control at the remote sensor (9) within 2 meters.

  • Page 10: Using The Detachable Front Panel

    Using The Detachable Front Panel REMOVING AND PROTECTING DETACHABLE FRONT PANEL. The front panel of the unit may be removed as a theft deterrent. After removing the front panel, use the case provided to keep the front panel from getting damaged. 1.Press the Open button (3) to flip down the front panel.
  • Page 11 Sub-woofer: ON/OFF 2. Rotate the button to choose the desired item. Remote control operation Press button (29) to choose the desired item. Display/Adjust Time 1. Displaying time: Press button (7) to show current DISP information and time on the LCD, and it returns to original status after 5 seconds.

  • Page 12: Radio Operation

    - Error symbol on the display. Note: If press RESET button(1), the unit can't work yet, please use a cotton swab soaked in isopropyl alcohol to clean the disc socket. Radio Operation Selecting The Frequency Band Press BAND button (14) shortly to select the desired band.
  • Page 13 Selecting Tracks In Single Step Press button (18) or skip to the previous track or the next track. Track number shows on display. Press and Hold button (18) or button (19) to fast reverse or fast forward. It return to normal mode when you release the button.

  • Page 14: Dvd/Vcd Operation

    DVD/VCD Operation Playback with PBC Menu For some VCD or SVCD discs there is menu in order to select the deired contents This menu is called PBC Playback Control menu Press button (37) to toggle between PBC ON and PBC OFF. In PBC ON mode, REPEAT, RANDOM, A- B, PROGRAM and GOTO functions are void.
  • Page 15 To revert to normal playback, press button again. REPEAT CANCEL Finding The Beginning of Chapters or tracks (Files) Use this function to easily move to the beginning of the chapters or tracks (files) on the disc. During playback, each time button ( ) or button (...
  • Page 16 GOTO Function Press GOTO button, the screen will display the following message: FOR DVD: Use the number keys (32) to input the desired Title, Chapter or Time, and then press ENTER button (30) to confirm. FOR VCD: Use the number keys (32) to input the Track and Time then press (30) to confirm.
  • Page 17 ANGLE 1 The angle switches between the angles recorded on the disc each time the button is pressed. Notes: Some time may be required for the angle to change. Depending on the disc, the angle may switch in one of two ways. 1 Seamless: The angle switches smoothly.

  • Page 18: Data Disc Play Operation

    Data Disc Play Operation When you insert a data disc including audio (MP3), movie (MPEG), picture (JPG) files into the disc slot, the following media play window will be shown on the screen: Explain as follows: Work area A: folders list Work area B: files list Work area C:...

  • Page 19: Av In Operation

    the card is in good condition, or take out the card then insert it into the card slot once more. AV In Operation This disc player offers you the option of using the auxiliary A/V input connect a video game, digital camera camcorder or other units you wish to use in your automobile audio video system.

  • Page 20: Setup

    2. About MP3 What is MP3? MP3, whose official name is MPEG-1 Audio Layer 3, is a compression standard ” prescribed by the ISO, the International standardization organization and MPEG which is a joint activity institution of the IEC. MP3 files contain compressed audio data. MP3 encoding is capable of compressing audio data at extremely high ratios, reducing the size of music files to as much...

  • Page 21: Language Setup

    Select AUTO format, the player TV output Change the TV mode among NTSC, PAL and AUTO. The default setting is NTSC format. SCREEN SAVER Change the SCREEN SAVER on or off. SETTING the TV TYPE Use the procedure described below to set the output screen according to the type of TV monitor being used.

  • Page 22: Audio Setup

    LANGUAGE SETUP OSD LANGUAGE AUDIO LANG SUBTITLE LANG MENU LANG DIVX [R] VOD EXIT SETUP You can change the OSD/ AUDIO/ SUBTITLE/ MENU language: OSD LANGUAGE: ENGLISH/GERMAN/SPANISH/FRENCH/PORTU GUESE/ITALIAN/RUSSIAN/POLISH AUDIO LANG: ENGLISH/GERMAN/SPANISH/FRENCH/PORTU GUESE/ITALIAN/ RUSSIAN /POLISH SUBTITLE LANG: ENGLISH/GERMAN/SPANISH/FRENCH/PORTU GUESE/ITALIAN/ RUSSIAN /POLISH MENU LANG: ENGLISH/GERMAN/SPANISH/FRENCH/PORTU GUESE/ITALIAN/...

  • Page 23: Bluetooth Function Tipwizard

    Bluetooth function Tipwizard 1. PAIR During pairing, please input pairing PIN code “8 ” and confirm in your mobile phone. 2. CONNECT The bluetooth module can auto connect with your mobile phone so long as you activate the bluetooth of the mobile phone.
  • Page 24 7. Voice dialing function If your mobile phone support voice dialing function, you can dial a phone number by voice dialing. Remark: Please operate the voice dial function according to your mobile phone manual. 8. A2DP Function If your mobile phone support A2DP function ( Advance Audio Distribution Profile) that it is special designed for...

  • Page 25: Trouble Shooting

    Trouble Shooting If it appears that your DVD unit is faulty, first consult this checklist. It may be that something simple has been overlooked. Do not try to repair the player by yourself, as this will invalidate the warranty. Only qualified service personnel can remove the cover or service this player.

  • Page 26: Specification

    Specification 1. GENERAL Power Supply Requirements DC 12 Volts, Negative Ground Chassis Dimensions 178(W)x160(D)x 50(H) Tone Controls - Bass (at 100 Hz) 10 dB ± - Treble (at 10 KHz) 10 dB ± Maximum Output Power 4x60 watts Current Drain 15 Ampere (max.) 2.
