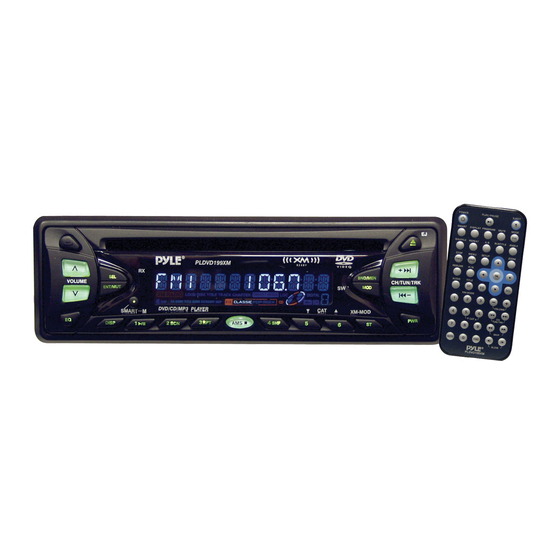

Pyle PLDVD199XM Owner's Manual

Mobile audio/video system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
•
Digital Audio Out-Coaxial
•
PLL Synthesizer Stereo Radio
•
DVD Player
•
Automatic Memory Storing
•
Full Detachable Panel
•
Preset Equalization
•
Multi-subtitle Languages Function
•
Multi-audio Languages Function
•
Multi-angle Function
•
Parental Control
•
Remote Control
•
XM Function
OWNER'S MANUAL
Mobile Audio/Video System
www.pyleaudio.com
PLDVD199XM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLDVD199XM and is the answer not in the manual?

Questions and answers

Related Manuals for Pyle PLDVD199XM

Summary of Contents for Pyle PLDVD199XM

  • Page 1 DVD Player • Automatic Memory Storing • Full Detachable Panel • Preset Equalization • Multi-subtitle Languages Function • Multi-audio Languages Function • Multi-angle Function • Parental Control • Remote Control • XM Function OWNER’S MANUAL Mobile Audio/Video System www.pyleaudio.com PLDVD199XM...

  • Page 2: Use This Product Safely

    FEATURES Compatible with PAL DVD (Video CD) and NTSC DVD (Video CD) This player can play discs recorded in either PAL or NTSC format. • A single LSI chip now integrates all major DVD playback circuit functions including MPEG2 decoder, video D/A converter, and audio decoders.

  • Page 3: Table Of Contents

    CONTENTS Safety Information ...4 Disc Notes ...5 Installation ...6 Using the Detachable Front Panel ...9 Wiring Connection ...10 Location and Function of Keys...11 The Player ...11 Remote Control...12 Remote Control...14 Preparing the Remote Control ...14 Loading/Ejecting a disc...14 Loading a disc ...14 Ejecting a disc...14 Operation ...15 Basic Operation ...15...

  • Page 4: Safety Information

    SAFETY INFORMATION CAUTION: MOBILE DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS MOBILE DVD PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE THE MOBILE DVD PLAYER CORRECTLY AS INSTRUCTED.

  • Page 5: Disc Notes

    DISC NOTES Disc formats supported by this player 12 cm disc Video CD 12 cm disc 12 cm disc 12 cm disc Discs which cannot be played with this player • DVD-ROM • DVD-R/DVD-RAM • CDV • CD-G Handling and Cleaning •...

  • Page 6: Installation

    INSTALLATION Notes: • Choose the mounting location where the unit will not interfere with the normal driving function of the driver. • Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly.
  • Page 7 INSTALLATION 6. Mount the sleeve by inserting the sleeve into the opening of the dashboard and bend open the tabs located around the sleeve with a screwdriver. Not all tabs will be able to make contact, so examine which ones will be most effective.
  • Page 8 INSTALLATION DIN REAR-MOUNT (Method B) If your vehicle is a Nissan, Toyota, follow these mounting instructions. Use the screw holes marked T (Toyota), N (Nissan) located on both sides of the unit to fasten the unit to the factory radio mounting brackets supplied with your vehicle.

  • Page 9: Using The Detachable Front Panel

    USING THE DETACHABLE FRONT PANEL REMOVING THE FRONT PANEL 1. Press the release button on the front panel and pull off the front panel. Release Button Front Panel 2. Keep front panel into the case. Protective Case Front Panel INSTALLING THE FRONT PANEL To install the front panel, insert the panel into the housing and make sure the panel is properly installed.

  • Page 10: Wiring Connection

    WIRING CONNECTION XM AUDIO CABLE(BLACK) AUDIO R IN (RED) AUDIO L IN (WHITE) XM RECEIVER CONNECTOR (BLACK) ANTENNA CONNECTOR NOTE: MUTE WHILE TELEPHONING If your unit is connected to a mobile telephone through the telephone mute line, the car radio’s volume will be muted as soon as you “pick up” the telephone.

  • Page 11: Location And Function Of Keys

    LOCATION AND FUNCTION OF KEYS THE PLAYER 1. PWR (power button) 2. DISP 3. EQ 5. Disc Slot 6. MOD(SW) 8. Liquid Crystal Display 9. ENT/MUT 10. SEL 11. VOLUME 12. VOLUME 13. BND/MEN When remove the front panel: 25. LED 14.

  • Page 12: Remote Control

    LOCATION AND FUNCTION OF KEYS REMOTE CONTROL...
  • Page 13 LOCATION AND FUNCTION OF KEYS POWER Press POWER to turn the unit ON or OFF. 2. SMART In DVD mode, press it shortly to enter SMART MODE function. 3. A-B A-B repeat allows a passage to be repeated continuously. 4. ANGLE Changing of the view angle on multi-angle DVD disc.

  • Page 14: Remote Control

    REMOTE CONTROL Preparing the Remote Control Inserting the Batteries 1. Open the battery compartment cover. 2. Insert the new battery. Make sure that the positive and negative terminals of the battery are oriented as indicated. 3. Close the cover. Battery: a button cell lithium battery (CR2025 3V) Using the Remote Control Point the remote control towards the...

  • Page 15: Operation

    OPERATION BASIC OPERATION SWITCHING ON/OFF THE UNIT Press any button on the front panel (except button and button) or POWER button on the remote control to turn on the unit. When the unit is on, press PWR button on the front panel or POWER button on the remote control to turn off the unit.

  • Page 16: Radio Operation

    OPERATION RADIO OPERATION SWITCHING TO RADIO MODE Press MOD on the front panel or MODE on the remote control to select radio mode, the radio mode appears in the display together with the memory band and frequency. SELECTING THE FREQUENCY BAND During radio mode, shortly press BND/MEN button on the front panel or BAND (MENU) button on the remote...

  • Page 17: Disc (Dvd/Vcd/Cd/Mp3) Operation

    OPERATION channel will be held at that preset number and played about 5 seconds. After that, it will search for another available channel. STORING PRESET CHANNELS The preset buttons can be used to store 6 channels for convenient access to your favorite channels.
  • Page 18 OPERATION during play. Each timEach time the button is pressed, the speed of slow changes according to the according to the disc as follow. FOR DVD: Normal Playback FOR VCD: Normal Playback PAUSE PLAYING Pressing on the remote control or on the front panel during playback will stop play temporary.

  • Page 19: On-Screen Display Function

    OPERATION “SHUFFLE ON” on the screen. Then press button to start SHUFFLE playback. Press SHF button or SHUFFLE button again in stop mode, “SHUFFLE OFF” appears and release the mode. PREVIEWING PLAYING (ONLY FOR VCD/CD/MP3) Press SCN button on the front panel to play first several seconds of each track on the current disc.
  • Page 20 OPERATION (2) Press DISPLAY for the second time: SINGLE REMAIN 00:03:15 01/13 (3) Press DISPLAY for the third time: TOTAL ELAPSED 00;00:25 01/13 (4) Press DISPLAY for the fourth time: TOTAL REMAIN 00:40:35 01/13 (5) Press DISPLAY for the fifth time: The message on the screen will be cleared.

  • Page 21: Menu Function

    OPERATION MONO LEFT MONO RIGHT MENU FUNCTION Press BND/MEN button on the DVD unit or BND (MENU) b remote control while the disc is playing and the disc menu will be displayed. You can navigate with the remote control navigation keys and select a feature the ENT/MUT button on the DVD unit on the remote control.

  • Page 22: Av In Operation

    OPERATION For example: SMART NAVI ROOT CD01 MP3 001 PLUMT CD02 MP3 002 RZID CD03 MP3 003 ASCIS CD04 MP3 004 DCYI CD05 MP3 005 BFZ DISC In stop mode, use remote control to select the item or folder (such as CD01, CD02...), and press ENT/MUT button on DVD unit or OK button on the remote control to confirm, then select the desired track (such as...

  • Page 23: Setup

    SETUP INITIAL SETUP SETUP MENU --- MAIN PAGE GENERAL SETUP SPEAKER SETUP AUDIO SETUP PREFERENCES EXIT SETUP 1. Press SETUP on the remote control or on the DVD unit in the stop mode.(Press the stop button twice to ensure that the player is in STOP mode.) 2.
  • Page 24 SETUP --- GENERAL PAGE --- TV DISPLAY PIC MODE AUTO ANGLE MARK HI-RES OSD LANG N-FLICKER CAPTIONS SCR SAVER MAIN PAGE PIC mode setup Select AUTO, the player PIC mode will depend on DVD disc. Select HI-RES format for best image resolution.

  • Page 25: Speaker Setup

    SETUP --- GENERAL PAGE --- TV DISPLAY PIC MODE ANGLE MARK OSD LANG CAPTIONS SCR SAVER MAIN PAGE SCR SAVER setup Select the SCR SAVER ON/OFF. SPEAKER SETUP --- SPEAKER SETUP PAGE --- DOWNMIX LT/RT STEREO MAIN PAGE This is to activate the audio output from DOLBY AC3 5.1 DOWNMIX to 2 channel mode.

  • Page 26: Preferences Setup

    SETUP --- AUDIO SETUP --- SPDIF OP MODE LPCM OUTPUT DYNAMIC LPCM 48K LPCM 96K MAIN PAGE LPCM OUTPUT Selecting LPCM (Line Pause Code Modulation) OUTPUT between LPCM 48K and LPCM 96K. The higher the sampling frequency is, the better the output audio quality is. It is recommended to select LPCM 96K.
  • Page 27 SETUP --- PREFERENCES PAGE --- TV TYPE AUDIO ENGLISH SUBTITLE FRENCH DISC MENU SPANISH PARENTAL CHINESE PASSWORD JAPANESE DEFAULTS GERMAN SMART NAV ITALIAN LOGO PORTUGUESE MAIN PAGE SUBTITLE language setup Select the preferred SUBTITLE language by using the cursor buttons. --- PREFERENCES PAGE --- TV TYPE AUDIO...

  • Page 28: Smart Nav

    SETUP --- PREFERENCES PAGE --- TV TYPE AUDIO SUBTITLE DISC MENU PARENTAL PASSWORD DEFAULTS RESET SMART NAV LOGO MAIN PAGE DEFAULTS Select reset to revert to factory initial settings. --- PREFERENCES PAGE --- TV TYPE AUDIO SUBTITLE DISC MENU PARENTAL PASSWORD DEFAULTS NO MENU...

  • Page 29: Defaults Table

    SETUP DEFAULTS TABLE General Setup TV Display PIC Mode Angle Mark OSD Language English Captions SCR Saver Speaker Setup Downmix Audio Setup SPDIF OP Mode Dynamic LPCM Output LPCM 96K Preferences TV Type Audio Subtitle DISC Menu Parental Password Smart NAV Logo Normal/LB AUTO...

  • Page 30: Trouble Shooting

    TROUBLE SHOOTING If it appears that your DVD unit is faulty, first consult this checklist. It may be that something simple has been overlooked. Under no circumstances should you try to repair the player yourself, as this will invalidate the warranty. Only qualified service personnel can remove the cover or service this player.

  • Page 31: Specifications

    Power Supply Requirements Chassis Dimensions Tone Controls - Bass (at 100 Hz) - Treble (at 10 KHz) Maximum Output Power Current Drain DVD PLAYER Signal to Noise Ratio Channel Separation Frequency Response RADIO Frequency Coverage Sensitivity (S/N = 30 dB)
  • Page 32 SPECIFICATIONS Supply voltage: Discs played: Note: Specifications and design are subject to modification, without notice, due to improvements in technology. CAUTION: • To avoid electric shock, this unit must not be exposed to dripping water or water splash. • Minimum distances around the apparatus for sufficient ventilation. •...
