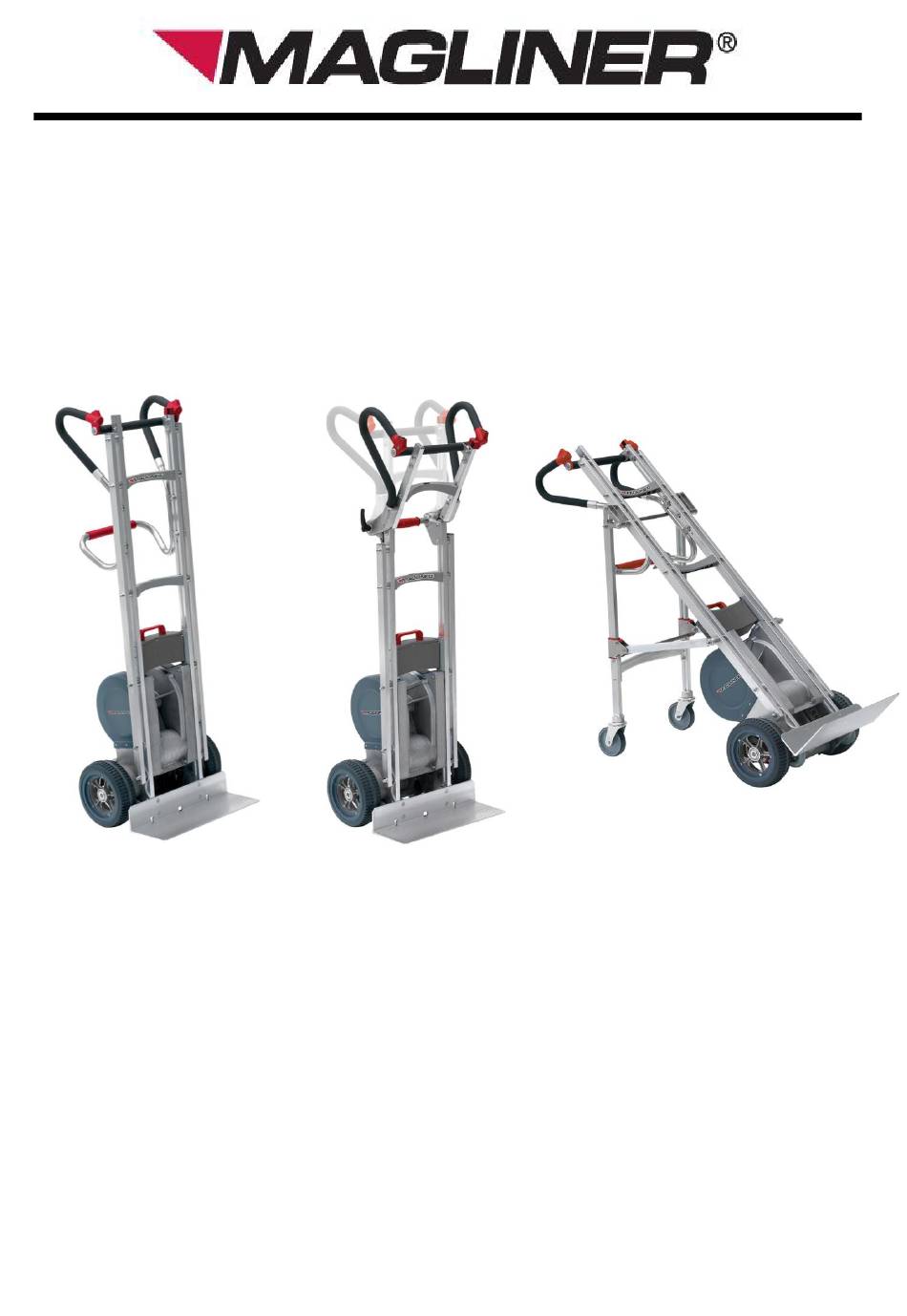

- Page 1 HD Powered Stair Climbing Hand Truck Operator’s Manual Magline, Inc. 1205 W. Cedar Street Standish, MI 48658 Tel: 800-MAGLINE (624-5463) Outside US and Canada: +1 989-512-1000 Fax: +1 989-803-5941 Web: www.magliner.com E-mail: customerservice@magliner.com...
-
Page 2: Table Of Contents
Contents 1. INTRODUCTION AND KEY FEATURES ............3 1.1. General safety guidelines ......................3 1.2 Built-in safety features (depending on model) ................4 1.3 Technical data ..........................5 1.4. Technical data of quick-change battery unit ................5 2. CONTROL FEATURES ................. 6 2.1. -
Page 3: Introduction And Key Features
1 INTRODUCTION AND KEY FEATURES Congratulations! Thank you for purchasing the Magliner HD Powered Stair Climbing Hand Truck. You have chosen a unit especially designed for carrying loads of up to 725 lbs. using the very latest stair climber technology for negotiating different types of steps and stairs safely and efficiently. -
Page 4: Built-In Safety Features (Depending On Model)
1.2 Built-in safety features (depending on model) Fold model: Before each use, make sure that the quick release lever (Figure 2, page 7) on the handles is tightened properly. It must be possible to tilt the load from the standing position without assistance. The position of the handle section in relation to the frame must not be altered. -
Page 5: Technical Data
1.3 Technical data Uni - Fold - Dolly Load capacity 725 lbs. Maximum climbing speed with full load 9-10 steps/min Maximum step height 8.25 in Weight Model (incl. Battery pack) HD UNI 84 lbs. HD-Fold 86 lbs. HD-Dolly 97 lbs. 1.4. -
Page 6: Control Features
2. Control features 2.1. HDL360U - UNI model UP/DOWN Switches Control Unit Handles Quick-Change Battery Pack Climbing Mechanism Main Wheels Nose Plate Figure 1 Page 6... -
Page 7: Fold Model
2.2. HDL360F - Fold model UP/DOWN switches Handles Control Unit Quick Release Quick-Change Battery Pack Climbing Mechanism Main Wheels Nose Plate Figure 2 Page 7... -
Page 8: Dolly Model
2.3. 4W - 4th Wheel Attachment (Option for Uni and Fold models) Fixing Hook Sliding 4th Wheel Attachment Support Wheels Main Wheels Figure 3 Page 8... -
Page 9: Control Unit
2.4. Control unit Speed Selector ON/OFF Multifunction Key (P) (Figure 4) 2.4.1. ON/OFF and Single-Step/Continuous mode multi-function switch (P) The HD Powered Stair Climbing Hand Truck is ready for operation after the battery pack has been switched on (ON/OFF switch on power pack) and you briefly press button P. -
Page 10: Speed Switch
IMPORTANT: Keep pressing the UP/DOWN switch in Single-Step mode until the HD Stair Climbing Hand Truck reaches the next step and stops automatically. Then release the switch. Pressing the switch again starts the unit on its next movement cycle. If the switch is released by mistake during a cycle, simply press the UP/DOWN button again to continue the movement. -
Page 11: Up/Down Switch On Handlebar
2.5. UP/DOWN switch on handlebar With an UP/DOWN switch (Q) located both on the left and right of the handlebar (Figure 5), this unit is ideal for both left- and right-handed operators. UP/DOWN switches (Q) DOWN Figure 5 (UP/DOWN switch) Page 11... -
Page 12: Main Switch
2.6. Main switch The main switch is located on the quick-change battery pack. The power supply to the unit can be switched off safely using the main switch (Figure E). Figure E 2.7. Switching off The unit can be switched off in the following ways: ... -
Page 13: Removing Battery Pack
Fitting and removing quick-change battery pack Fitting battery pack 3.1. First position Corner A in Hook B. Gently press battery pack forwards swiftly. The battery pack clicks into place. Set switch on battery pack to ON and your HD Powered Stair Climbing Hand Truck is ready for operation. -
Page 14: Operation
4. Operation Climbing UP stairs 4.1. Fit battery pack, switch main switch to ON, press briefly on multi-function switch P until the LED display goes permanently green (Single-Step mode, refer to Section 2.4.1.), or flashes green (Continuous mode). The HD Powered Stair Climbing Hand Truck is now ready for operation. Pressing one of the UP/DOWN switches Q (Figure 5, page 11, left and right of handlebar, arrow upwards points towards operator) starts moving the lift arm with the support wheels and lifts the unit onto the next step. -
Page 15: The Hd Powered Stair Climbing Hand Truck Is Not A Rubber Mat
4.2.2. The HD Powered Stair Climbing Hand Truck is not a rubber mat! Never throw a load onto the HD Powered Stair Climbing Hand Truck. We recommend that this kind of loading method is avoided because it causes higher wear and may damage the unit’s control unit as a result of vibrations. -
Page 16: Automatic Switch-Off After Extended Period Of No Operation
NOTE: It is a good idea to deactivate the brake system on uneven ground because bumps or dips in the ground would otherwise cause the main wheels to be stopped if one of both of the edge brakes were activated. IMPORTANT: Make sure that the system is switched on again before starting each movement downwards to the next step. -
Page 17: How To Test The Step Edge Braking System
5.4 How to test the step edge braking system Correct functioning of the step edge braking system is essential for safe operation of the stair climbing system. It is therefore essential that you check the function of the step edge braking system each time before you use the stair climbing system. -
Page 18: Charging The Quick-Change Battery Pack
6. Charging the quick-change battery pack The lead gel cells inside the battery pack are maintenance-free, gas-tight and rechargeable. Their service life depends largely on the charging/discharging cycles. For example, it is possible to partially discharge lead batteries 1000 times, drawing more than 200 times the full capacity of the battery, providing the battery is never fully discharged. -
Page 19: Charger Unit
Charger unit 6.1. The battery charger supplied is extremely powerful thanks to an automatic 2-stage system and digital control technology. The first stage is quick charging and the second stage is for maintaining the charge. You can also check whether the battery pack is charged or not. Features clear LCD display and pivoting mains adapter. -
Page 20: Safety Systems - Technical Data
Compensation charging When the battery pack is fully charged the charger switches go compensation charging mode. The display shows the battery symbol with 4 bars. If the charging procedure does not start there are two possible causes: Display: Symbols flash alternately ... battery is connected the wrong way round Display: Symbols... -
Page 21: Safety Regulations
What to do after a safety shutdown: 1. Disconnect the charger from the mains 2. Disconnect the charger from the battery pack 3. Contact your Magliner dealer or Magline Customer Service Technical data Mains voltage supply (50/60 Hz, +/-15 %) -
Page 22: Accessories And Options
7. Accessories and options A full range of accessories and options is available. The list includes various sizes of toe plate, add-on toe plates with castors, safety belts, vehicle chargers for charging in transit, and much more. Please ask your dealer. 8. -
Page 23: Ce Declaration Of Conformity
9. CE declaration of conformity SANO Transportgeraete GmbH declares that the LIFTKAR HD stairclimber fully complies with the relevant health and safety specifications laid down in the EU directive for machines 2006/42/EG, appendix IIA. Any changes made to the product without our prior consent render this declaration void. Jochum Bierma (Ing.), Managing Director ©Copyright 2019 Magline, Inc.
