Magliner GEMINI XL Assembly Instructions

Magliner GEMINI XL Assembly Instructions

Hide thumbs Also See for GEMINI XL:

Advertisement

Quick Links

Assembly Instructions
Table of Contents:
Parts List ...................................2
Assembly Instructions ..............3
Warranty Information .............4
www.magliner.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the GEMINI XL and is the answer not in the manual?

Questions and answers

Summary of Contents for Magliner GEMINI XL

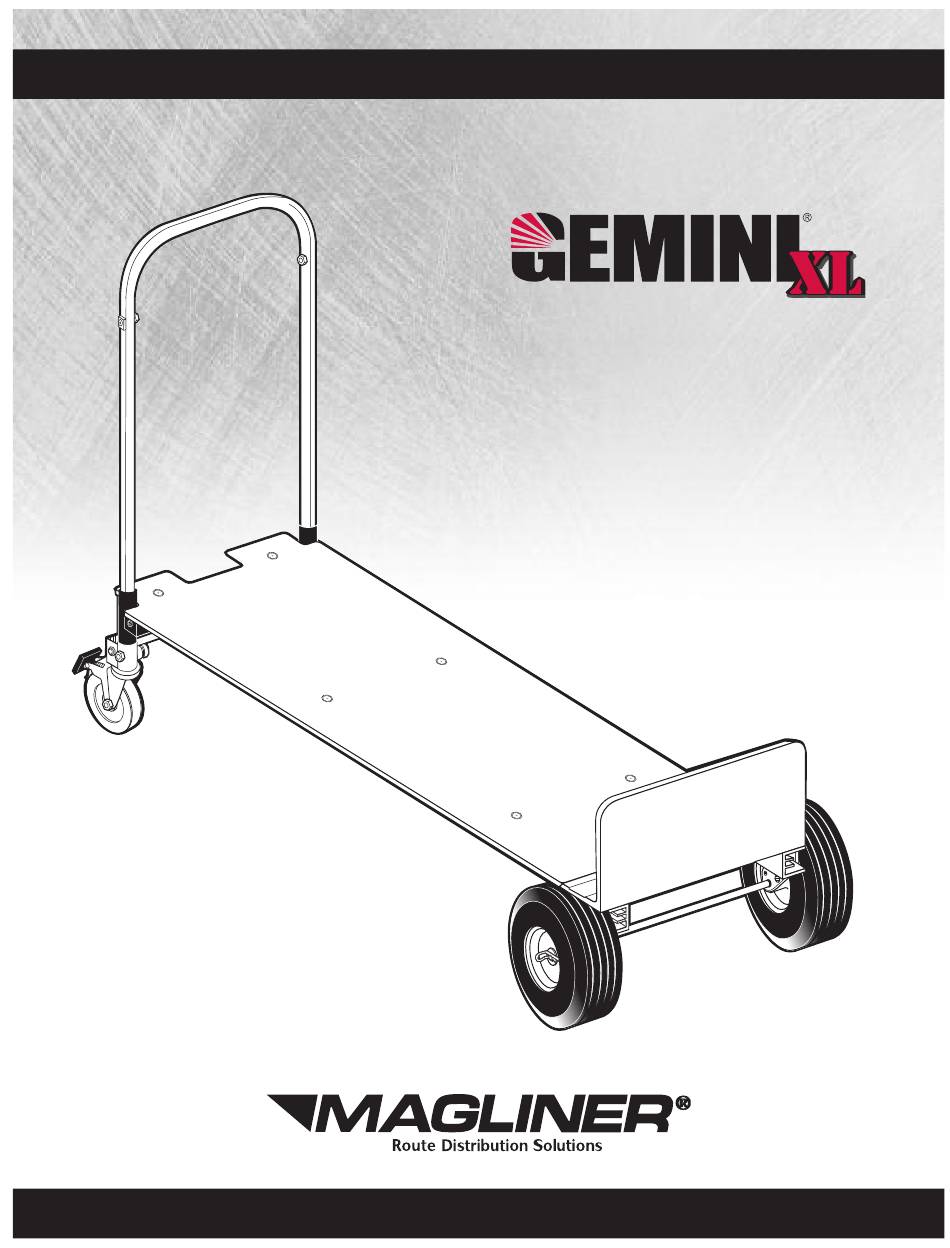

  • Page 1 Assembly Instructions Table of Contents: Parts List ........2 Assembly Instructions ....3 Warranty Information .....4 www.magliner.com...
  • Page 2 PARTS LIST ITEM DESCRIPTION QTY. PART NO. TOOLS REQUIRED Hardware Pack 85981 consists of items below: • (2) 1/2” COMBINATION Square Neck Carriage Bolt, 5/16-18 X 1" Lg. 80144 WRENCH Nylon Top Lock Nut, 5/16-18 80676 • (1) 5/8” COMBINATION Hex Head Bolt, 7/16-14 X 3-3/4"...
  • Page 3 ASSEMBLE THE NOSE AND WHEELS TO THE FRAME STEP 1: Nose Assembly Note: for easier assembly it may be necessary to lay the truck horizontally to attach the nose. Position the nose (K) on the mounting brackets so the square holes align with each other. Insert one (1) square neck carriage bolt (A), with head of bolt toward the front of the nose plate, in each of the four (4) holes.
  • Page 4 WARRANTY INFORMATION Magline One-Year Limited Warranty Magliner products have a one (1) year warranty from the date of purchase against defects in workmanship or material. Any part or component, except items covered by warranties of other manufacturers, returned to the factory or service center freight prepaid by the owner, found upon examination by Magline, Inc.
