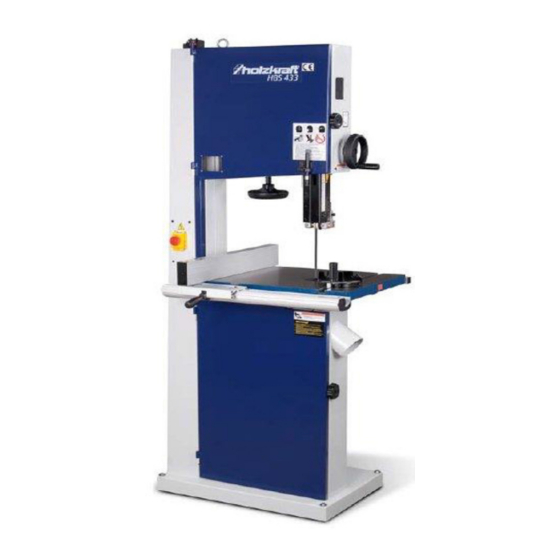

holzkraft HBS 351 Operating Instructions Manual

holzkraft HBS 351 Operating Instructions Manual

Wood band saws
Hide thumbs Also See for HBS 351:

Advertisement

Operating instructions
Wood band saws
HBS 351
HBS 430
HBS 431
HBS 433
HBS 533
HBS 433

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HBS 351 and is the answer not in the manual?

Questions and answers

Summary of Contents for holzkraft HBS 351

  • Page 1 Operating instructions Wood band saws HBS 351 HBS 430 HBS 431 HBS 433 HBS 533 HBS 433...
  • Page 2: Table Of Contents

    Publication details Contents 1 Introduction .............3 Product identification 1.1 Copyright ............3 Wood band saw Article number 1.2 Customer service..........3 HBS 351 5153501 1.3 Disclaimer............3 HBS 430 5154300 2 Safety................3 HBS 431 5154301 2.1 Legend of symbols ..........3...
  • Page 3: Introduction

    All data in these operating instructions has been com- You have made an excellent choice in purchasing a piled on the basis of the state-of-the-art, valid standards Holzkraft wood band saw. and guidelines as well as our many years of expertise and experience.
  • Page 4: Operator Responsibility

    Safety Operator's duties WARNING! If the wood band saw is used for commercial purposes, This combination of symbol and signal term indi- the operator of the wood band saw is subject to the le- cates potentially hazardous situations which may gal stipulations in terms of occupational safety.
  • Page 5: Personnel Requirements

    Safety 2.3 Personnel requirements 2.4 Personal protective equipment Personal protective equipment is intended to protect the Qualifications health and safety of persons at work. Staff must wear the The different tasks described in these operating instruc- personal protective equipment indicated in individual tions require different levels of skills in terms of the qual- sections of these operating instructions when carrying ifications of operating staff working with the machine.
  • Page 6: General Safety Instructions

    Safety 2.5 General safety instructions - Keep the machine and your work environment clean at all times. Ensure sufficient illumination. - Always secure the workpiece when working with suitable clamping equipment. Ensure a sufficient NOTE! support surface. Observe the regulations applicable in the country of - The machine's design must not be changed;...
  • Page 7: Special Safety Instructions For Wood Band Saws

    Safety 2.7 Special safety instructions for wood band 2.9 Safety labels on the wood band saw saws The following safety identifications are attached to the wood band saw (Fig. 1) and must be observed. - When sawing round timber, clamp the workpiece to prevent it rotating.
  • Page 8: Intended Use

    Intended use Intended use The on the wood band saw is designed for sawing wood and wood replacements with edges, and for hard plas- tics that are machined in a similar way. Round materials may only be cut with a suitable holding device. With the aid of the pivoting work table and a mitre stop, mitre cuts up to 45°...
  • Page 9: Technical Data

    Technical data Technical data Model HBS 351 HBS 430 HBS 431 HBS 433 HBS 533 Article number 5153501 5154300 5154301 5154303 5155303 Work table dimen- 495 x 356 mm 610 x 431 mm 610 x 431 mm 610 x 431 mm...
  • Page 10: Delivery, Packaging And Storage

    Delivery, packaging and storage Delivery, packaging and storage 6.1 Accessories Extraction units 5.1 Delivery To reduce the dust and wood particle emissions in your Check the wood band saw for visible transport damage work area, order one of our extraction units along with upon delivery.
  • Page 11: Controls

    Assembly and setting up 6.2 Controls Saw band clamping head Upper rotary lock Saw band height adjustment Saw band guide Angle adjustment Extraction port Lower rotary lock Chassis Lower front door Rip fence with quick clamping Guide rail rip fence Emergency stop and ON/OFF switch Top front door Quick clamping lever saw band clamping...
  • Page 12 Assembly and setting up Assembled band saw Machines with 400 V electric motor Connecting the machine to the power supply: The band saw is delivered to you in almost fully-assem- bled condition. - make sure that the power supply has the same characteristics (voltage, mains frequency, phase On the worktable, remove the locking pin (2) and the ta- position) as the motor.
  • Page 13: Operation

    Operation Operation 8.1 Electrical connection DANGER! DANGER! Risk of fatal injury through electric shock! Risk of fatal injury through electric shock! There is a risk of fatal injury on touching live compo- There is a risk of fatal injury on touching live compo- nents.
  • Page 14 Operation 8.2.2 0° position of worktable To quickly reset to 0° position of the worktable, the table is equipped with an adjusting screw (1). Use the handwheel (2) to adjust the table's angle after releasing the clamping lever. Set the worktable to 0°. Check the setting by measuring the angle between the worktable and the saw band with a protractor.
  • Page 15 Operation Step 2: The screw (2) for adjusting the saw band run is located at the rear centre of the machine. This IMPORTANT! button is used to adjust the run. The saw band The saw blades must be de-tensioned if you will not run setting must be adjusted with the front panel be using the band saw for a longer period of time.
  • Page 16 Operation 8.2.7 Adjusting the saw blade guide 8.2.8 Adjusting the saw band speed Step 1 Disconnect the machine from the power sup- IMPORTANT! ply. Only adjust the upper and lower saw band guides Step 2 Release the drive belt by loosening the clamp- after adjusting and checking the blade tension and ing screw on the motor.
  • Page 17 Operation 8.2.10Extraction port Step 7 Make sure that all screws on the switch hous- ing are tightly fastened. For connection to an extraction system, your band saw is equipped with one or two extraction ports (2) with a 8.2.12Use and assembly of the laser diameter of 120 mm depending on the type.
  • Page 18: Mitre Stop

    Operation For all cutting actions, move the upper band guide as In combination with an angled table, the operator can close as possible to the workpiece. This ensures the thus perform double mitre cuts. Hold the workpiece best possible cut quality and operator safety. Always firmly against the fence on the cross-cutting gauge and guide the workpiece with both hands and keep it flat on flat against the table.
  • Page 19: Maintenance And Repairs

    Maintenance and repairs Saw band parameters: NOTE! Softwood, aspen, Hardwood Do not remove the chips with your bare hands. There poplar is a risk of injuries through sharp edged or pointed Rake angle [°] 13 - 16 8 - 10 chips! Tooth height 5.5 - 6.5...
  • Page 20: Troubleshooting

    Troubleshooting 10 Troubleshooting Malfunction Possible causes Elimination The engine does not start up 1. No mains power 1. Connect the device to the power supply 2. Connecting cable is defective 2. Call in a qualified electrician to 3. Fuse is defective check the power supply.
  • Page 21: Spare Parts

    Spare parts 12 Spare parts Example You need to order the motor for the wood band saw. The DANGER! motor is item number 82 in spare parts drawing 1. Risk of injury caused by the use of incor- rect spare parts! - Machine type: Wood band saw HBS 533 The use of incorrect or faulty spare parts may cause - Article number: 5155303...
  • Page 22 Spare parts 12.2 Spare parts drawings The following drawings of the HBS series are intended to identify the required spare parts in the event of service. When ordering, send a copy of the parts drawing including the highlighted components to your authorised retailer. Spare parts drawing 1 (HBS 430 / HBS 431 / HBS 433 / HBS 533) Fig.
  • Page 23 Spare parts Fig. 10: Spare parts drawing HBS 430 / HBS 431 / HBS 433 / HBS 533 HBS series | Version 2.03...
  • Page 24 Spare parts 12.3 Spare parts drawing 2 (HBS 351) Fig. 11: Spare parts drawing HBS 351 HBS series | Version 2.03...
  • Page 25 Spare parts Fig. 12: Spare parts drawing HBS 351 HBS series | Version 2.03...
  • Page 26: Wiring Diagram

    Wiring diagram 13 Wiring diagram Fig. 13: Wiring diagram HBS series wood band saw HBS series | Version 2.03...
  • Page 27: Eu Declaration Of Conformity

    ® Holzkraft woodworking machines Product group: HBS 351 / HBS 430 / HBS 431 / HBS 433 / HBS 533 Machine designation: 5153501 / 5154300 / 5154301 / 5154303 / 5155303 Article number: Wood band saw...
  • Page 28 www.holzkraft.de...
