3. If necessary, wipe fluids from the proximal ends of the Leads.
4. Insert the Leads into the OR Cable Connector. See instructions on page 3.

Insert the Leads into the OR Cable Connector

You can insert the Leads into the OR Cable Connector with the steering cap on or off.

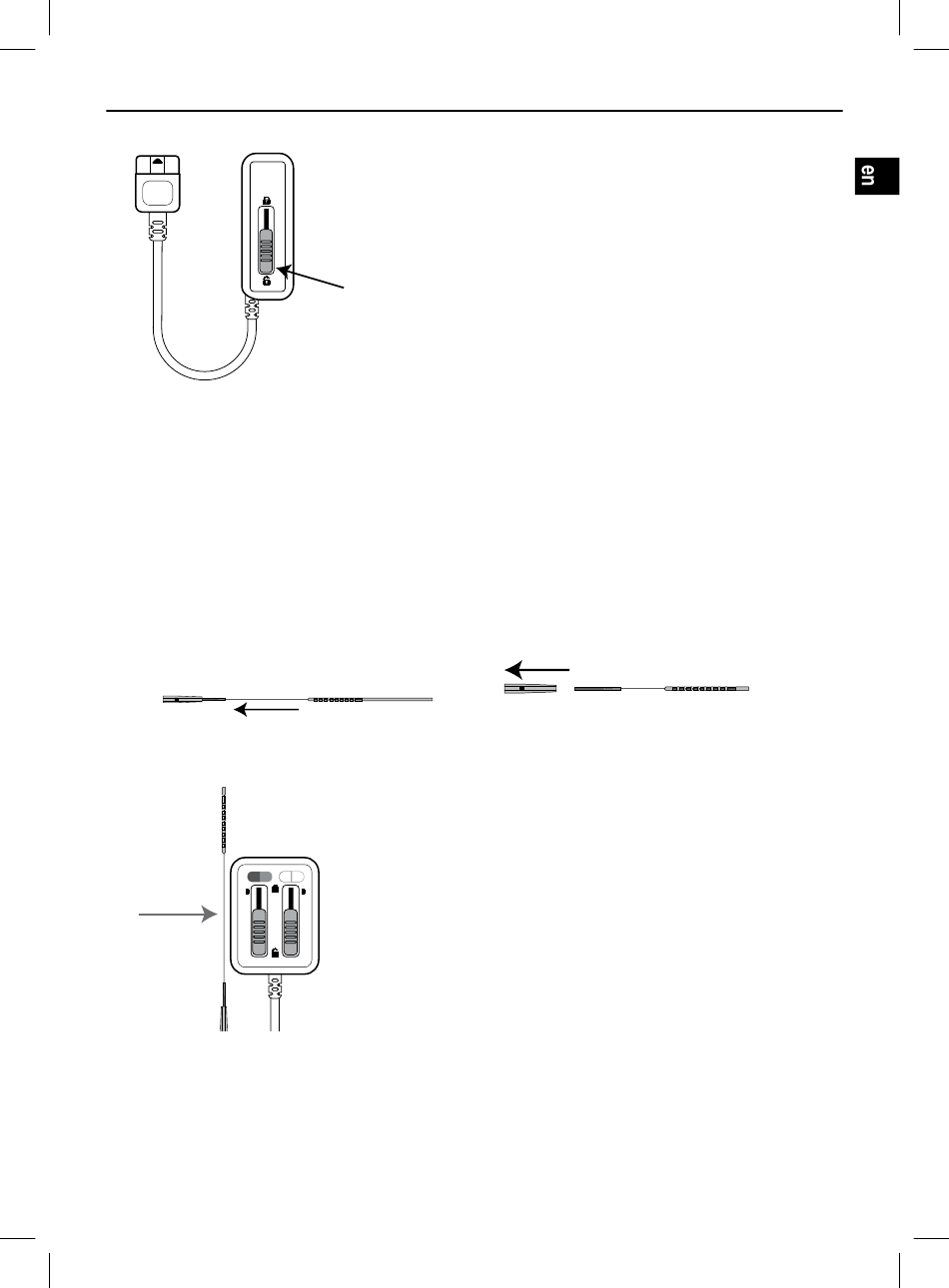

1. To insert the Lead with the steering cap
on:
a. Pull the stylet out slightly.
Steering Cap Stylet
Steering Cap Stylet
b. Slide the stylet through the side
slot in the OR Cable connector.
A C B
Slide
Slide
2. Insert the Lead into the port of the OR Cable connector until it stops.
Locking Lever in
Locking Lever in
the open position
the open position
Lead
Lead
D
1. To insert the Lead with the steering cap
off, remove the steering cap from the
stylet.
