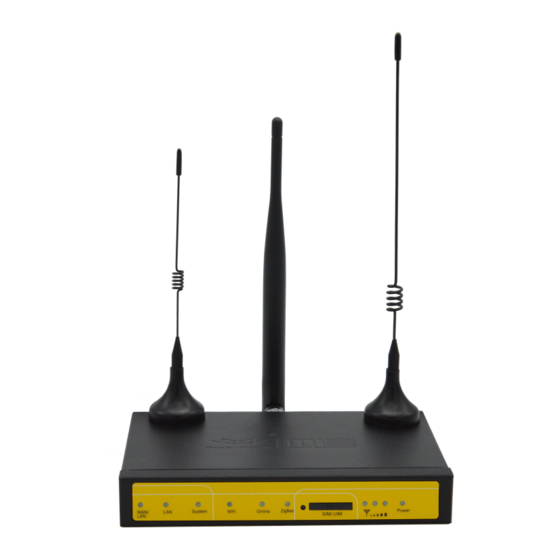

Four-Faith F8 26 Series User Manual
  1. Manuals
  2. Brands
  3. Four-Faith Manuals
  4. Network Router
  5. F8 26 Series
  6. User manual

Four-Faith F8 26 Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
F8X26 Series Router
User Manual
F8X26 Series Router User Manual
Product Version
V2.0.0
Product Name：
F8X26
Page
Total:
92

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F8 26 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Four-Faith F8 26 Series

Summary of Contents for Four-Faith F8 26 Series

  • Page 1 Product Version Page F8X26 Series Router User Manual V2.0.0 Product Name： Total: F8X26 F8X26 Series Router User Manual...
  • Page 2 F8X26 Series Router User Manual Files Revised Record Date Version Remark Author 2015-3-24 1.00 F8x26 ZigBee Router 2017-10-10 V2.0.0 Change of company address...

  • Page 3: Copyright Notice

    Four-Faith Communication Technology Co., Ltd. Without written permission, all commercial use of the files from Four-Faith are forbidden, such as copy, distribute, reproduce the files, etc., but non-commercial purpose, downloaded or printed by individual (all files shall be not revised, and the copyright and other proprietorship notice shall be reserved) are welcome.
  • Page 4 F8X26 Series Router User Manual Note: There may be different components and interfaces in different model,please in kind prevail.
  • Page 5 F8X26 Series Router User Manual Contents Contents Contents...............................5 Contents Chapter 1 Brief Introduction of Product..................... 7 1.1 General..........................7 1.2 Features and Benefits......................7 1.3 Working Principle......................9 1.4 Specifications........................9 Chapter 2 Installation Introduction....................14 2.1 General..........................14 2.2 Encasement List....................... 14 2.3 Installation and Cable Connection...................14 2.4 Power..........................18 2.5 Indicator Lights Introduction...................
  • Page 6 F8X26 Series Router User Manual 3.3.7.1 Port Forwarding.................... 58 3.3.7.2 Port Range Forward..................59 3.3.7.3 DMZ......................60 3.3.8 QoS Setting......................60 3.3.8.1 Basic......................60 3.3.8.2 Classify......................62 3.3.9 Applications......................62 3.3.9.1 Serial Applications..................62 3.3.9.2 ZigBee Application..................64 3.3.10 Administration......................66 3.3.10.1 Management....................66 3.3.10.2 Keep Alive....................68 3.3.10.3 Commands....................

  • Page 7: Chapter 1 Brief Introduction Of Product

    User Manual F8X26 Series Router Chapter 1 Brief Introduction of Product 1.1 General F8X26 series ROUTER is a kind of cellular terminal device that provides data transfer function by public cellular network. Also, it supports ZigBee function. It adopts high-powered industrial 32-bits CPU and embedded real time operating system. It supports RS232 (or RS485/RS422), Ethernet and WIFI port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial, Ethernet and WIFI devices with only basic configuration.
  • Page 8 User Manual F8X26 Series Router  Antenna port: lightning protection(optional) Standard and Convenience  Support standard RS232(or RS485/RS422), Ethernet and WIFI port that can connect to serial, Ethernet and WIFI devices directly  Support standard WAN port and PPPOE protocol that can connect to ADSL directly ...

  • Page 9: Working Principle

    User Manual F8X26 Series Router 1.3 Working Principle The principle chart of the router is as following: Cellular Module Embedded processing DATA Interface system ZigBee Module User interface RS232 10/100M 1 ports Power WIFI Indicator switch lights 1.4 Specifications Cellular Specification ITEM CONTENT F8126 ZigBee+GPRS WIFI Router...
  • Page 10 User Manual F8X26 Series Router UMTS: 384Kbps TX power <24dBm RX sensitivity <-109dBm F8626 ZigBee+EVDO WIFI Router Standard and CDMA2000 1X EVDO Rev A 800MHz, 800/1900MHz(optional), Band 450MHz(optional) CDMA2000 1X EVDO Rev B 800/1900MHz(optional) CDMA2000 1X RTT, IS-95 A/B Bandwidth EVDO Rev.
  • Page 11 User Manual F8X26 Series Router TD-HSPA+: Download speed 4.2Mbps, Upload speed 2.2Mbps EVDO Rev. A: Download speed 3.1Mbps, Upload speed 1.8Mbps TX power <23dBm RX sensitivity <-97dBm ZigBee Specification Item Content ZigBee Module Industrial ZigBee Platform Standard and IEEE 802.15.4 Band ISM 2.4~2.5 GHz Indoor/Urban...
  • Page 12 User Manual F8X26 Series Router Interface Type Item Content WAN/LAN WAN/LAN configurable; 1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection 1 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection Serial 1 RS232(or RS485/RS422) port, 15KV ESD protection Data bits: 5, 6, 7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, space(optional), mark(optional)
  • Page 13 User Manual F8X26 Series Router Communication 230~249mA@12VDC F8426 ZigBee+WCDMA WIFI ROUTER Standby 184~213mA@12VDC 335~442mA@12VDC Communication F8626 ZigBee+EVDO WIFI ROUTER Standby 174~206mA@12VDC Communication 324~438mA@12VDC F8726 ZigBee+LTE/TD-SCMA WIFI ROUTER Standby 169~182mA@12VDC Communication 340~515mA@12VDC F8826 ZigBee+LTE/WCDMA WIFI ROUTER Standby 169~182mA@12VDC Communication 340~515mA@12VDC F8A26 ZigBee+LTE WIFI ROUTER Standby 168~179mA@12VDC Communication...

  • Page 14: Chapter 2 Installation Introduction

    User Manual F8X26 Series Router Chapter 2 Installation Introduction 2.1 General The router must be installed correctly to make it work properly. Warning: Forbid to install the router when powered! 2.2 Encasement List Name Quantity Remark Router host Cellular antenna (Male SMA) WIFI antenna (Female SMA) ZigBee antenna (Female SMA) Network cable...

  • Page 15: Installation Of Sim/Uim Card

    User Manual F8X26 Series Router Router Size Note: Use M3 screw to make Router and stator fixed. The length of screw should be 3~4mm. Installation of SIM/UIM card: Firstly power off the Router, and press the out button of the SIM/UIM card outlet with a needle object.

  • Page 16: Installation Of Antenna

    User Manual F8X26 Series Router Installation of antenna: Screw the SMA male pin of the cellular antenna to the female SMA interface of the Router with sign “ANT”. Screw the SMA male pin of the ZigBee antenna to the female SMA interface of the router with sign “ZigBee”.
  • Page 17 User Manual F8X26 Series Router Installation of cable:（install it when RS232 is used） Insert the RJ45 end of the console cable into console interface, and insert the DB9F end of the console cable into the RS232 serial interface of user’s device. The signal connection of the console cable is as follows: Console line definition (RS232) RJ45...

  • Page 18: Indicator Lights Introduction

    User Manual F8X26 Series Router 2.4 Power The power range of the Router is DC 5~36V. Warning: When we use other power, we should make sure that the power can supply power above 8W. We recommend user to use the standard DC 12V/1.5A power. 2.5 Indicator Lights Introduction The Router provides following indicator lights: "WAN/LAN ", "LAN", "System", "WIFI", "...

  • Page 19: Reset Button Introduction

    User Manual F8X26 Series Router Router is powered off or in the shutdown period of schedule boot&shutdown System BLINK System works properly System does not work Online Router has logged on network Router hasn’t logged on network ZigBee ZigBee is active ZigBee is not active The corresponding interface of network is not connected...

  • Page 20: Chapter 3 Configuration And Management

    User Manual F8X26 Series Router Chapter 3 Configuration and Management This chapter describes how to configure and manage the router. 3.1 Configuration Connection Before configuration, you should connect the router and your configuration PC with the supplied network cable. Plug the cable’s one end into the Local Network port of the router, and another end into your configure PC’s Ethernet port.
  • Page 21 User Manual F8X26 Series Router After access to the information main page Users need to input user name and password if it is their first time to login.

  • Page 22: Management And Configuration

    User Manual F8X26 Series Router Input correct user name and password to visit relevant menu page. Default user name is admin, password is admin. (available to modify user name and password on management page, then click submit) 3.3 Management and configuration 3.3.1 Setting The Setup screen is the first screen users will see when accessing the router.
  • Page 23 User Manual F8X26 Series Router Forbid the setting of WAN port connection type 3G/UMTS/4G/LTE dhcp-4G User Name: login users' ISP(Internet Service Provider) Password: login users' ISP Dial String: dial number of users' ISP APN: access point name of users' ISP PIN: PIN code of users' SIM card Connection type Connection type: Auto, Force 3G, Force 2G, Prefer 3G, Prefer 2G options.
  • Page 24 User Manual F8X26 Series Router None: do not set this function Ping: Send ping packet to detect the connection, when choose this method, users should also configure "Detection Interval", "Primary Detection Server IP" and "Backup Detection Server IP" items. Route: Detect connection with route method, when choose this method, users should also configure "Detection Interval", "Primary Detection Server IP"...
  • Page 25 User Manual F8X26 Series Router to avoid the hyperplasia and infinite circulation of a message in the loop network Optional Configuration Router Name: set router name Host Name: ISP provides Domain Name: ISP provides MTU: auto (1500) and manual (1200-1492 in PPPOE/PPTP/L2TP mode, 576-16320 in other modes) Router Internal Network Settings Router IP...
  • Page 26 User Manual F8X26 Series Router DHCP Type: DHCP Server and DHCP Forwarder Enter DHCP Server if set DHCP Type to DHCP Forwarder as blow: DHCP Server: keep the default Enable to enable the router's DHCP server option. If users have already have a DHCP server on their network or users do not want a DHCP server, then select Disable Start IP Address: enter a numerical value for the DHCP server to start with when issuing IP...
  • Page 27 DNS service, which allows them to register their domain to their IP address, and will forward traffic directed at their domain to their frequently-changing IP address. DDNS Service: Four-Faith router currently support DynDNS, freedns, Zoneedit, NO-IP, 3322, easyDNS, TZO, DynSIP and Custom based on the user.
  • Page 28 User Manual F8X26 Series Router User Name: users register in DDNS server, up to 64 characteristic Password: password for the user name that users register in DDNS server, up to 32 characteristic Host Name: users register in DDNS server, no limited for input characteristic for now Type: depends on the server Wildcard: support wildcard or not, the default is OFF.

  • Page 29: Advanced Router

    User Manual F8X26 Series Router Clone MAC address can clone three parts: Clone LAN MAC, Clone WAN MAC, Clone Wireless MAC. Noted that one MAC address is 48 characteristic, can not be set to the multicast address, the first byte must be even. And MAC address value of network bridge br0 is determined by the smaller value of wireless MAC address and LAN port MAC address.
  • Page 30 User Manual F8X26 Series Router and which portion is the host portion Gateway: IP address of the gateway device that allows for contact between the router and the network or host. Interface: indicate users whether the Destination IP Address is on the LAN & WLAN (internal wired and wireless networks), the WAN (Internet), or Loopback (a dummy network in which one PC acts like a network, necessary for certain software programs) Show Routing Table...
  • Page 31 User Manual F8X26 Series Router 3.3.1.6 Networking Bridging-Create Bridge: creates a new empty network bridge for later use. STP means Spanning Tree Protocol and with PRIO users are able to set the bridge priority order. The lowest number has the highest priority. Bridging - Assign to Bridge: allows users to assign any valid interface to a network bridge.
  • Page 32 User Manual F8X26 Series Router Enter relewant bridge IP address and subnet mask, click 'Add' to create a bridge. Note: Only create a bride can apply it. Assign to Bridge option: to assign different ports to created bridge. For example: assign port (wireless port) is ra0 in br1 bridge as below: Prio means priority level: work if multiple ports are within the same bridge.
  • Page 33 User Manual F8X26 Series Router Port Setup: Set the port property, the default is not set Choose not bridge to set the port's own properties, detailed properties are as below: MTU: maximum transfer unit Multicast forwarding: enable or disable multicast forwarding Masquerade/NAT: enable or disable Masquerade/NAT IP Address: set ra0's IP address, and do not conflict with other ports or bridge Subnet Mask: set the port's subnet mask...
  • Page 34 User Manual F8X26 Series Router 3.3.2 Wireless 3.3.2.1 Basic Settings Wireless Network：“Eanble”, radio on. “Disable”, radio off. Wireless Mode：AP, Client, Adhoc, Repeater, Repeater Bridge four options。 Wireless Network Mode： Mixed：Support 802.11b, 802.11g, 802.11n wireless devices. BG-Mixed：Support 802.11b, 802.11g wireless devices. B-only：Only supports the 802.11b standard wireless devices.

  • Page 35: Network Configuration

    User Manual F8X26 Series Router Mixed：This mode is contrary to the green mode, but will reduce the throughput. Wireless Network Name(SSID): The SSID is the network name shared among all devices in a wireless network. The SSID must be identical for all devices in the wireless network. It is case-sensitive and must not exceed 32 alphanumeric characters, which may be any keyboard character.
  • Page 36 User Manual F8X26 Series Router 3.3.2.2 Wireless Security Wireless security options used to configure the security of your wireless network. This route is a total of seven kinds of wireless security mode. Disabled by default, not safe mode is enabled. Such as changes in Safe Mode, click Apply to take effect immediately.
  • Page 37 User Manual F8X26 Series Router WPA Personal/WPA2 Personal/WPA2 Person Mixed: ， TKIP/AES/TKIP+AES ， dynamic encryption keys. TKIP + AES, self-applicable TKIP or AES. WPA Person Mixed, allow WPA Personal and WPA2 Personal client mix. WPA Shared Key：Between 8 and 63 ASCII character or hexadecimal digits.。 Key Renewal Interval（in seconds）...
  • Page 38 User Manual F8X26 Series Router 3.3.3 Services 3.3.3.1 Services DHCP Server DHCPd assigns IP addresses to users local devices. While the main configuration is on the setup page users can program some nifty special functions here. Additional DHCPd Options: some extra options users can set by entering them DNSMasq DNSmasq is a local DNS server.
  • Page 39 User Manual F8X26 Series Router DHCP server IP range: dhcp-range=192.168.0.110,192.168.0.111,12h SNMP Location: equipment location Contact: contact this equipment management Name: device name RO Community: SNMP RO community name, the default is public, Only to read. RW Community: SNMP RW community name, the default is private, Read-write permissions SSHD Enabling SSHd allows users to access the Linux OS of their router with an SSH client SSH TCP Forwarding: enable or disable to support the TCP forwarding...
  • Page 40 User Manual F8X26 Series Router Net: the log information output to a syslog server Console: the log information output to console port Web: the log information output to web Remote Server: if choose net mode, users should input a syslog server’s IP Address and run a syslog server program on it.
  • Page 41 User Manual F8X26 Series Router Broadcast support: enable or disable broadcast support of PPTP server Force MPPE Encryption: enable of disable force MPPE encryption of PPTP data DNS1/DNS2/WINS1/WINS2: set DNS1/DNS2/WINS1/WINS2 Server IP: input IP address of the router as PPTP server, differ from LAN address Client IP(s): IP address assigns to the client, the format is xxx.xxx.xxx.xxx-xxx CHAP Secrets: user name and password of the client using PPTP service Note: client IP must be different with IP assigned by router DHCP.
  • Page 42 User Manual F8X26 Series Router Remote Subnet: the network of the remote PPTP server Remote Subnet Mask: subnet mask of remote PPTP server MPPE Encryption: enable or disable Microsoft Point-to-Point Encryption。 MTU: maximum Transmission Unit MRU: maximum Receive Unit NAT: network Address Translation Fixed IP: Tunnel IP enable Fixed IP Address: in the mode of the tunnel IP to take effect User Name: user name to login PPTP Server.
  • Page 43 User Manual F8X26 Series Router Gateway(L2TP Server): L2TP server’s IP Address or DNS Name Remote Subnet: the network of remote PPTP server Remote Subnet Mask: subnet mask of remote PPTP server MPPE Encryption: enable or disable Microsoft Point-to-Point Encryption MTU: maximum transmission unit MRU: maximum receive unit NAT: network address translation User Name: user name to login L2TP Server...
  • Page 44 User Manual F8X26 Series Router Config via: GUI----Page configuration, Config File----config File configuration Server mode: Router (TUN)-route mode, Bridge (TAP)----bridge mode Router (TUN): Network: network address allowed by OPENVPN server Netmask: netmask allowed by OPENVPN server Bridge (TAP): DHCP-Proxy mode: enable or disable DHCP-Proxy mode Pool start IP: pool start IP of the client allowed by OPENVPN server Pool end IP: pool end IP of the client allowed by OPENVPN server Gateway: the gateway of the client allowed by OPENVPN server...
  • Page 45 User Manual F8X26 Series Router Use LZO Compression: enable or disable use LZO compression for data transfer Redirect default Gateway: enable or disable redirect default gateway Allow Client to Client: enable or disable allow client to client Allow duplicate cn: enable or disable allow duplicate cn TUN MTU Setting: set the value of TUN MTU TCP MSS: MSS of TCP data TLS Cipher: TLS (Transport Layer Security) encryption standard supports AES-128 SHA and...
  • Page 46 User Manual F8X26 Series Router Additional Config: additional configurations of the server CCD-Dir DEFAULT file: other file approaches TLS Auth Key: authority key of Transport Layer Security Certificate Revoke List: configure some revoke certificates OPENVPN Client Server IP/Name: IP address or domain name of OPENVPN server Port: listen port of OPENVPN client Tunnel Device: TUN----Router mode, TAP----Bridge mode Tunnel Protocol: UDP and TCP protocol...
  • Page 47 User Manual F8X26 Series Router Use LZO Compression: enable or disable use LZO compression for data transfer NAT: enable or disable NAT through function Bridge TAP to br0: enable or disable bridge TAP to br0 Local IP Address: set IP address of local OPENVPN client TUN MTU Setting: set MTU value of the tunnel TCP MSS: mss of TCP data TLS Cipher: TLS (Transport Layer Security) encryption standard supports AES-128 SHA and...
  • Page 48 User Manual F8X26 Series Router 3.3.4.4 IPSEC Global settings Enable Nat-Traversal: Default opened Debug Level: Default None Connect Status and Control Show IPSEC connection and status of current router on IPSEC page. Name: the name of IPSEC connection Type: The type and function of current IPSEC connection Common name: local subnet, local address, opposite end address and opposite end subnet of current connection Status: connection status: closed, negotiating, establish...
  • Page 49 User Manual F8X26 Series Router Connection: this part contains basic address information of the tunnel Name: to indicate this connection name, must be unique Enabled: If enable, the connection will send tunnel connection request when it is reboot or re-connection, otherwise it is no need if disable Local WAN Interface: local addresss of the tunnel Remote Host Address: IP/domain name of end opposite;...
  • Page 50 User Manual F8X26 Series Router Enable Advanced Settings: enable to configure 1 and 2 phase information, otherwise it will automic negotiation according to opposite end IKE Encryption: IKE phased encryption mode IKE Integrity: IKE phased integrity solution IKE Grouptype: DH exchange algorithm IKE Lifetime: set IKE lifetime, current unit is hour, the default is 0 ESP Encryption: ESP encryption type ESP Integrity: ESP integrity solution...
  • Page 51 User Manual F8X26 Series Router Number：Switch on/off GRE tunnel app Status：Switch on/off someone GRE tunnel app Name：GRE tunnel name Through：The GRE packet transmit interface Peer Wan IP Addr：The remote WAN address Peer Subnet：The remote gateway local subnet, eg: 192.168.1.0/24 Peer Tunnel IP：The remote tunnel ip address Local Tunnel IP：The local tunnel ip address Local Netmask：Netmask of local network Keepalive：Enable or disable GRE Keepalive function...
  • Page 52 User Manual F8X26 Series Router anonymous Internet requests,ultimately enhance network security. Firewall Protection Firewall enhance network security and use SPI to check the packets into the network.To use firewall protection, choose to enable otherwise disabled. Only enable the SPI firewall, you can use other firewall functions: filtering proxy, block WAN requests, etc.
  • Page 53 User Manual F8X26 Series Router Limit ssh Access: This feature limits the access request from the WAN by ssh, and per minute up to accept two connection requests on the same IP. Any new access request will be automatically dropped. Limit Telnet Access: This feature limits the access request from the WAN by Telnet, and per minute up to accept two connection requests on the same IP.

  • Page 54: Access Restrictions

    User Manual F8X26 Series Router Outgoing Log: To see a temporary log of the Router's most recent outgoing traffic, click the Outgoing Log button. Click the Save Settings button to save your changes. Click the Cancel Changes button to cancel unsaved changes.
  • Page 55 User Manual F8X26 Series Router Access Policy: You may define up to 10 access policies. Click Delete to delete a policy or Summary to see a summary of the policy. Status: Enable or disable a policy. Policy Name: You may assign a name to your policy. PCs: The part is used to edit client list, the strategy is only effective for the PC in the list.
  • Page 56 User Manual F8X26 Series Router set up Internet access policy 1. Select the policy number (1-10) in the drop-down menu. 2. For this policy is enabled, click the radio button next to "Enable" 3. Enter a name in the Policy Name field. 4.

  • Page 57: Url Filter

    User Manual F8X26 Series Router 11. To create or edit additional policies, repeat steps 1-9. 12. To delete an Internet Access Policy, select the policy number, and click the Delete button. Note: 1） The default factory value of policy rules is "filtered". If the user chooses the default policy rules for "refuse", and editing strategies to save or directly to save the settings.

  • Page 58: Port Forwarding

    User Manual F8X26 Series Router Enable Packet Filter: Enable or disable “packet filter” function Policy: The filter rule’s policy, you can choose the following options Discard The Following--Discard packets conform to the following rules, Accept all other packets Only Accept The Following-- Accept only the data packets conform to the following rules, Discard all other packets Direction input: packet from WAN to LAN...

  • Page 59: Port Range Forward

    User Manual F8X26 Series Router whole range of ports, see Port Range Forwarding. Application: Enter the name of the application in the field provided. Protocol: Chose the right protocol TCP,UDP or Both. Set this to what the application requires. Source Net: Forward only if sender matches this ip/net (example 192.168.1.0/24). Port from: Enter the number of the external port (the port number seen by users on the Internet).

  • Page 60: Qos Setting

    User Manual F8X26 Series Router button to cancel your unsaved changes. 3.3.7.3 DMZ The DMZ (DeMilitarized Zone) hosting feature allows one local user to be exposed to the Internet for use of a special-purpose service such as Internet gaming or videoconferencing. DMZ hosting forwards all the ports at the same time to one PC.
  • Page 61 User Manual F8X26 Series Router Uplink (kbps)：In order to use bandwidth management (QoS) you must enter bandwidth values for your uplink. These are generally 80% to 90% of your maximum bandwidth. Downlink (kbps)： In order to use bandwidth management (QoS) you must enter bandwidth values for your downlink.

  • Page 62: Serial Applications

    3.3.9.1 Serial Applications There is a console port on Four-Faith router. Normally, this port is used to debug the router. This port can also be used as a serial port. The router has embedded a serial to TCP program. The data sent to the serial port is encapsulated by TCP/IP protocol stack and then is sent to the destination server.
  • Page 63 Enable Serial TCP Function: Enable the serial to TCP function Protocol Type: The protocol type to transmit data. UDP(DTU) – Data transmit with UDP protocol , work as a Four-Faith DTU which has application protocol and hear beat mechanism. Pure UDP – Data transmit with standard UDP protocol.
  • Page 64 User Manual F8X26 Series Router 3.3.9.2 ZigBee Application Enable ZigBee：Enable or disable ZigBee function ZigBee Baudrate: zigbee communicate baudrate Pan ID: zigbee communicate network id, input value must between 0~65535 Node Type: 3 kinds:Coordinator、Route、Terminal Node ID: input value must between 0~65535,the identification number for unique identification of the device itself Work Mode: 3 kinds, Broadcast、Master、API(Data format reference to Appendix A at the end of document)
  • Page 65 F8X26 Series Router Protocol Type: The protocol type to transmit data. UDP(DTU) – Data transmit with UDP protocol , work as a Four-Faith DTU which has application protocol and hear beat mechanism. Pure UDP – Data transmit with standard UDP protocol.
  • Page 66 User Manual F8X26 Series Router 3.3.10 Administration 3.3.10.1 Management The Management screen allows you to change the router's settings. On this page you will find most of the configurable items of the router code. The new password must not exceed 32 characters in length and must not include any spaces. Enter the new password a second time to confirm it.
  • Page 67 User Manual F8X26 Series Router Remote Access ： This feature allows you to manage the router from a remote location, via the Internet. To disable this feature, keep the default setting, Disable. To enable this feature, select Enable, and use the specified port (default is 8080) on your PC to remotely manage the router. You must also change the router's default password to one of your own, if you haven't already.
  • Page 68 User Manual F8X26 Series Router Device Management: Through the custom development of remote management server for the router monitoring and management, parameter configuration, etc.. Remote Management Login Server: Enable or disable remote logon selection service functionality 3.3.10.2 Keep Alive Schedule Boot&Shutdown The user can set the startup or shutdown time: For example,the user want to set the start time at 8:07 and boot time at 9:07.
  • Page 69 User Manual F8X26 Series Router Schedule Reboot You can schedule regular reboots for the router : Regularly after xxx seconds. At a specific date time each week or everyday. Note： For date based reboots Cron must be activated. See Management for Cron activation. 3.3.10.3 Commands Commands：You are able to run command lines directly via the Webinterface.

  • Page 70: Factory Defaults

    3.3.10.5 Firmware Upgrade Firmware Upgrade：New firmware versions are posted at www.four-faith.com and can be downloaded. If the Router is not experiencing difficulties, then there is no need to download a more recent firmware version, unless that version has a new feature that you want to use.
  • Page 71 User Manual F8X26 Series Router When you upgrade the Router's firmware, you lose its configuration settings, so make sure you write down the Router settings before you upgrade its firmware. To upgrade the Router's firmware: 1. Download the firmware upgrade file from the website. 2.
  • Page 72 User Manual F8X26 Series Router 3.3.11 Status 3.3.11.1 Router Router Name: name of the router, settingbasic setting to modify Router Model: model of the router, unavailable to modify Firmware Version: software version information MAC Address: MAC address of WAN, settingClone MAC Address to modify Host Name: host name of the router, settingbasic setting to modify WAN Domain Name: domain name of WAN, settingbasic setting to modify LAN Domain Name: domain name of LAN, unavailable to modify...
  • Page 73 User Manual F8X26 Series Router Inactive: not often used in a buffer or cache memory page file size IP Filter Maximum Ports: preset is 4096, available to re-management Active IP Connections: real time monitor active IP connections of the system, click to see the table as blow: Active IP Connections: total active IP connections Protocol: connection protocol...
  • Page 74 User Manual F8X26 Series Router Connection Uptime: connecting uptime; If disconnect, display Not available IP Address: IP address of router WAN Subnet Mask: subnet mask of router WAN Gateway: the gateway of router WAN DNS1, DNS2, DNS3: DNS1/DNS2/DNS3 of router WAN Remaining Lease Time: remaining lease time of IP address in DHCP way DHCP Release: release DHCP address DHCP Renew: renew IP address in DHCP way, default is 1 day...
  • Page 75 User Manual F8X26 Series Router Total Flow: flow from power-off last time until now statistics, download and upload direction Monthly Flow: the flow of a month, unit is MB Last Month: the flow of last month Next Month: the flow of next month Backup: backup data administration Restore: restore data administration Delete: delete data administration...
  • Page 76 User Manual F8X26 Series Router 3.3.11.3 LAN MAC Address: MAC Address of the LAN port ethernet IP Address: IP Address of the LAN port Subnet Mask: Subnet Mask of the LAN port Gateway: Gateway of the LAN port Local DNS: DNS of the LAN port Host Name: host name of LAN client IP Address: IP address of the client MAC Address: MAC address of the client...
  • Page 77 User Manual F8X26 Series Router Host Name: host name of LAN client IP Address: IP address of the client MAC Address: MAC address of the client Expires: the expiry the client rents the IP address Delete: click to delete DHCP client Interface: the interface assigned by dial-up system User Name: user name of PPPoE client Local IP: IP address assigned by PPPoE client...
  • Page 78 User Manual F8X26 Series Router Interface: the interface assigned by dial-up system User Name: user name of the client Local IP: tunnel IP address of PPTP client Remote IP: IP address of PPTP client Delete: click to delete PPTP client 3.3.11.4 Wireless MAC Address: MAC address of wireless client Radio: display whether radio is on or not...
  • Page 79 User Manual F8X26 Series Router MAC Address: MAC address of wireless client Interface: interface of wireless client Uptime: connecting uptime of wireless client TX Rate: transmit rate of wireless client RX Rate: receive rate of wireless client Signal: the signal of wireless client Noise: the noise of wireless client SNR: the signal to noise ratio of wireless client Signal Quality: signal quality of wireless client...
  • Page 80 User Manual F8X26 Series Router 3.3.11.5 Bandwidth Bandwidth Monitoring-LAN Graph abscissa axis: time vertical axis: speed rate Bandwidth Monitoring-WAN Graph abscissa axis: time vertical axis: speed rate...
  • Page 81 User Manual F8X26 Series Router Bandwidth Monitoring-Wireless (W10) Graph abscissa axis: time vertical axis: speed rate 3.3.11.6 Sys-Info Router Name: the name of the router Router Model: the model of the router LAN MAC: MAC address of LAN port WAN MAC: MAC address of WAN port Wireless MAC: MAC address of the wireless WAN IP: IP address of WAN port LAN IP: IP address of LAN port...
  • Page 82 User Manual F8X26 Series Router Radio: display whether radio is on or not Mode: wireless mode Network: wireless network mode SSID: wireless network name Channel: wireless network channel TX Power: reflection power of wireless network Rate: reflection rate of wireless network Received (RX): received data packet Transmitted (TX): transmitted data packet MAC Address: MAC address of wireless client...
  • Page 83 User Manual F8X26 Series Router DHCP Server: enabled or disabled ff-radauth: enabled or disabled USB Support: enabled or disabled Total Available: the room for total available of RAM (that is physical memory minus some reserve and the kernel of binary code bytes) Free: free memory, the router will reboot if the memory is less than 500kB Used: used memory, total available memory minus free memory Buffers: used memory for buffers, total available memory minus allocated memory...

  • Page 84: Appendix A Hyperterminal Use

    User Manual F8X26 Series Router Appendix A Hyperterminal Use The following steps describe how to setup Windows XP Hyper Terminal. 1. Press “Start””Programs””Accessories””Communications””Hyper Terminal” 2. Input connection name, choose “OK” 3. Choose the correct COM port which connects to modem, choose “OK” 4.
  • Page 85 User Manual F8X26 Series Router Flow control: None 5. Complete Hyper Terminal operation, It runs as following...

  • Page 86: Appendix B Api Accord Format

    User Manual F8X26 Series Router Appendix B API Accord Format API operation requires that communication with the module be done through a structured interface (data is communicated in frames in a defined order). The API specifies how commands, command responses and module status messages are sent and received from the module using a UART Data Frame.
  • Page 87 User Manual F8X26 Series Router Fields Sub field Offset Example Description 0xFE Length The length of data Command Send 64 5F Fixed to 64 5F Data State 00 = success, Others = error Frame check sequence AREQ: Fields Sub field Offset Example Description...
  • Page 88 User Manual F8X26 Series Router Fields Sub field Offset Example Description 0xFE Length The length of data Command Set 61 2A Fixed to 61 2A Data State 00 = success, Others = error Frame check sequence 4.4.3.4 OTA IO pin data acquisition SREQ Fields Sub field...
  • Page 89 User Manual F8X26 Series Router Frame check sequence 4.4.3.5 OTA Set remote node IO pin value Attention : IO pin is set digital output mode. SREQ: Fields Sub field Offset Example Description 0xFE Length The length of data Command Send 24 60 Fixed to 24 60 Data...
  • Page 90 User Manual F8X26 Series Router Fields Sub field Offset Example Description 0xFE Length The length of data Command Send 24 5D Fixed to 24 5D Data Destination 10 0E Destination node address Query Fixed to 02 command Frame check sequence SRSP Fields Sub field...
  • Page 91 User Manual F8X26 Series Router 00 4B 12 00 Frame check sequence SRSP: Fields Sub field Offset Example Description 0xFE Length The length of data Command Send 64 5C Fixed to 64 5C Data State 00 = success, Others = error Frame check sequence AREQ: Fields...
  • Page 92 User Manual F8X26 Series Router Data State 00 = success, Others = error Frame check sequence AREQ: Fields Sub field Offset Example Description 0xFE Length The length of data Command Send 44 5D Fixed to 44 5D Data State 00 = success, Others = error Destination 10 0E...
