Connecting the Cables

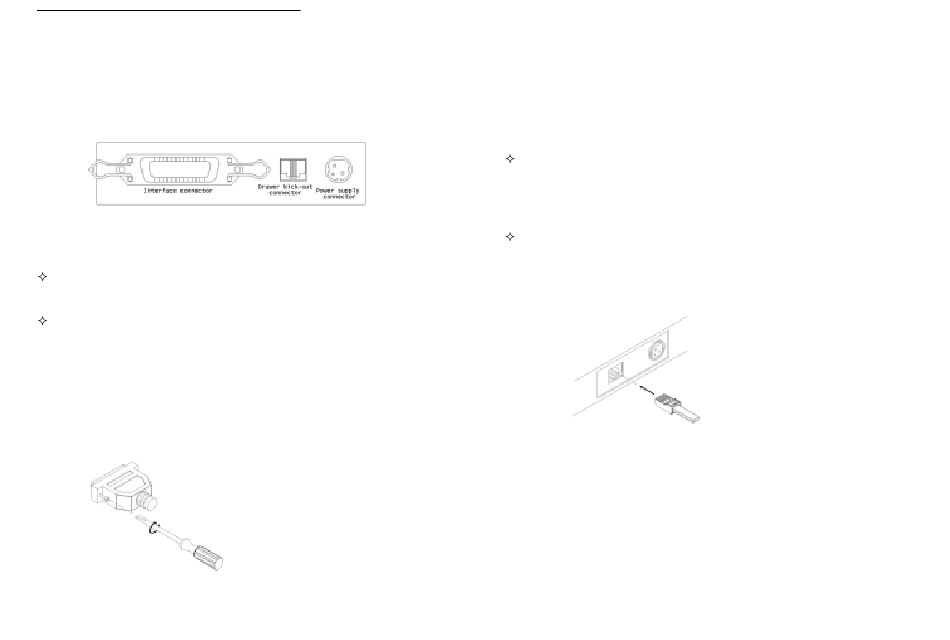

Please connect up to four cables to the printer. They all connect to the
connector panel on the back of the printer, which is shown below:
Notes:
There is a caution label above the drawer kick-out connector.
Depending on the interface installed, the interface connector on your
printer may look different from the one illustrated.
Before connecting any of the cables, make sure that both the printer
and the computer are turned off.
Connecting the computer
You need an appropriate interface cable.
1. Plug the cable connector securely into the printer's interface
connector.
2. If the printer has a serial interface, tighten the screws on both sides
of the cable connector.
1-2
If the printer ahs a parallel interface, squeeze the wire clip on the
printer together until they lock in place on both sides of the
connector.
3. Attach the other end of the cable to the computer.
Connecting the drawer
WARNING:
Use a drawer that matches the printer specification. Using an
improper drawer may damage the drawer as well as the printer.
CAUTION:
Do not connect a telephone line to the drawer kick-out connector;
otherwise the printer and the telephone line may be damaged.
Plug the drawer cable into the drawer kick-out connector on the
back of the printer next to the power supply connector.
